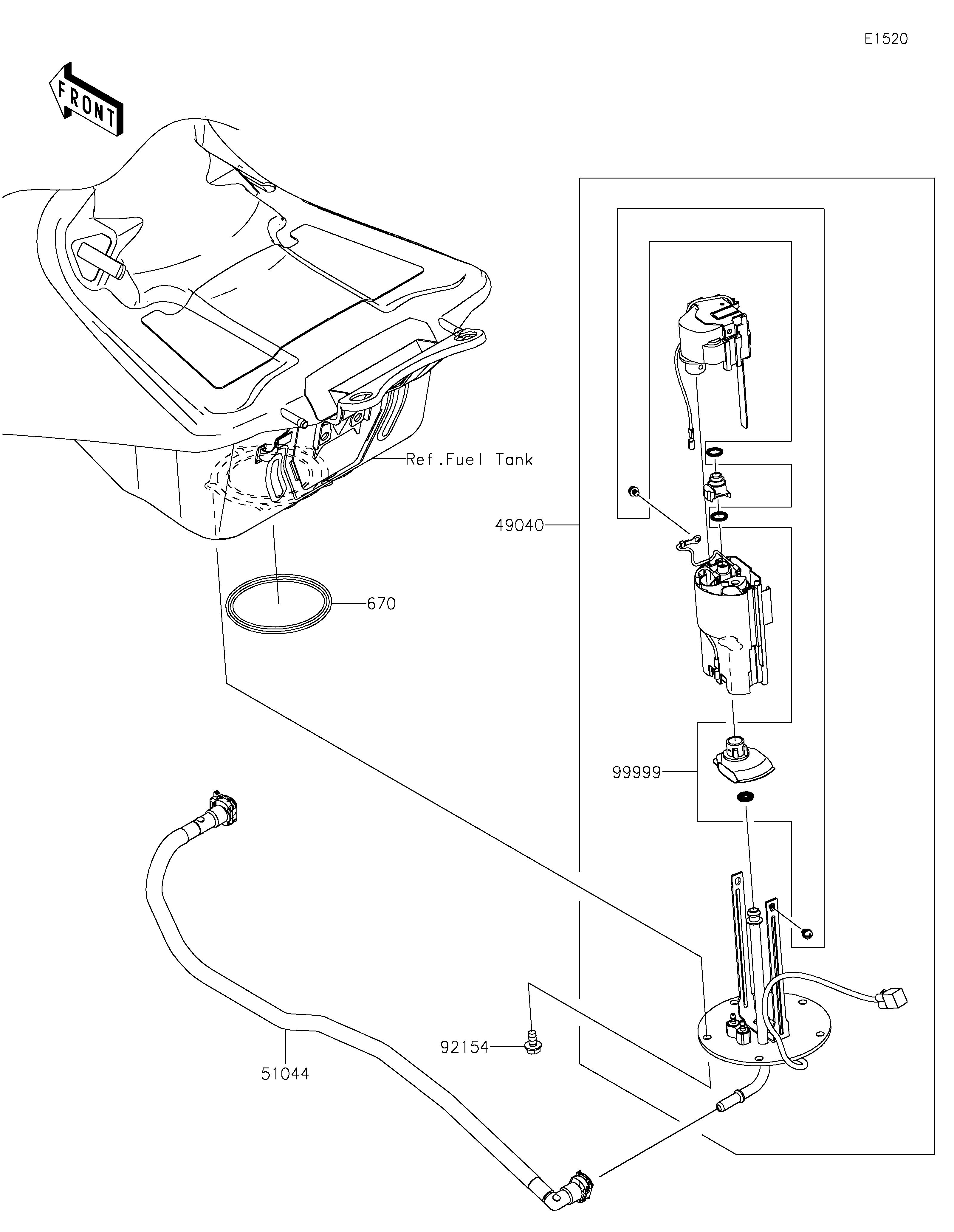

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

49040
51044
670
92154
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-FUEL 49040 49040-0024 1
TUBE-ASSY 51044 51044-0816 1
O RING 670 670E5075 1
BOLT,FLANGED,6X12 92154 92154-1848 5
KIT,FUEL FILTER 99999 99999-0521 1
