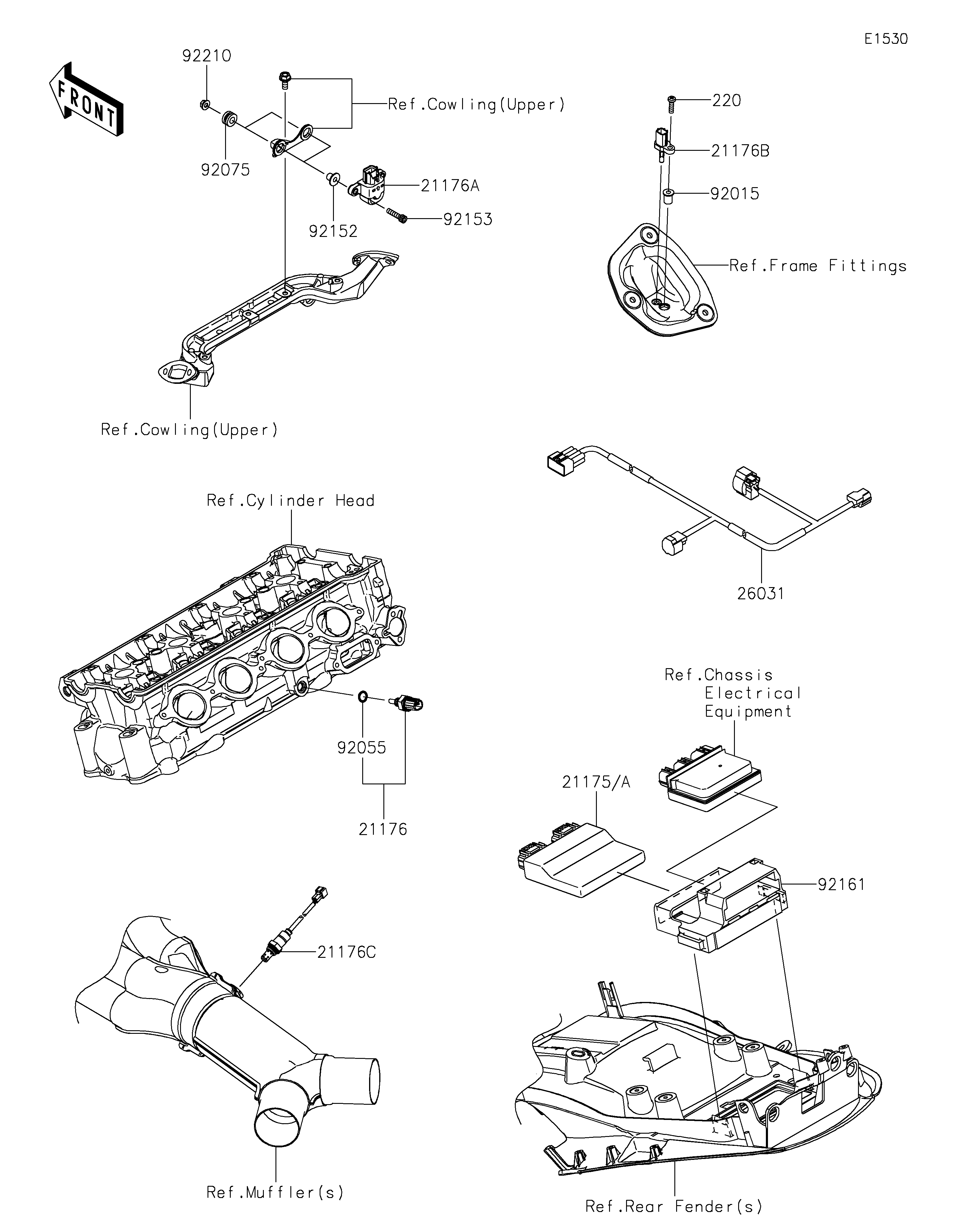

21175
21175A
21176
21176A
21176B
21176C
220
26031
92015
92055
92075
92152
92153
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1123 1 CN,US
CONTROL UNIT-ELECTRONIC 21175A 21175-1124 1 CA
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,OXYGEN 21176C 21176-0090 1
SCREW-PAN-CROS,5X18 220 220AB0518 1
HARNESS 26031 26031-1385 1
NUT,WELL,5MM 92015 92015-1757 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92075 92075-1912 2
COLLAR 92152 92152-0329 2
BOLT,SOCKET,5X22 92153 92153-1597 2
DAMPER,ECU 92161 92161-1805 1
NUT,FLANGED,5MM 92210 92210-0007 2
