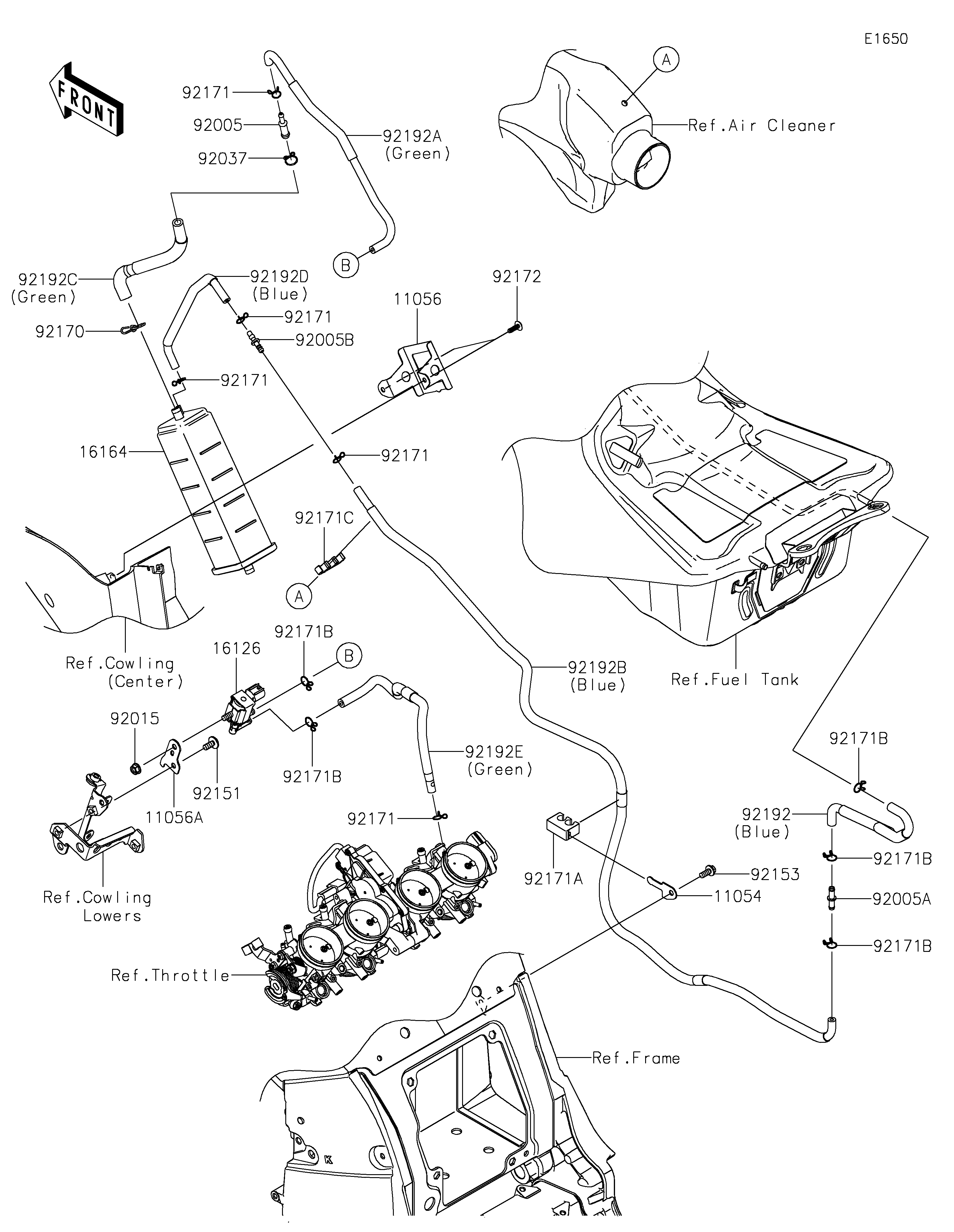

2019 NINJA® ZX™-14R ABS - Fuel Evaporative System(CA)
11054
11054
11056
11056
11056A
11056A
16126
16126
16164
16164
92005
92005
92005A
92005A
92005B
92005B
92015
92015
92037
92037
92151
92151
92153
92153
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
92171B
92171B
92171B
92171B
92171B
92171B
92171C
92171C
92172
92172
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192E
92192E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11054 | 11054-0464 | 1 | CA | |
| BRACKET,CANISTER | 11056 | 11056-1176 | 1 | CA | |
| BRACKET,SOLENOID VALVE | 11056A | 11056-1739 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| FITTING | 92005 | 92005-0032 | 1 | CA | |
| FITTING | 92005A | 92005-0721 | 1 | CA | |
| FITTING | 92005B | 92005-1206 | 1 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,12.5MM | 92037 | 92037-1271 | 1 | CA | |
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 1 | CA | |
| BOLT,FLANGED,6X14 | 92153 | 92153-1571 | 1 | CA | |
| CLAMP | 92170 | 92170-1695 | 1 | CA | |
| CLAMP | 92171 | 92171-0576 | 5 | CA | |
| CLAMP | 92171A | 92171-0693 | 1 | CA | |
| CLAMP | 92171B | 92171-0718 | 5 | CA | |
| CLAMP | 92171C | 92171-1213 | 1 | CA | |
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 2 | CA | |
| TUBE,TANK-CANISTER,BLUE | 92192 | 92192-0512 | 1 | CA | |
| TUBE,5X9.7X331,GREEN | 92192A | 92192-1056 | 1 | CA | |
| TUBE,4X9.2X1105,BLUE | 92192B | 92192-1058 | 1 | CA | |
| TUBE,CANISTER-VALVE,GREEN | 92192C | 92192-1152 | 1 | CA | |
| TUBE,4X9.2X240,BLUE | 92192D | 92192-1153 | 1 | CA | |
| TUBE,VALVE-THROTTLE,GREEN | 92192E | 92192-1166 | 1 | CA |
