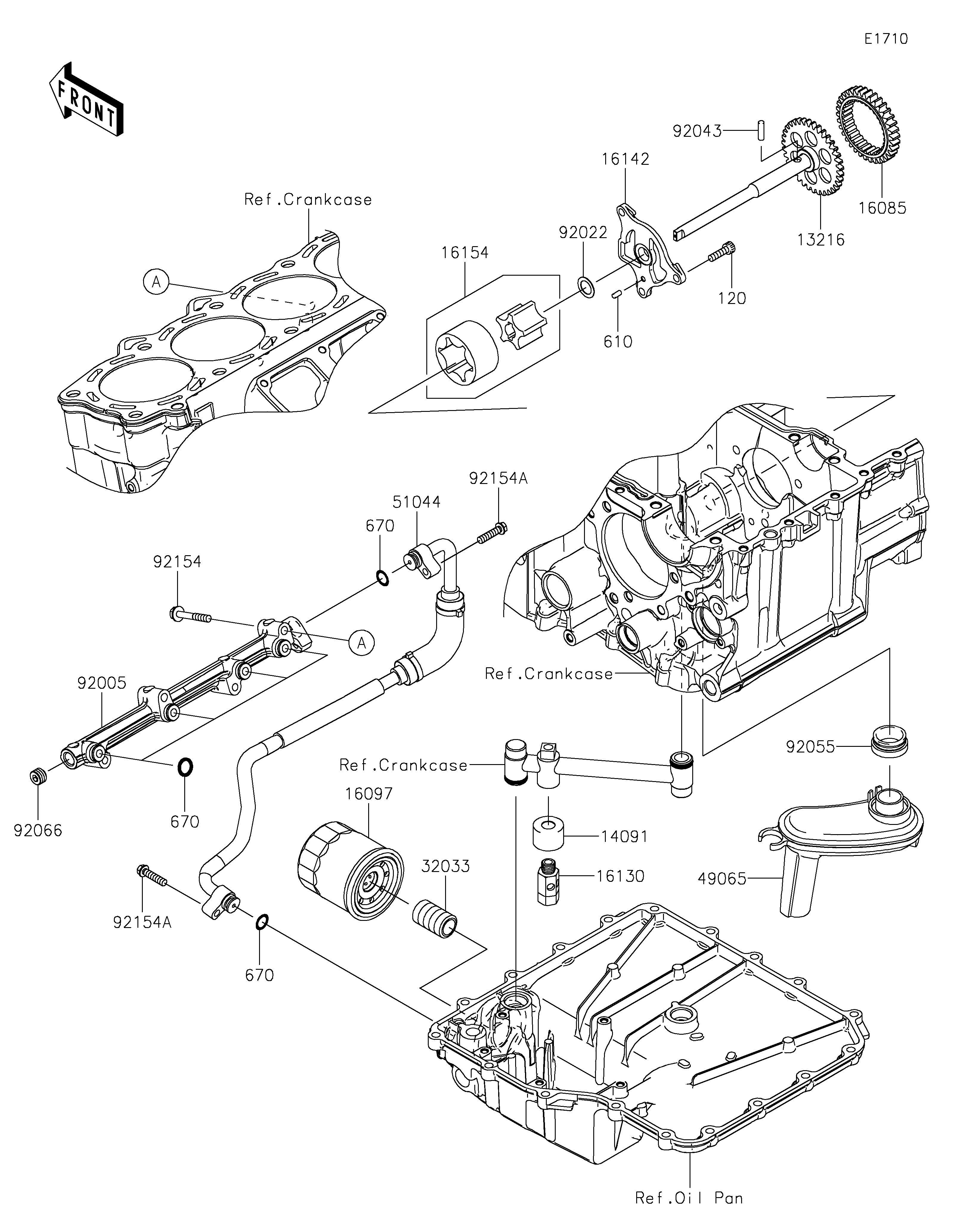

2019 NINJA® ZX™-14R ABS - Oil Pump/Oil Filter
120
13216
14091
16085
16097
16130
16142
16154
32033
49065
51044
610
670
670
670
92005
92022
92043
92055
92066
92154
92154A
92154A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X20 | 120 | 120CA0620 | 3 | ||
| GEAR-COMP,OIL COMP | 13216 | 13216-0030 | 1 | ||
| COVER,VALVE | 14091 | 14091-0497 | 1 | ||
| GEAR,34T | 16085 | 16085-0079 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-0008 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1059 | 1 | ||
| COVER-PUMP | 16142 | 16142-0027 | 1 | ||
| ROTOR-PUMP | 16154 | 16154-0047 | 1 | ||
| PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
| FILTER-OIL | 49065 | 49065-0014 | 1 | ||
| TUBE-ASSY | 51044 | 51044-0713 | 1 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 | ||
| O RING,11MM | 670 | 670D2011 | 6 | ||
| FITTING | 92005 | 92005-0752 | 1 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
| PIN,17.9X5.0 | 92043 | 92043-1444 | 1 | ||
| RING-O,OIL FILTER | 92055 | 92055-1503 | 1 | ||
| PLUG | 92066 | 92066-3778 | 1 | ||
| BOLT,FLANGED,6X40 | 92154 | 92154-1052 | 4 | ||
| BOLT,FLANGED,6X25 | 92154A | 92154-1849 | 2 |
| BOLT-SOCKET,6X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GEAR-COMP,OIL COMP | |
| REF # | 13216 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,VALVE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,34T | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-RELIEF | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP | |
| REF # | 16154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL FILTER | |
| REF # | 32033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-OIL | |
| REF # | 49065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,11MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,13.2X20X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,17.9X5.0 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,OIL FILTER | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X40 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
