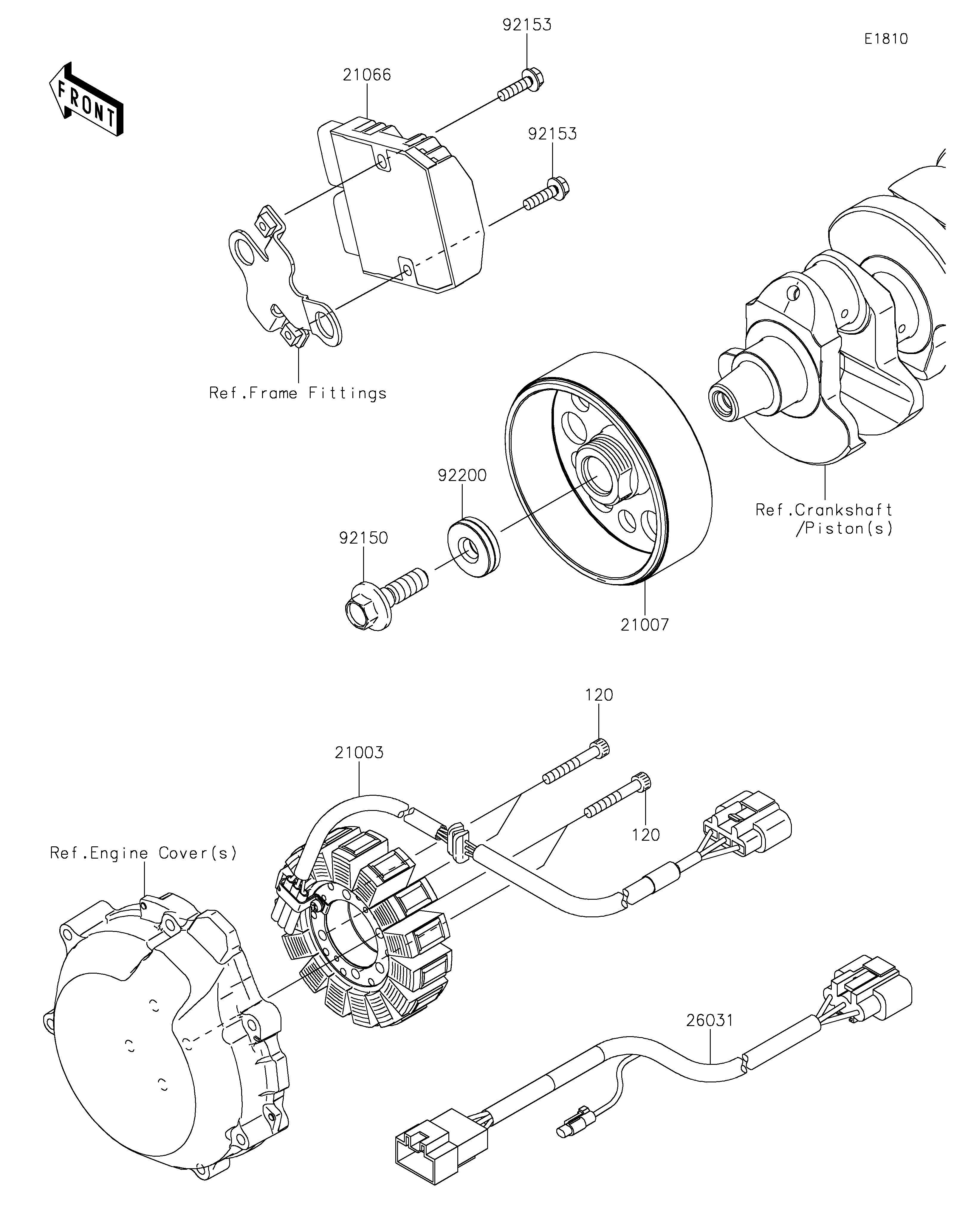

120
120
21003
21007
21066
26031
92150
92153
92153
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X40 120 120CA0640 4
STATOR 21003 21003-0144 1
ROTOR 21007 21007-0590 1
REGULATOR-VOLTAGE 21066 21066-0771 1
HARNESS 26031 26031-1546 1
BOLT,12X40 92150 92150-1717 1
BOLT,FLANGED,6X22 92153 92153-1598 2
WASHER,12X34X9 92200 92200-0369 1
