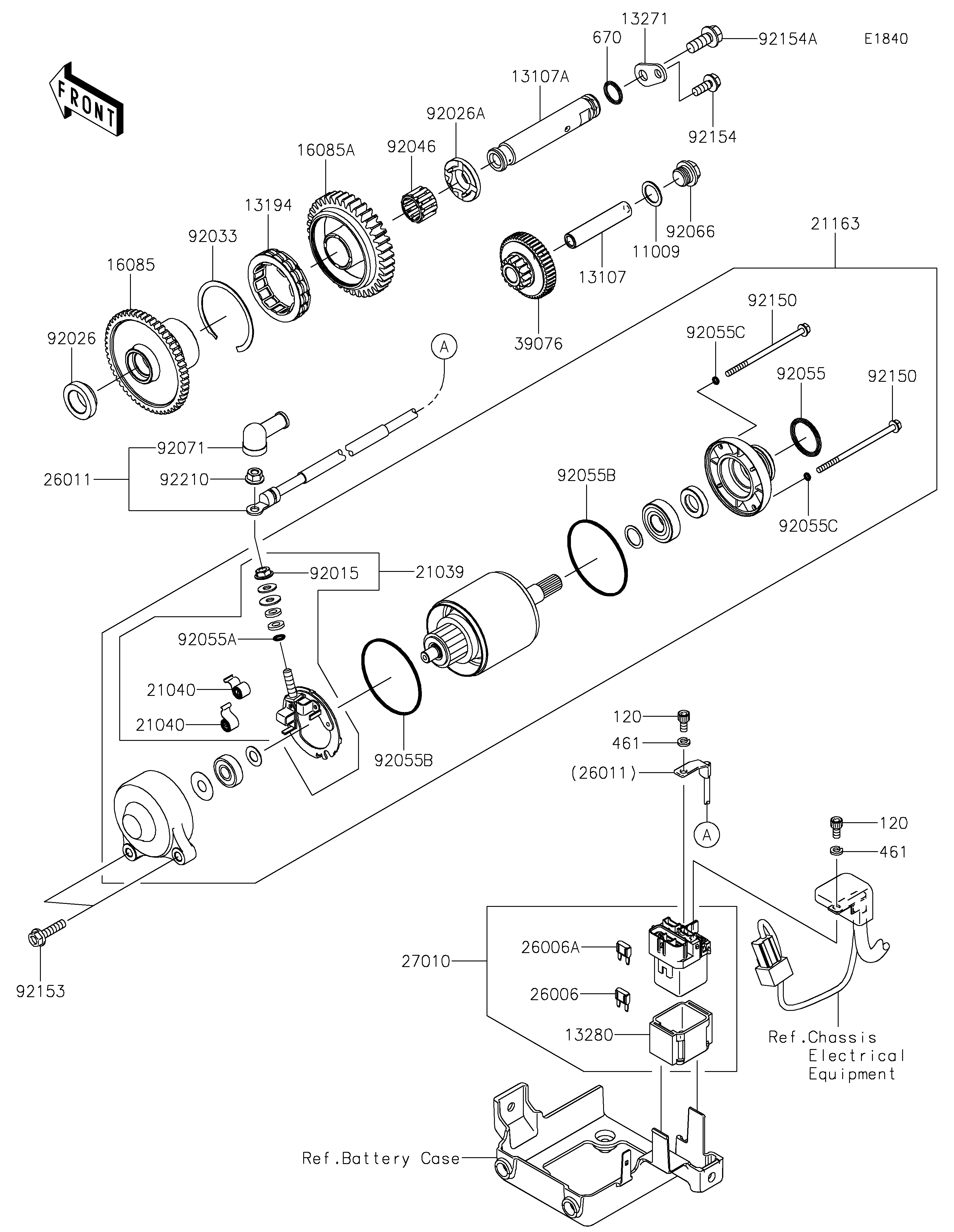

2019 NINJA® ZX™-14R ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
11009
120
120
13107
13107A
13194
13271
13280
16085
16085A
21039
21040
21040
21163
26006
26006A
26011
27010
39076
461
461
670
92015
92026
92026A
92033
92046
92055
92055A
92055B
92055B
92055C
92055C
92066
92071
92150
92150
92153
92154
92154A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14.3X20X1 11009 11009-1238 1
BOLT-SOCKET,5X10 120 120CA0510 2
SHAFT 13107 13107-0136 1
SHAFT 13107A 13107-0740 1
CLUTCH-ONEWAY 13194 13194-3704 1
PLATE 13271 13271-0845 1
HOLDER,MAGNETIC SWITCH 13280 13280-0814 1
GEAR 16085 16085-0113 1
GEAR,39T 16085A 16085-0596 1
BRUSH 21039 21039-1066 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-0053 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0122 1
SWITCH 27010 27010-0770 1
LIMITER 39076 39076-0031 1
WASHER-SPRING,5MM 461 461DA0500 2
O RING,14MM 670 670D2014 1
NUT,STARTER MOTOR 92015 92015-1476 1
SPACER,LH 92026 92026-0137 1
SPACER,RH 92026A 92026-0732 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,18X24X17 92046 92046-0608 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O 92055B 92055-1550 2
RING-O 92055C 92055-1551 2
PLUG,14X8 92066 92066-0837 1
GROMMET 92071 92071-0024 1
BOLT,FLANGED,4X80 92150 92150-1969 2
BOLT,FLANGED,6X25 92153 92153-1592 2
BOLT,FLANGED,6X16 92154 92154-1851 1
BOLT,FLANGED,8X20 92154A 92154-1852 1
NUT,6MM 92210 92210-0188 1
