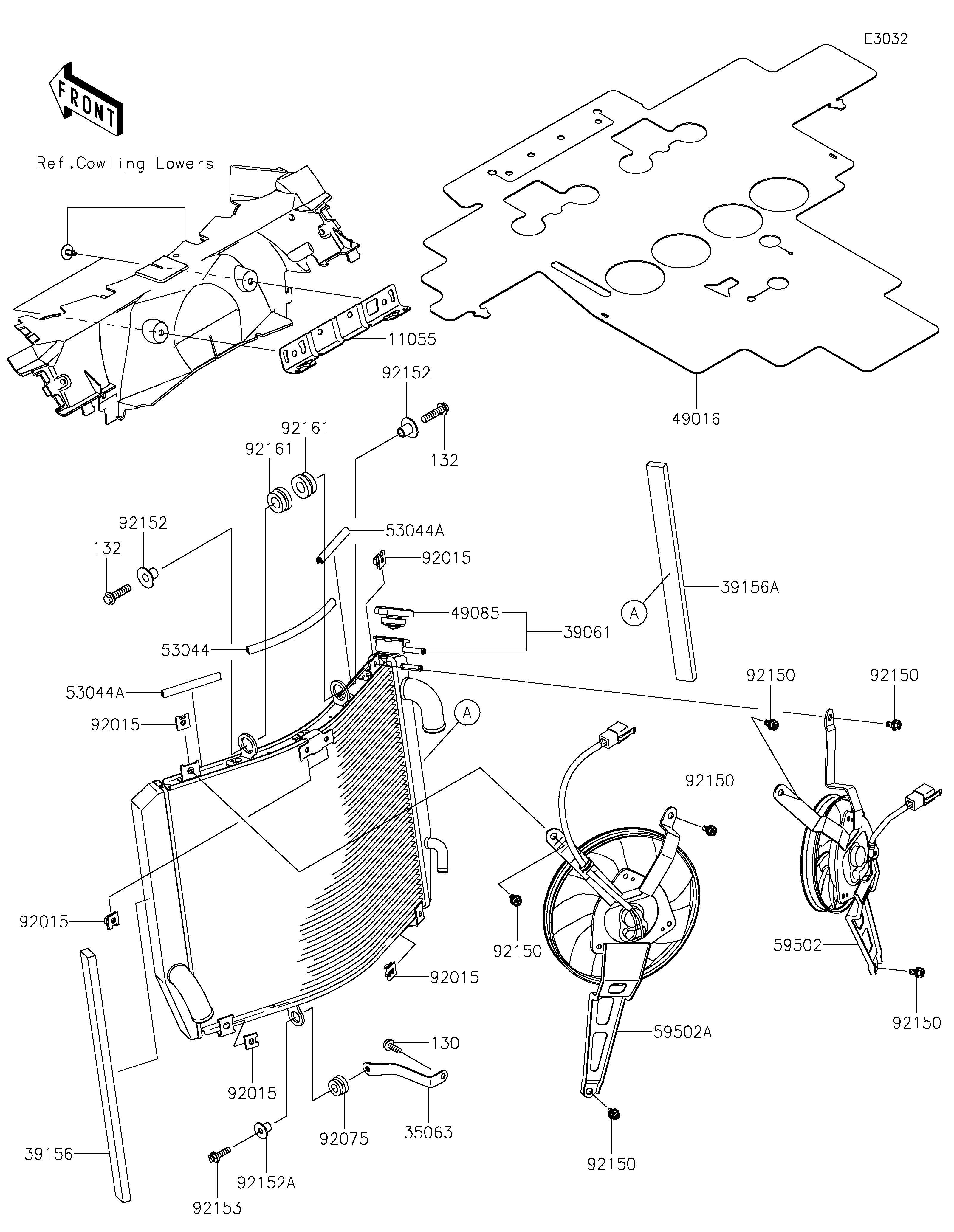

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11055
130
132
132
35063
39061
39156
39156A
49016
49085
53044
53044A
53044A
59502
59502A
92015
92015
92015
92015
92015
92075
92150
92150
92150
92150
92150
92150
92152
92152
92152A
92153
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-1484 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130CC0616 | 1 | ||
| BOLT-FLANGED-SMALL,8X30 | 132 | 132BC0830 | 2 | ||
| STAY | 35063 | 35063-0661 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0107 | 1 | ||
| PAD,RAD. LH | 39156 | 39156-0873 | 1 | ||
| PAD,RAD. RH | 39156A | 39156-0874 | 1 | ||
| COVER-SEAL | 49016 | 49016-0589 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| TRIM | 53044 | 53044-0016 | 1 | ||
| TRIM | 53044A | 53044-0018 | 2 | ||
| FAN-ASSY,RH | 59502 | 59502-0572 | 1 | ||
| FAN-ASSY,LH | 59502A | 59502-0579 | 1 | ||
| NUT | 92015 | 92015-1487 | 6 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 6 | ||
| COLLAR | 92152 | 92152-0439 | 2 | ||
| COLLAR | 92152A | 92152-0440 | 1 | ||
| BOLT,FLANGED,6X22 | 92153 | 92153-1598 | 1 | ||
| DAMPER | 92161 | 92161-0304 | 2 |
| BRACKET | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,8X30 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,RAD. LH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,RAD. RH | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY,RH | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY,LH | |
| REF # | 59502A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
