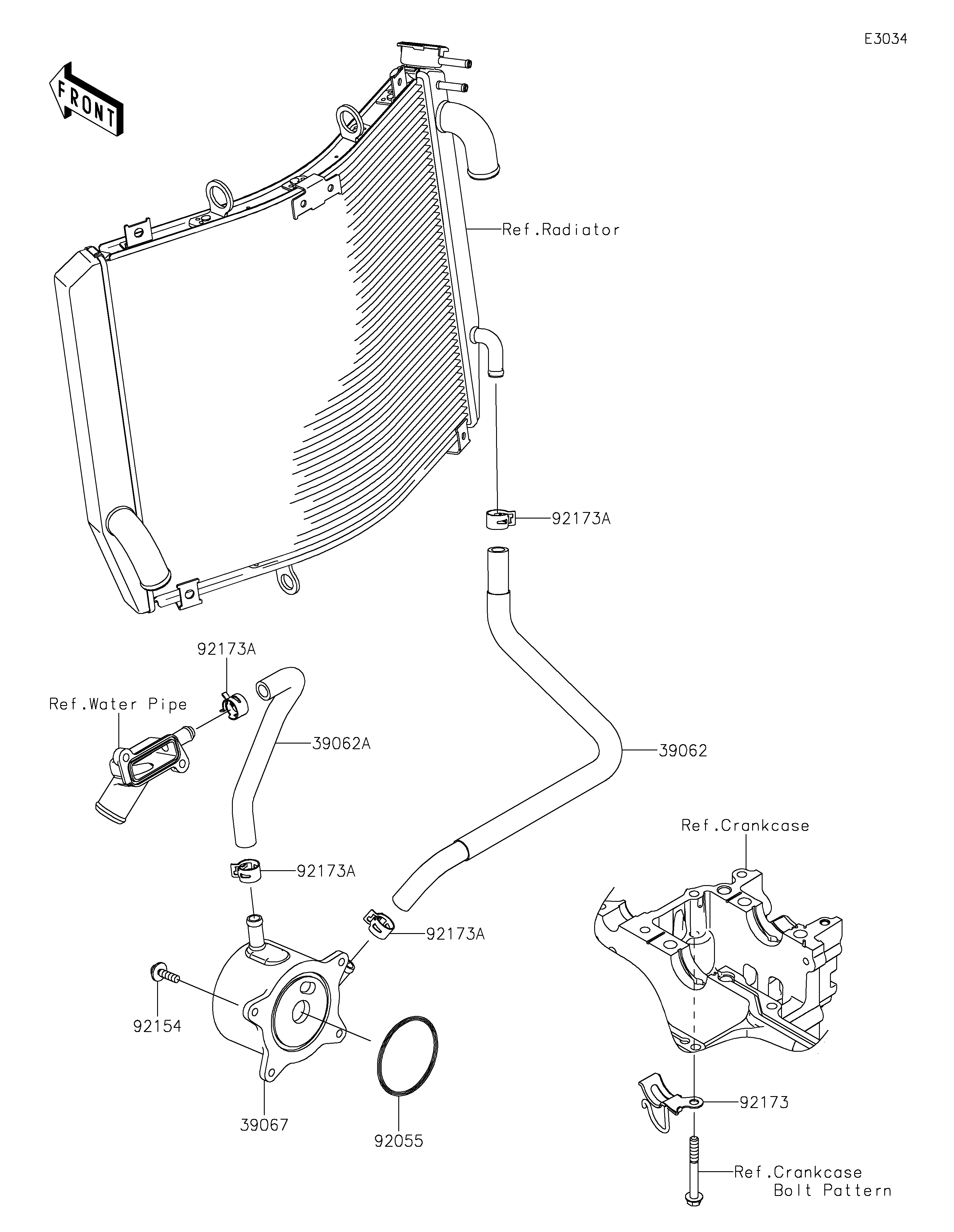

39062
39062A
39067
92055
92154
92173
92173A
92173A
92173A
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOSE-COOLING,O/C-RADIATOR 39062 39062-0167 1
HOSE-COOLING,FIT.-OIL COOLER 39062A 39062-0615 1
COOLER-OIL 39067 39067-0010 1
RING-O,63.3MM 92055 92055-0739 1
BOLT,FLANGED,6X22 92154 92154-0403 4
CLAMP 92173 92173-0891 1
CLAMP 92173A 92173-1484 4
