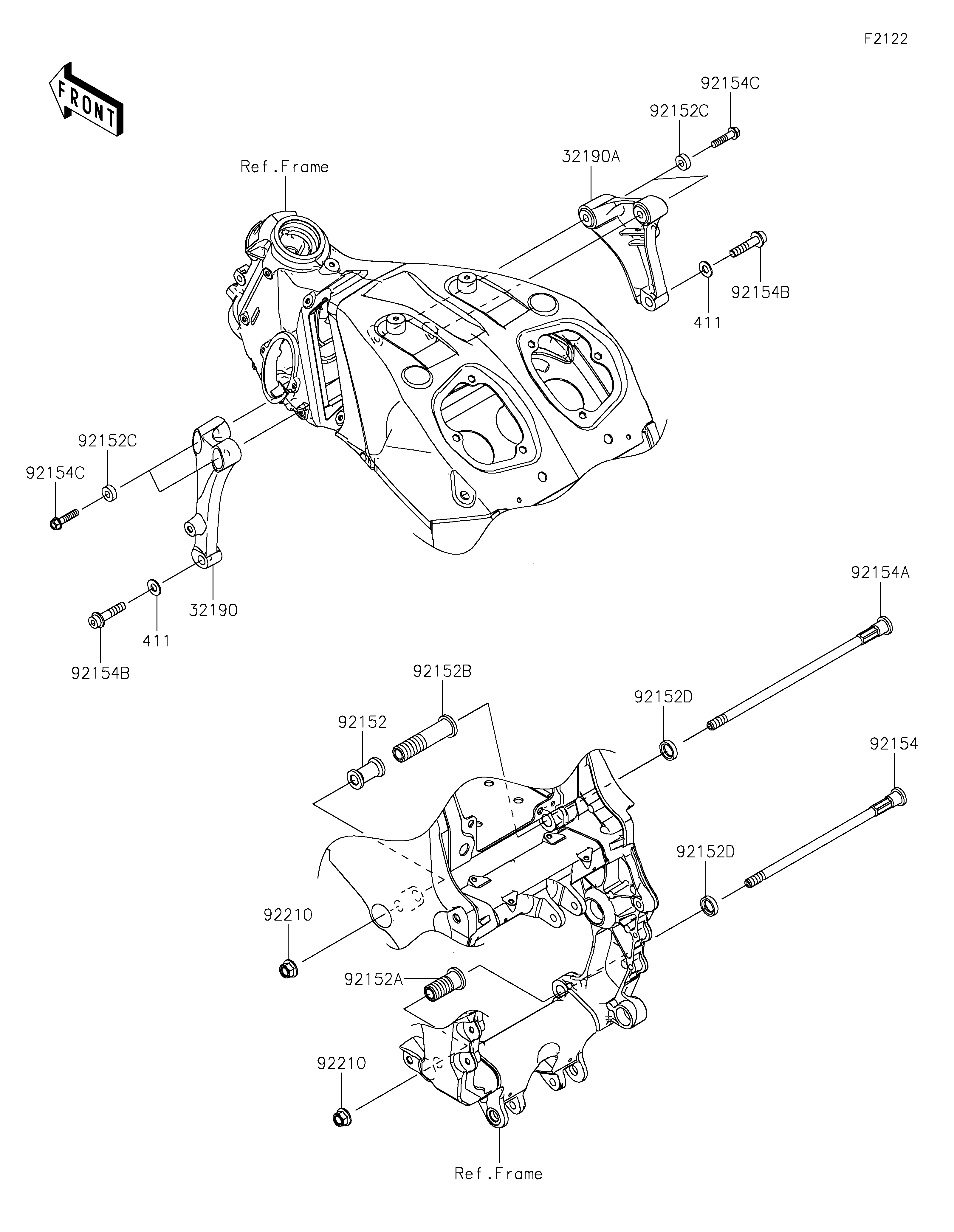

2019 NINJA® ZX™-14R ABS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190A
411
411
92152
92152A
92152B
92152C
92152C
92152D
92152D
92154
92154A
92154B
92154B
92154C
92154C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR,LH 32190 32190-0424 1
BRACKET-ENGINE,FR,RH 32190A 32190-0425 1
WASHER-PLAIN,10MM 411 411AA1000 2
COLLAR,L=43.2 92152 92152-0368 1
COLLAR,ADJUST,RR,LWR 92152A 92152-0370 1
COLLAR,ADJUST,RR,UPP 92152B 92152-0371 1
COLLAR,8.8X20X7 92152C 92152-0502 4
COLLAR,16.6X26X6 92152D 92152-1561 2
BOLT,SOCKET,12X274 92154 92154-0908 1
BOLT,SOCKET,12X318 92154A 92154-0909 1
BOLT,SOCKET,10X45 92154B 92154-1862 2
BOLT,FLANGED,8X35 92154C 92154-1863 4
NUT,LOCK,FLANGED,12MM 92210 92210-0287 2
