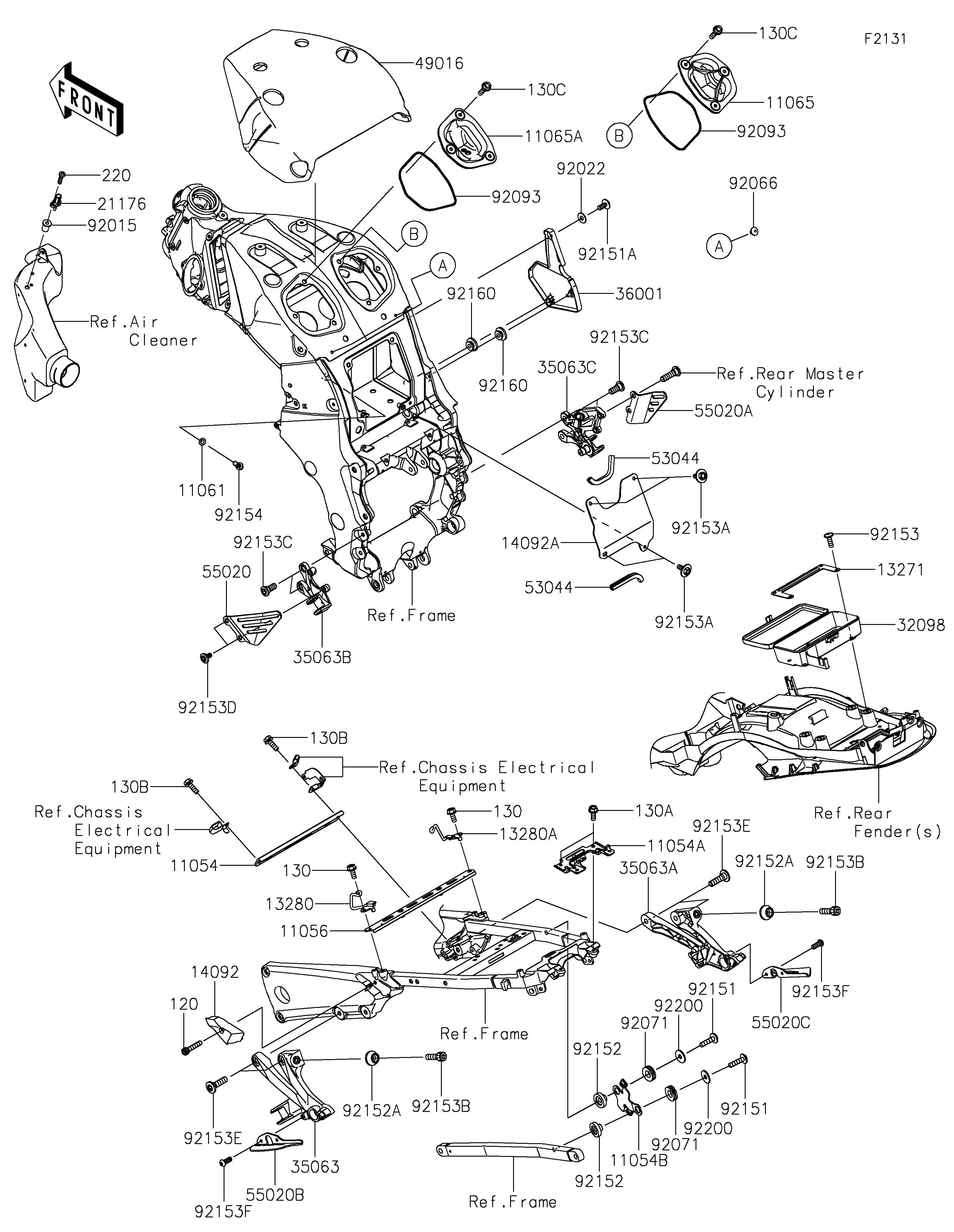

2019 NINJA® ZX™-14R ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11056
11056
11061
11061
11065
11065
11065A
11065A
13271
13271
13280
13280
13280A
13280A
14092
14092
14092A
14092A
21176
21176
32098
32098
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
36001
36001
49016
49016
53044
53044
53044
53044
55020
55020
55020A
55020A
55020B
55020B
55020C
55020C
92015
92015
92022
92022
92066
92066
92071
92071
92071
92071
92093
92093
92093
92093
92151
92151
92151
92151
92151A
92151A
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153D
92153D
92153E
92153E
92153E
92153E
120
120
130
130
130
130
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
220
220
92153F
92153F
92153F
92153F
92154
92154
92160
92160
92160
92160
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR FENDER,FR 11054 11054-0225 1
BRACKET,REAR FENDER&TAIL COVER 11054A 11054-0694 1
BRACKET,REGULATOR 11054B 11054-0718 1
BRACKET,FUEL TANK,RR 11056 11056-2121 1
GASKET 11061 11061-0107 1
CAP,AIR CLEANER,RH 11065 11065-0223 1
CAP,AIR CLEANER,LH 11065A 11065-0763 1
PLATE,TOOL CASE 13271 13271-0779 1
HOLDER,HELMET,LH 13280 13280-0753 1
HOLDER,HELMET,RH 13280A 13280-0754 1
COVER,F.BLACK 14092 14092-0903-6Z 1
COVER,BATTERY 14092A 14092-0981 1
SENSOR,AIR TEMPERATURE 21176 21176-0048 1
CASE-TOOL 32098 32098-0058 1
STAY,RR,LH,F.S.BLACK 35063 35063-0782-18R 1
STAY,RR,RH,F.S.BLACK 35063A 35063-0783-18R 1
STAY,FR,LH,F.S.BLACK 35063B 35063-1337-18R 1
STAY,FR,RH,F.S.BLACK 35063C 35063-1338-18R 1
COVER-SIDE,BATTERY,RH,BLACK 36001 36001-0080-18T 1
COVER-SEAL,FRAME 49016 49016-0578 1
TRIM,L=100 53044 53044-1200 2
GUARD,FRONT STEP,LH 55020 55020-0211 1
GUARD,FRONT STEP,RH 55020A 55020-0212 1
GUARD,RR STEP,LH 55020B 55020-0866 1
GUARD,RR STEP,RH 55020C 55020-0867 1
NUT,WELL,5MM 92015 92015-1757 1
WASHER,6.5X16X1 92022 92022-1143 1
PLUG 92066 92066-1547 2
GROMMET 92071 92071-1115 2
SEAL,124.4X3.1 92093 92093-0692 2
BOLT,SOCKET,6X25 92151 92151-1611 2
BOLT,SOCKET,6X14 92151A 92151-1654 1
COLLAR 92152 92152-0470 2
COLLAR 92152A 92152-0668 2
BOLT,6X18 92153 92153-0478 4
BOLT,6X16 92153A 92153-1423 4
BOLT,SOCKET,10X23 92153B 92153-1522 2
BOLT,SOCKET,8X20 92153C 92153-1621 4
BOLT,6MM 92153D 92153-1622 2
BOLT,SOCKET,8X30 92153E 92153-1630 4
BOLT-SOCKET,6X30 120 120CB0630 1
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,6X18 130B 130BA0618 2
BOLT-FLANGED,6X22 130C 130BA0622 6
SCREW-PAN-CROS,5X18 220 220AB0518 1
BOLT,SOCKET,6X16 92153F 92153-1785 4
BOLT,FLANGED,6X14 92154 92154-1864 1
DAMPER 92160 92160-1613 2
WASHER,6.5X20X1.6 92200 92200-0283 2
