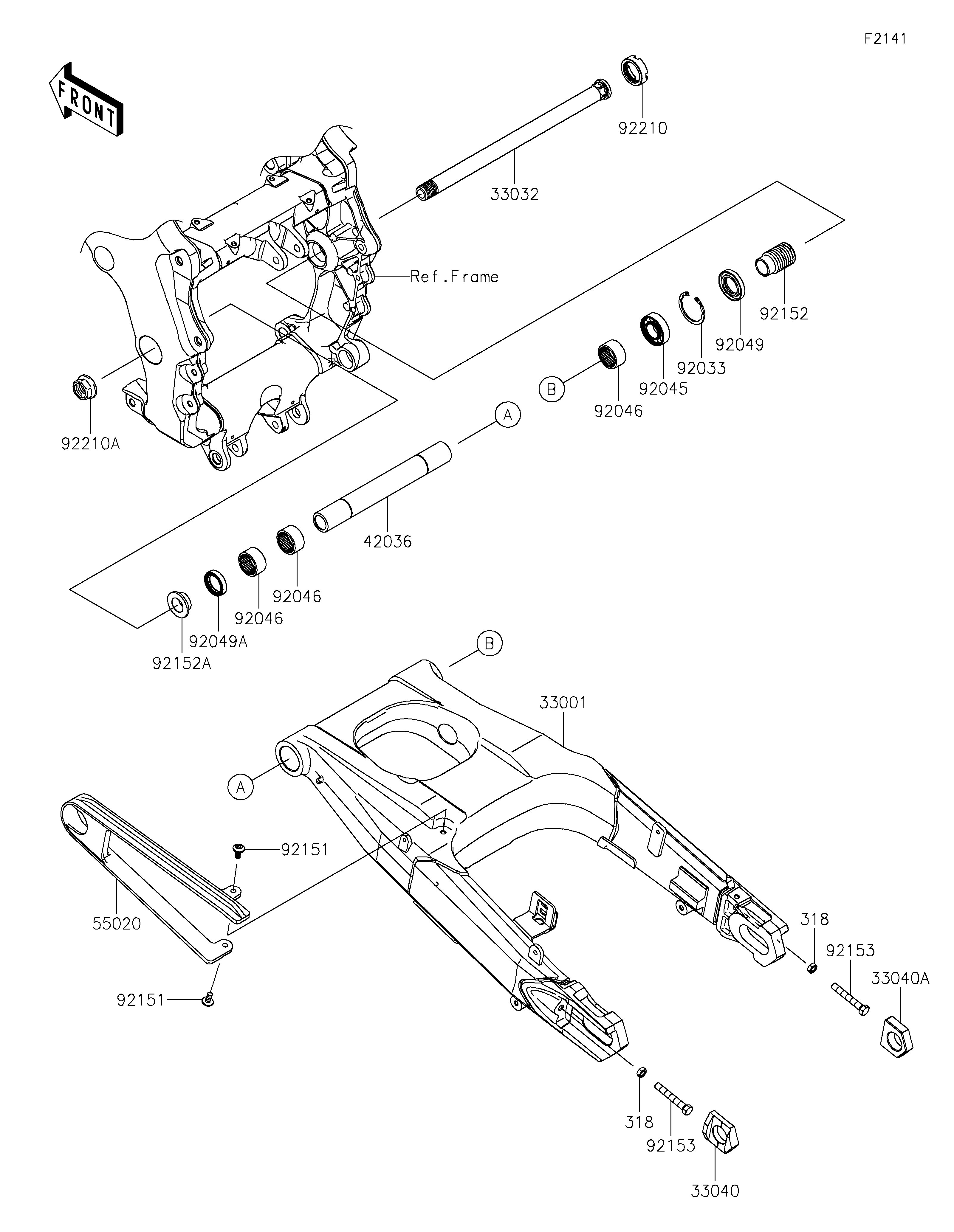

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 318 318BA0800 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0658-18R 1
SHAFT-SWING ARM 33032 33032-0044 1
ADJUSTER-CHAIN,LH 33040 33040-0017 1
ADJUSTER-CHAIN,RH 33040A 33040-0018 1
SLEEVE,SWING ARM PIVOT,L=226 42036 42036-1341 1
GUARD,CHAIN 55020 55020-0818 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,MHSA25X42X6 92049 92049-1314 1
SEAL-OIL,MHSA25X34X7 92049A 92049-1352 1
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,SWING ARM,RH,L=47 92152 92152-0362 1
COLLAR,SWING ARM,L=12.5 92152A 92152-1234 1
BOLT,8X55 92153 92153-1407 2
NUT,30MM 92210 92210-0134 1
NUT,FLANGED,20MM 92210A 92210-0320 1
