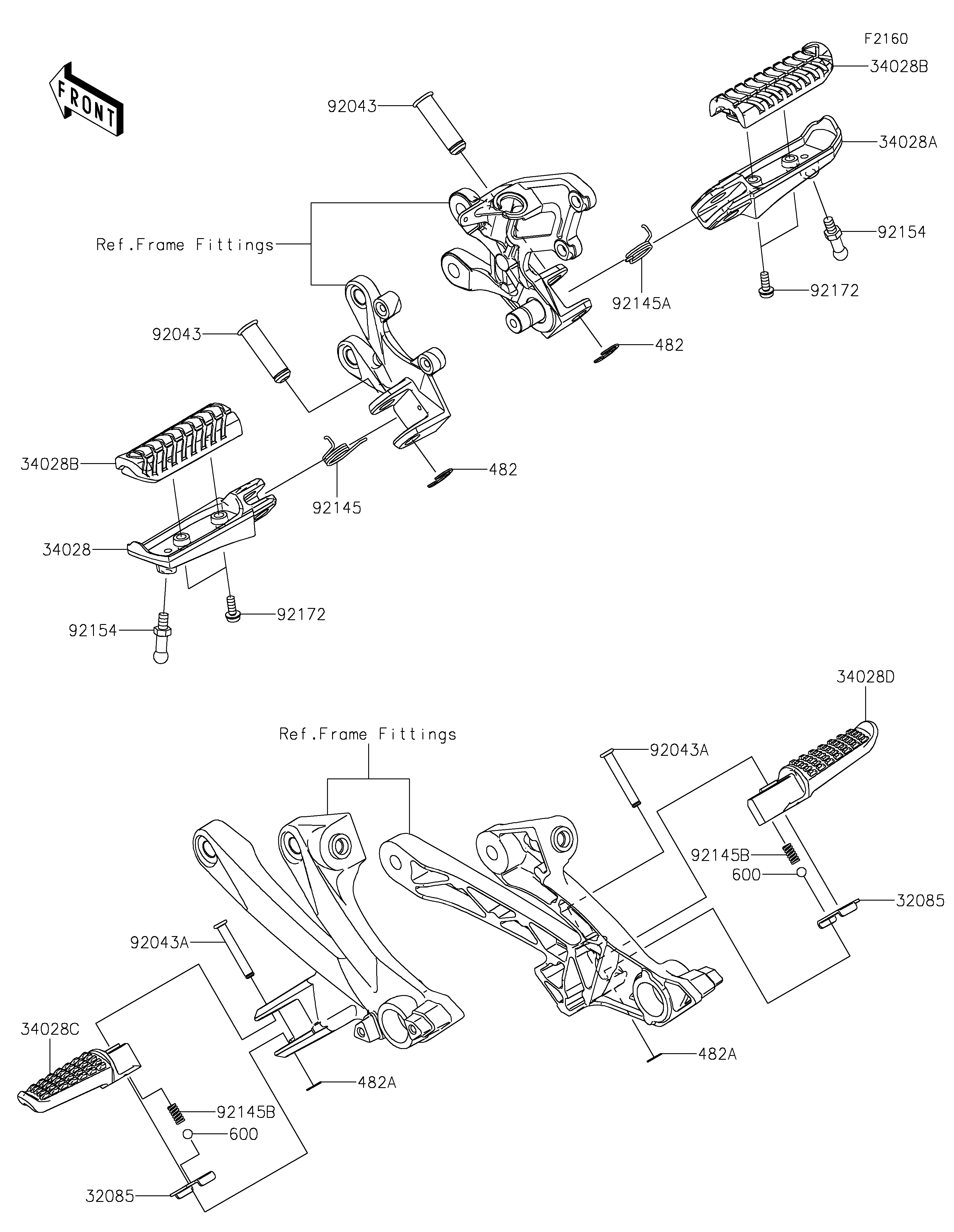

2019 NINJA® ZX™-14R ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
32085
32085
34028
34028A
34028B
34028B
34028C
34028D
482
482
482A
482A
600
600
92043
92043
92043A
92043A
92145
92145A
92145B
92145B
92154
92154
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,REAR STEP 32085 32085-0046 2
STEP,FR,LH 34028 34028-0031 1
STEP,FR,RH 34028A 34028-0032 1
STEP,FR,RUBBER 34028B 34028-0322 2
STEP,RR,LH 34028C 34028-0329 1
STEP,RR,RH 34028D 34028-0330 1
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
BALL-STEEL,1/4 600 600A0800 2
PIN,12X42.5 92043 92043-1594 2
PIN,6X40 92043A 92043-1595 2
SPRING,STEP RETURN,LH 92145 92145-0360 1
SPRING,STEP RETURN,RH 92145A 92145-0361 1
SPRING 92145B 92145-1319 2
BOLT,BANK SENSOR,6X10 92154 92154-1854 2
SCREW,5X14 92172 92172-0976 4
