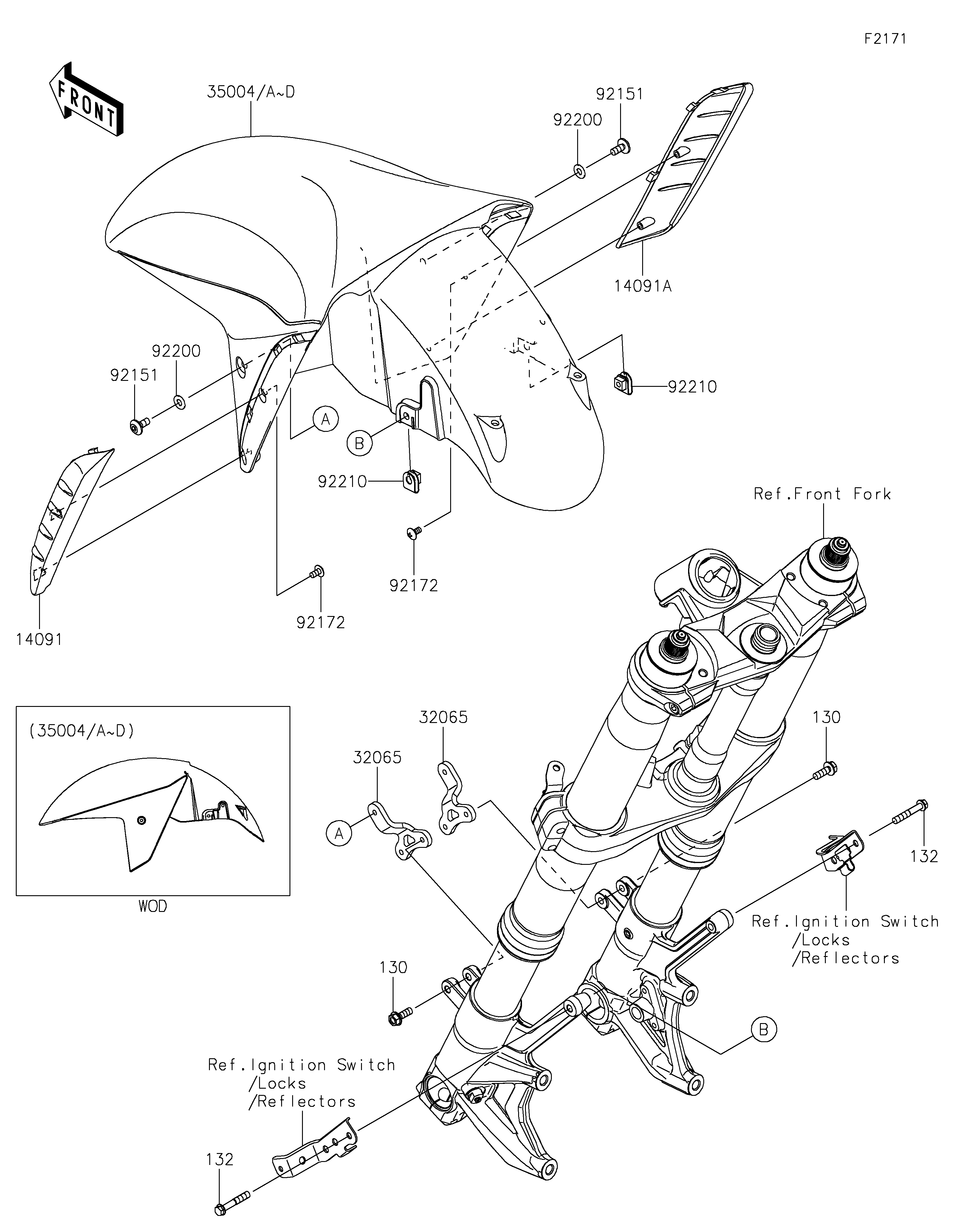

130
130
132
132
14091
14091A
32065
32065
35004D
92151
92151
92172
92172
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BA0618 4
BOLT-FLANGED-SMALL,6X35 132 132BB0635 2
COVER,FRONT FENDER,LH 14091 14091-0598 1
COVER,FRONT FENDER,RH 14091A 14091-0599 1
BRACKET-FENDER 32065 32065-0020 2
FENDER-FRONT,E.B.GREEN 35004D 35004-0131-60R 1
BOLT,SOCKET,6X14 92151 92151-1654 2
SCREW,TAPPING,5X10 92172 92172-0262 4
WASHER,6.5X14X1 92200 92200-1388 2
NUT,6MM 92210 92210-0277 2
