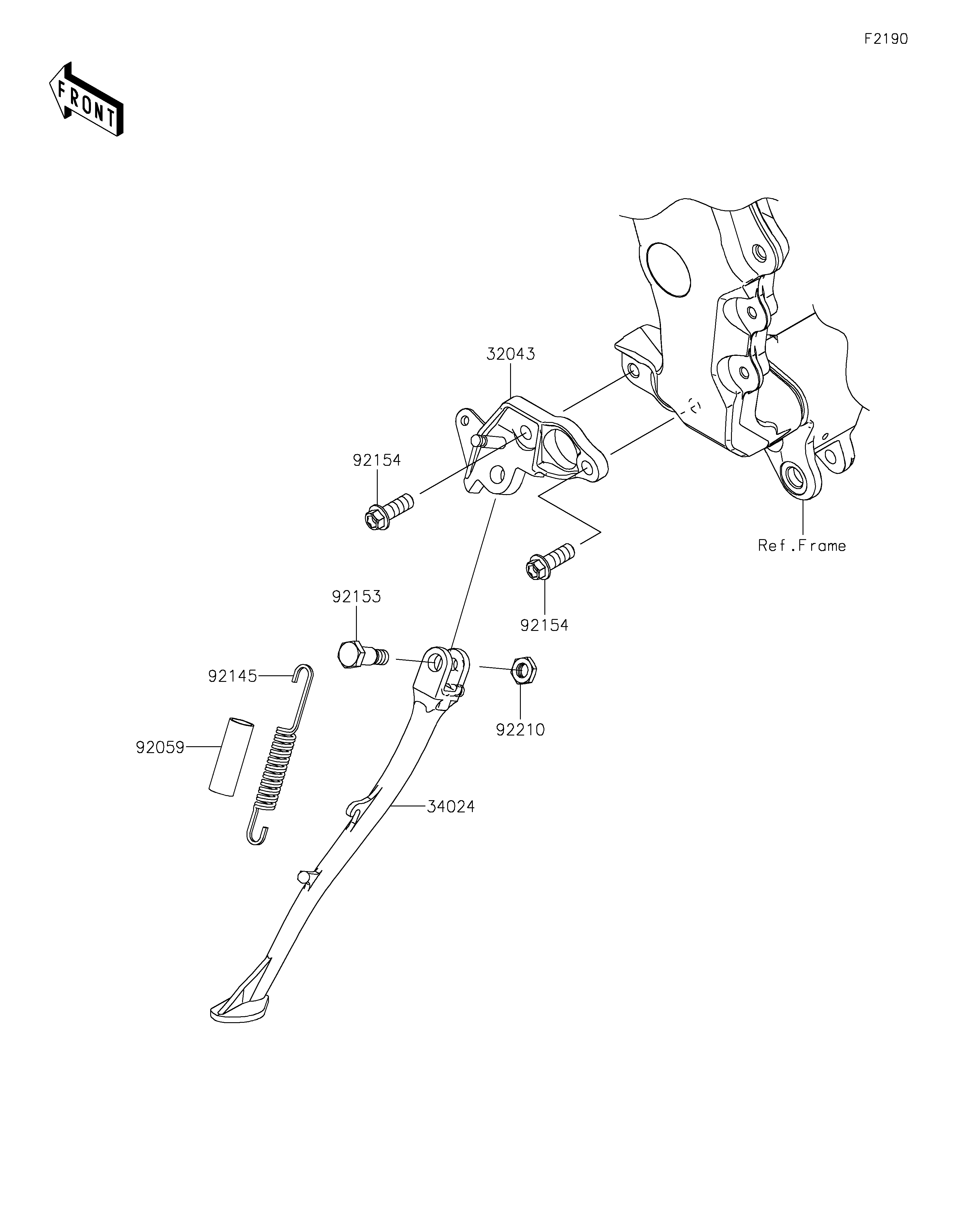

32043
34024
92059
92145
92153
92154
92154
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,F.S.BLACK 32043 32043-0610-18R 1
STAND-SIDE,F.S.BLACK 34024 34024-0026-18R 1
TUBE,14X17X50 92059 92059-1961 1
SPRING,SIDE STAND 92145 92145-0562 1
BOLT,SIDE STAND,10MM 92153 92153-1416 1
BOLT,FLANGED,10X28 92154 92154-1855 2
NUT,LOCK,10MM 92210 92210-0278 1
