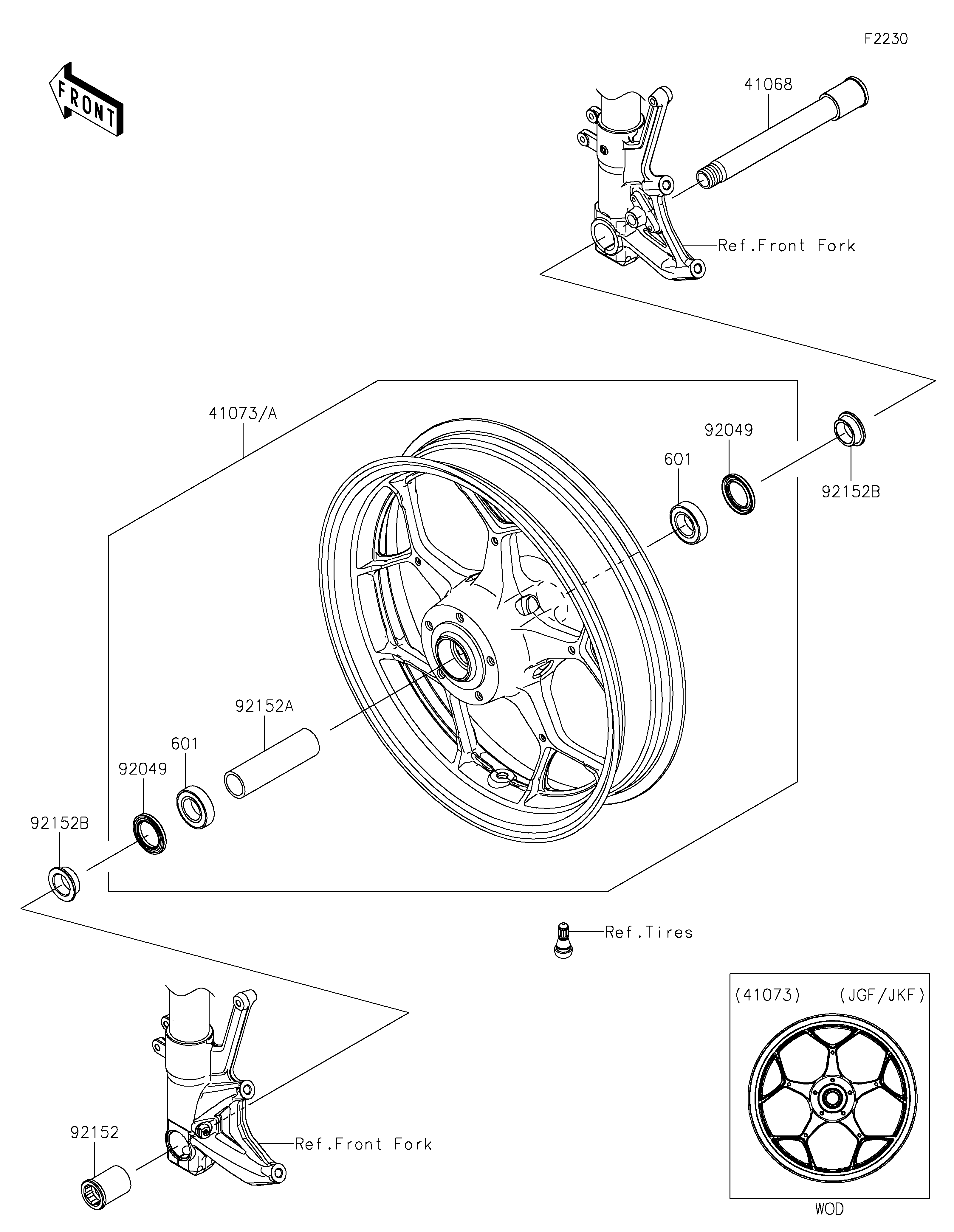

41068
41073
601
601
92049
92049
92152
92152A
92152B
92152B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR,24X195 41068 41068-0604 1
WHEEL-ASSY,FR,G.BLACK 41073 41073-0573-18F 1 _________________________________________CN
BEARING-BALL,#6005UU 601 601B6005UU 2
SEAL-OIL,BJN-C2 32X47X5 92049 92049-0050 2
COLLAR,FR AXLE,LH,L=44.5 92152 92152-0240 1
COLLAR,FR HUB,L=115 92152A 92152-0242 1
COLLAR,25X32X13 92152B 92152-0289 2
