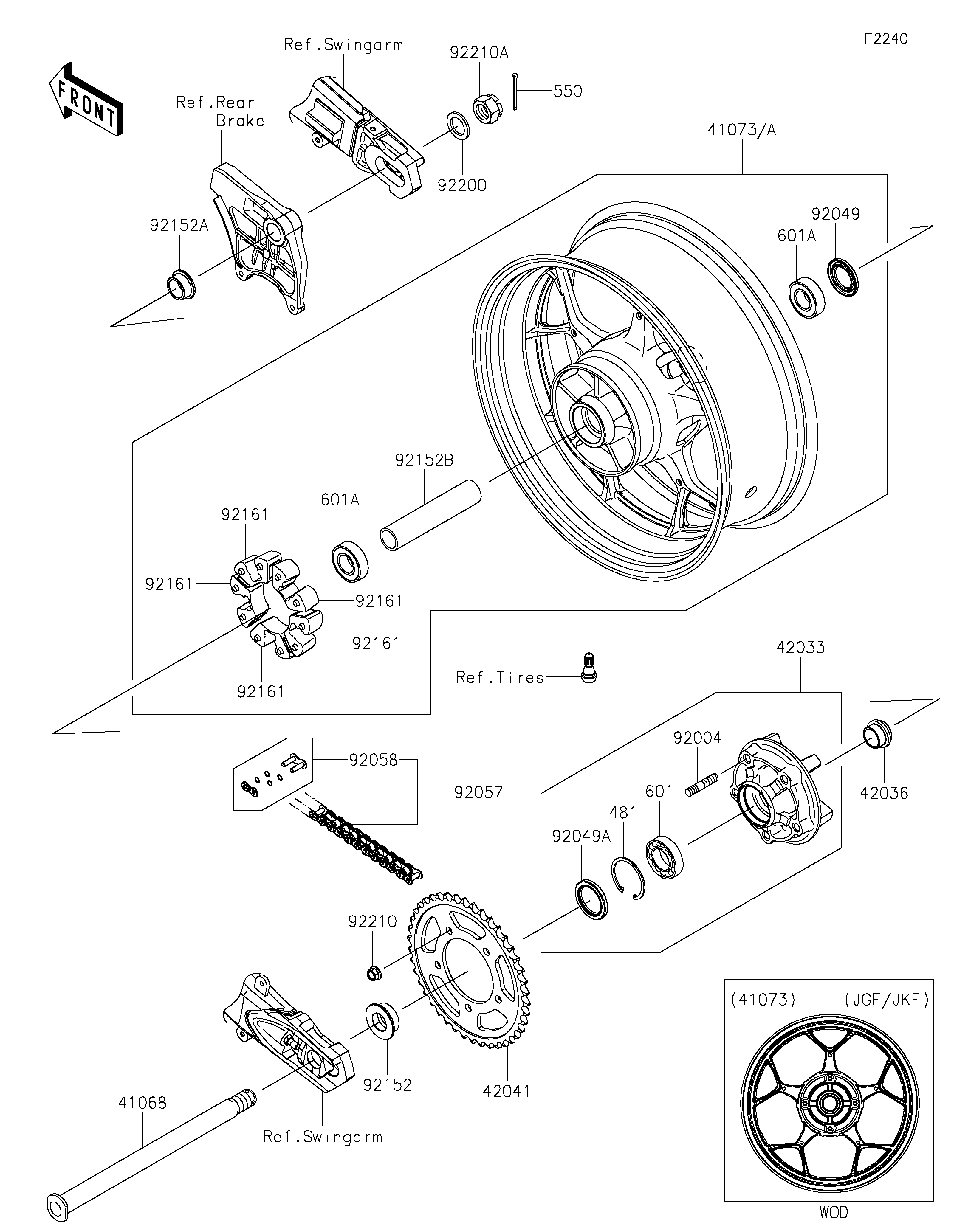

2019 NINJA® ZX™-14R ABS - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
41068
41073
42033
42036
42041
481
550
601
601A
601A
92004
92049
92049A
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92161
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR,24X350 41068 41068-0612 1
WHEEL-ASSY,RR,G.BLACK 41073 41073-0574-18F 1 _________________________________________CN
COUPLING-ASSY,RR HUB 42033 42033-0021 1
SLEEVE,RR HUB,L=22 42036 42036-1279 1
SPROCKET-HUB,42T 42041 42041-0117 1
CIRCLIP 481 481J5500 1
PIN-COTTER,4.0X45 550 550AA4045 1
BEARING-BALL,#6006G 601 601B6006G 1
BEARING-BALL 601A 601B6205UU 2
STUD,10X24 92004 92004-0029 5
SEAL-OIL,31X52X5 92049 92049-0722 1
SEAL-OIL,PJN40556 92049A 92049-1263 1
CHAIN,DRIVE,EK530RMX/3DX118L 92057 92057-0579 1
JOINT-CHAIN 92058 92058-0031 1
COLLAR,RR AXLE,LH,L=16.5 92152 92152-0340 1
COLLAR,RR AXLE,RH,L=16 92152A 92152-0341 1
COLLAR,RR HUB,L=152.5 92152B 92152-1080 1
DAMPER,SHOCK,RR HUB 92161 92161-1286 5
WASHER,25.5X38X3.2 92200 92200-0278 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 5
NUT,CASTLE,24MM 92210A 92210-0280 1
