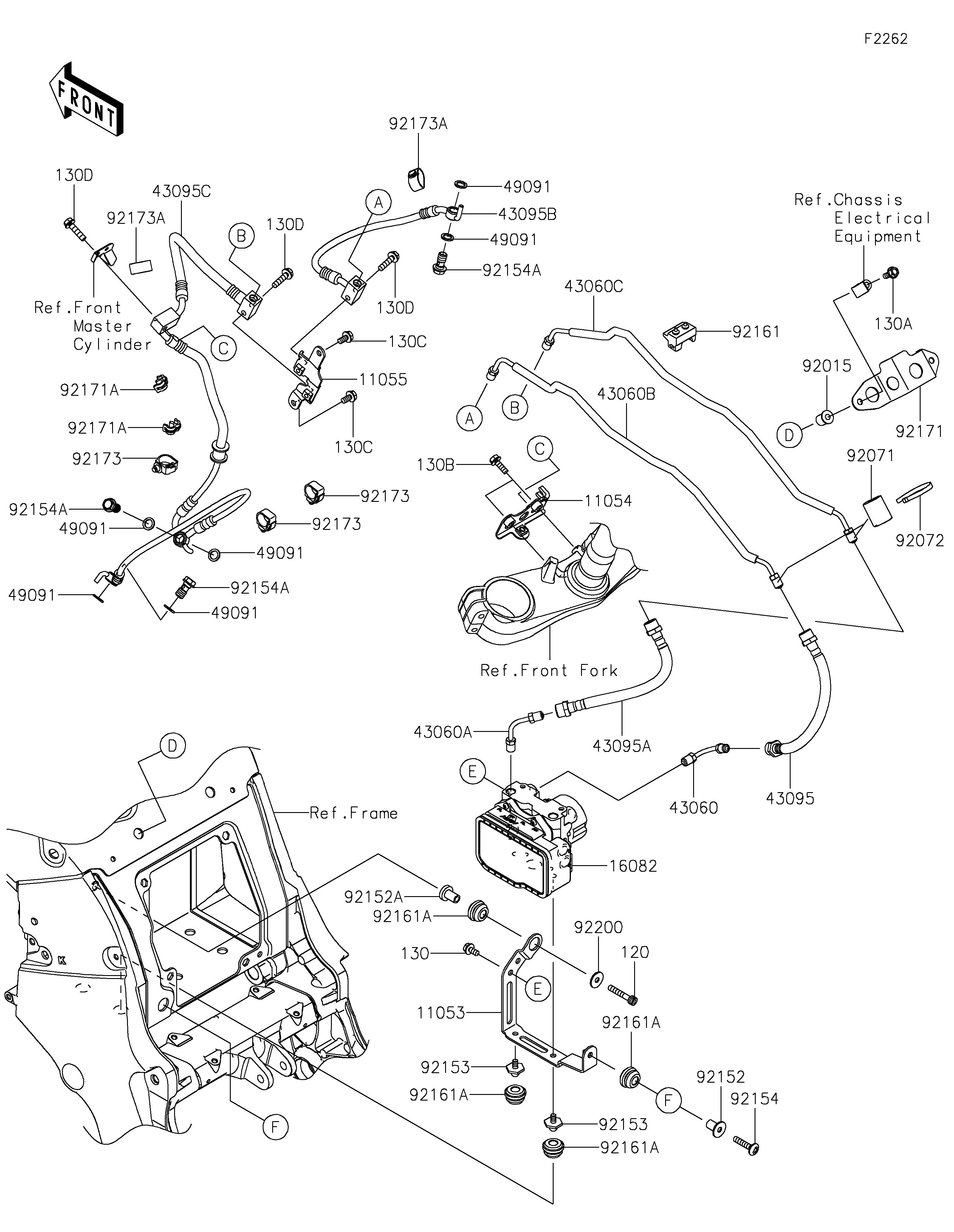

2019 NINJA® ZX™-14R ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11053
11054
11055
120
130
130A
130B
130C
130C
130D
130D
130D
16082
43060
43060A
43060B
43060C
43095
43095A
43095B
43095C
49091
49091
49091
49091
49091
49091
92015
92071
92072
92152
92152A
92153
92153
92154
92154A
92154A
92154A
92161
92161A
92161A
92161A
92161A
92171
92171A
92171A
92173
92173
92173
92173A
92173A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11053 11053-1949 1
BRACKET,JOINT 11054 11054-0029 1
BRACKET,JOINT 11055 11055-0588 1
BOLT-SOCKET,6X35 120 120CA0635 1
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,6X18 130B 130BA0618 2
BOLT-FLANGED,6X12 130C 130BB0612 2
BOLT-FLANGED,6X25 130D 130BB0625 3
PUMP-ASSY-OIL,ABS 16082 16082-0759 1
PIPE-BRAKE,HU-M/CYLINDER 43060 43060-0014 1
PIPE-BRAKE,HU-FR CALIPER 43060A 43060-0015 1
PIPE-BRAKE,HU-FR M/CYLINDER 43060B 43060-0059 1
PIPE-BRAKE,HU-FR CALIPER 43060C 43060-0060 1
HOSE-BRAKE,FR M/CYL.-HU 43095 43095-0607 1
HOSE-BRAKE,HU-FR CALIPER 43095A 43095-0608 1
HOSE-BRAKE,FR M/CYL. 43095B 43095-0912 1
HOSE-BRAKE,FR CALIPER,LH-RH 43095C 43095-0913 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
NUT 92015 92015-1700 2
GROMMET 92071 92071-1143 2
BAND,L=148 92072 92072-3768 2
COLLAR 92152 92152-0346 1
COLLAR 92152A 92152-0347 1
BOLT,6X10 92153 92153-1381 2
BOLT,SOCKET,6X30 92154 92154-0435 1
BOLT,BANJO,10X19 92154A 92154-1554 3
DAMPER,HOSE CLAMP 92161 92161-0305 1
DAMPER 92161A 92161-0315 4
CLAMP,BRAKE HOSE 92171 92171-0630 1
CLAMP 92171A 92171-0921 2
CLAMP,HOLDER CLIP 92173 92173-0868 3
CLAMP,RUBBER PLATE 92173A 92173-1229 2
WASHER,6.5X20X1.6 92200 92200-0283 1
