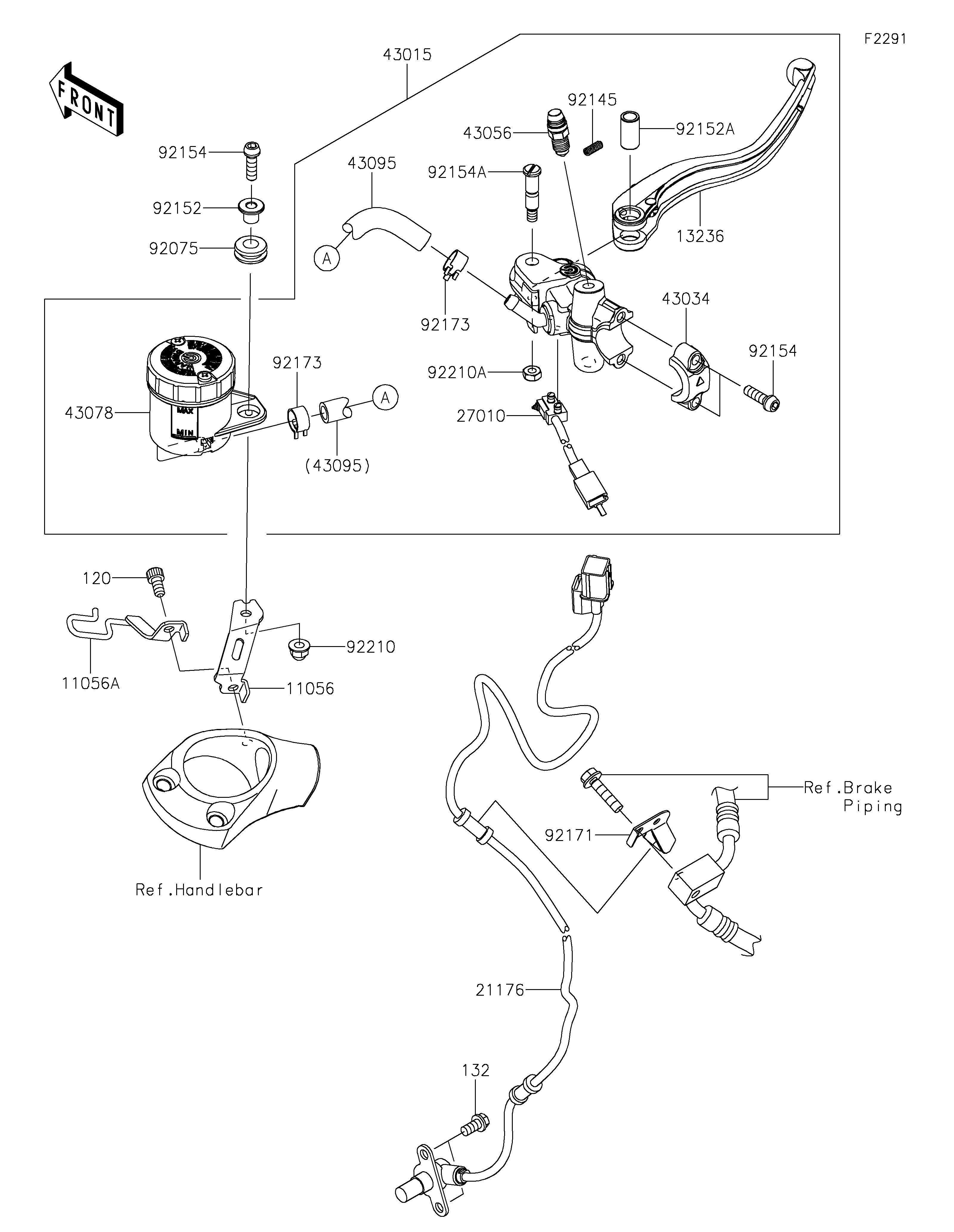

2019 NINJA® ZX™-14R ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
120
132
13236
21176
27010
43015
43034
43056
43078
43095
92075
92145
92152
92152A
92154
92154
92154A
92171
92173
92173
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR 11056 11056-7711 1
BRACKET,THROTTLE CABLE 11056A 11056-7789 1
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
LEVER-COMP,BRAKE 13236 13236-0770 1
SENSOR,SPEED,FR 21176 21176-0051 1
SWITCH,BRAKE 27010 27010-0831 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0644 1
HOLDER-BRAKE 43034 43034-0132 1
BREATHER-BRAKE 43056 43056-0012 1
RESERVOIR 43078 43078-0577 1
HOSE-BRAKE 43095 43095-0941 1
DAMPER 92075 92075-1028 1
SPRING 92145 92145-1683 1
COLLAR,6X16X10.6 92152 92152-2110 1
COLLAR,LEVER 92152A 92152-2151 1
BOLT,SOCKET,6X20 92154 92154-1644 3
BOLT,LEVER 92154A 92154-1809 1
CLAMP 92171 92171-0624 1
CLAMP,HOSE 92173 92173-1498 2
NUT,CAP,6MM 92210 92210-0322 1
NUT,U 92210A 92210-1424 1
