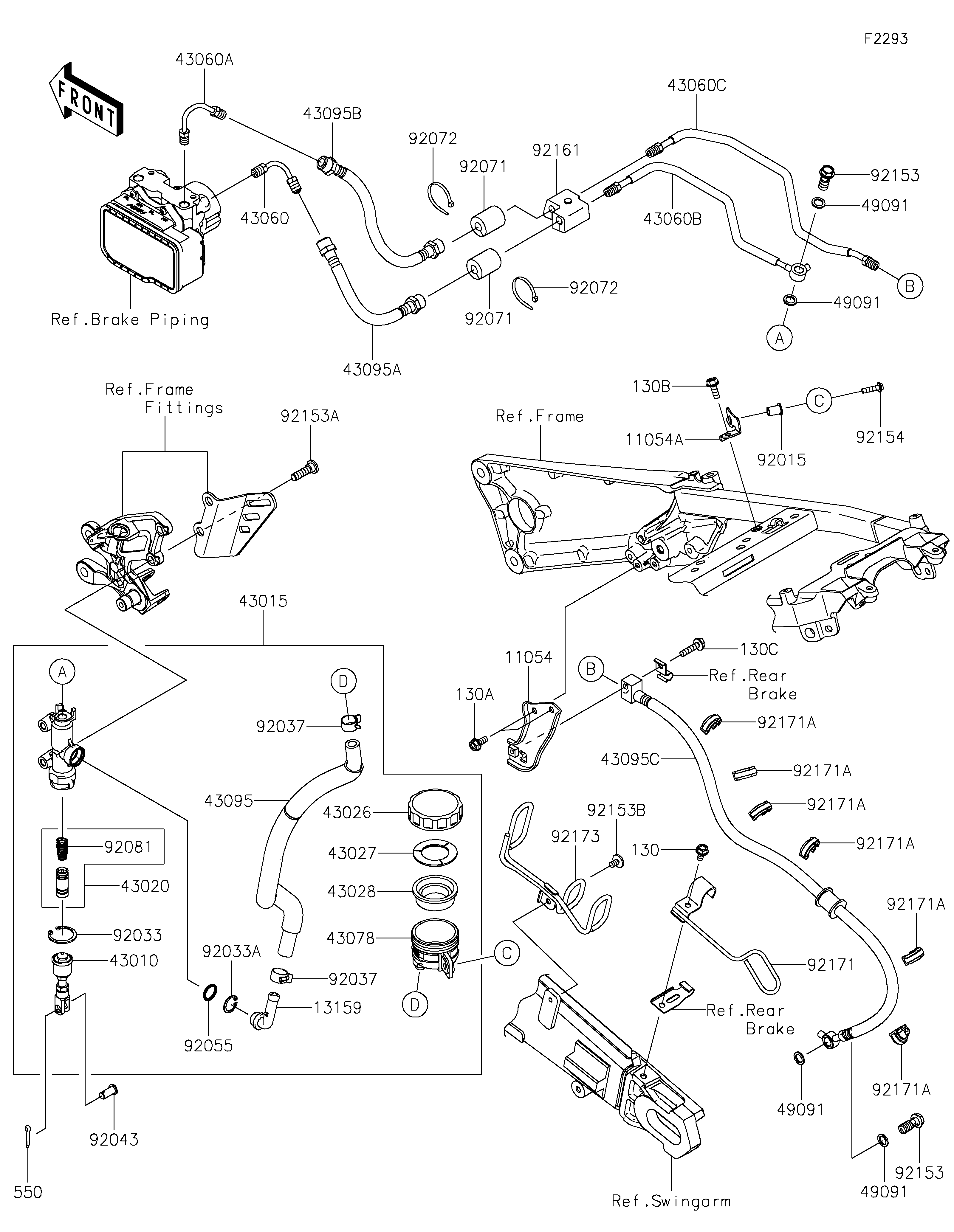

2019 NINJA® ZX™-14R ABS - Rear Master Cylinder
11054
11054
11054A
11054A
130
130
130A
130A
130B
130B
130C
130C
13159
13159
43010
43010
43015
43015
43020
43020
43026
43026
43027
43027
43028
43028
43060
43060
43060A
43060A
43060B
43060B
43060C
43060C
43078
43078
43095
43095
43095A
43095A
43095B
43095B
43095C
43095C
49091
49091
49091
49091
49091
49091
49091
49091
92015
92015
92033
92033
92033A
92033A
92037
92037
92037
92037
92043
92043
92055
92055
92071
92071
92071
92071
92072
92072
92072
92072
92081
92081
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92154
92154
92161
92161
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92173
92173
550
550
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HOSE JOINT | 11054 | 11054-0060 | 1 | ||
| BRACKET,RESERVOIR TANK,RR | 11054A | 11054-0184 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 1 | ||
| BOLT-FLANGED,6X14 | 130A | 130BA0614 | 2 | ||
| BOLT-FLANGED,6X16 | 130B | 130BA0616 | 1 | ||
| BOLT-FLANGED,6X25 | 130C | 130BB0625 | 1 | ||
| CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-0012 | 1 | ||
| CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0584 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
| PIPE-BRAKE,HU-M/CYLINDER | 43060 | 43060-0014 | 1 | ||
| PIPE-BRAKE,HU-RR CALIPER | 43060A | 43060-0019 | 1 | ||
| PIPE-BRAKE,HU-RR M/CYLINDER | 43060B | 43060-0020 | 1 | ||
| PIPE-BRAKE,HU-RR CALIPER | 43060C | 43060-0061 | 1 | ||
| RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1082 | 1 | ||
| HOSE-BRAKE,RR MASTER CYLINDER | 43095 | 43095-0235 | 1 | ||
| HOSE-BRAKE,RR M/CYL.-HU | 43095A | 43095-0612 | 1 | ||
| HOSE-BRAKE,HU-RR CALIPER | 43095B | 43095-0613 | 1 | ||
| HOSE-BRAKE,HU-RR CALIPER | 43095C | 43095-0614 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 1 | ||
| RING-SNAP,20.9X24.6X1.2 | 92033 | 92033-0079 | 1 | ||
| RING-SNAP,20.5MM | 92033A | 92033-1186 | 1 | ||
| CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
| PIN,8X17 | 92043 | 92043-0104 | 1 | ||
| RING-O,14.8X2.4 | 92055 | 92055-0741 | 1 | ||
| GROMMET | 92071 | 92071-1143 | 2 | ||
| BAND,L=148 | 92072 | 92072-3768 | 2 | ||
| SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
| BOLT,SOCKET,8X30 | 92153A | 92153-1624 | 2 | ||
| BOLT,SOCKET,6X10 | 92153B | 92153-1628 | 1 | ||
| BOLT,SOCKET,5X20 | 92154 | 92154-0829 | 1 | ||
| DAMPER,HOSE CLAMP | 92161 | 92161-0314 | 1 | ||
| CLAMP,BRAKE HOSE,RR | 92171 | 92171-0553 | 1 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-1819 | 6 | ||
| CLAMP | 92173 | 92173-0989 | 1 | ||
| PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 |
