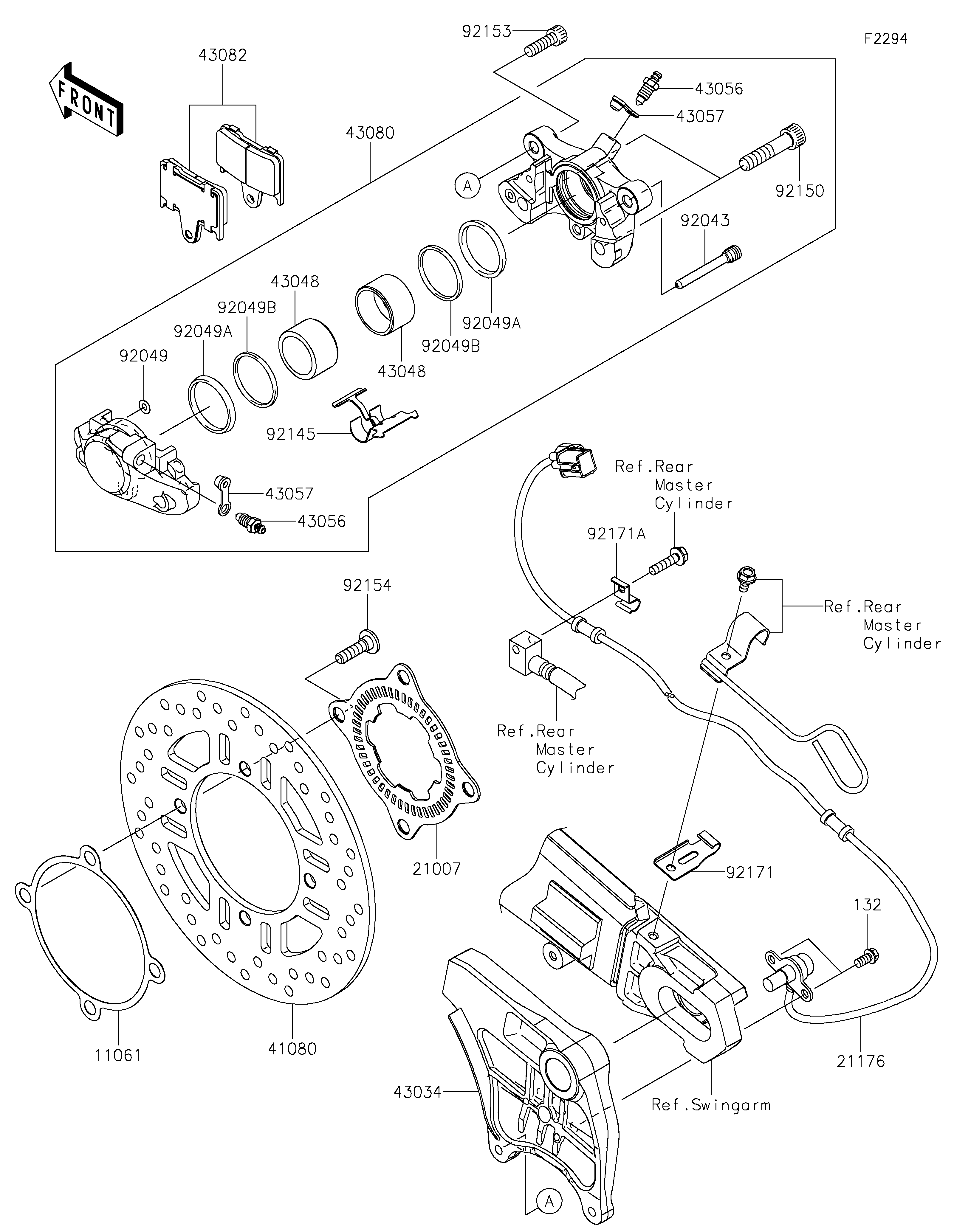

2019 NINJA® ZX™-14R ABS - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
132
21007
21176
41080
43034
43048
43048
43056
43056
43057
43057
43080
43082
92043
92049
92049A
92049A
92049B
92049B
92145
92150
92153
92154
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11061 11061-0204 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
ROTOR,SENSOR,RR 21007 21007-0141 1
SENSOR,SPEED,RR 21176 21176-0060 1
DISC,RR 41080 41080-0647 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-0091 1
PISTON-CALIPER 43048 43048-0017 2
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0088-DJ 1
PAD-ASSY-BRAKE 43082 43082-0055 1
PIN,PAD 92043 92043-0106 1
SEAL-OIL 92049 92049-1448 1
SEAL-OIL 92049A 92049-1449 2
SEAL-OIL 92049B 92049-1450 2
SPRING,PAD 92145 92145-0379 1
BOLT 92150 92150-1972 2
BOLT,SOCKET,8X25 92153 92153-1625 2
BOLT,SOCKET,8X30 92154 92154-1865 4
CLAMP 92171 92171-0619 1
CLAMP 92171A 92171-1702 1
