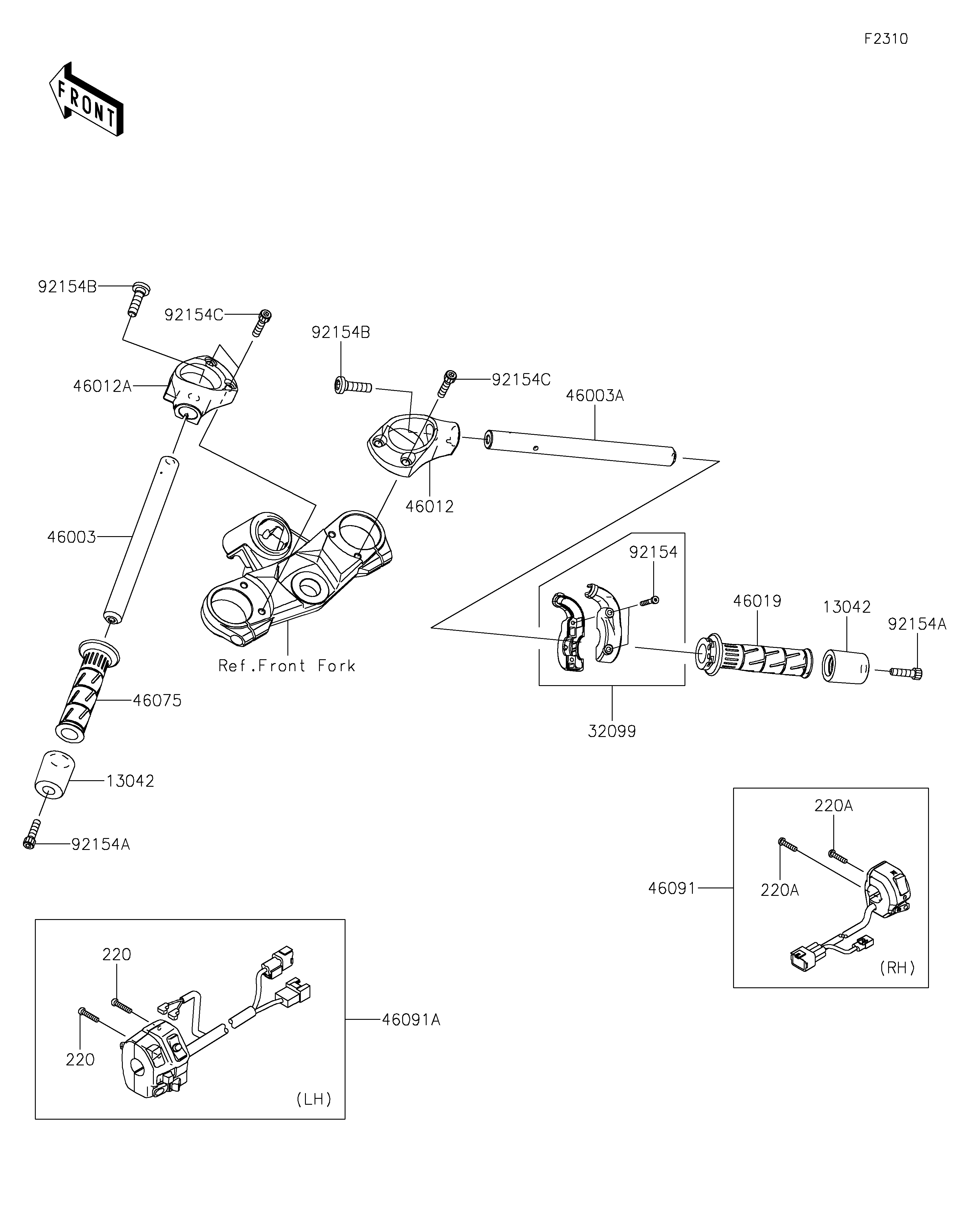

Parts Diagrams |
13042
13042
220
220
220A
220A
32099
46003
46003A
46012
46012A
46019
46075
46091
46091A
92154
92154A
92154A
92154B
92154B
92154C
92154C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WEIGHT,HANDLE | 13042 | 13042-5006 | 2 | ||
| SCREW-PAN-CROS,5X25 | 220 | 220AB0525 | 2 | ||
| SCREW-PAN-CROS,5X22 | 220A | 220C0522 | 2 | ||
| CASE,THROTTLE | 32099 | 32099-0766 | 1 | ||
| HANDLE,LH | 46003 | 46003-0564 | 1 | ||
| HANDLE,RH | 46003A | 46003-0565 | 1 | ||
| HOLDER-HANDLE,RH | 46012 | 46012-0316 | 1 | ||
| HOLDER-HANDLE,LH | 46012A | 46012-0317 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-0001 | 1 | ||
| GRIP,HANDLE,LH | 46075 | 46075-1144 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-0321 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-0331 | 1 | ||
| BOLT,SOCKET,5X35 | 92154 | 92154-1530 | 2 | ||
| BOLT,SOCKET,8X30 | 92154A | 92154-1866 | 2 | ||
| BOLT,SOCKET,10X37 | 92154B | 92154-2106 | 2 | ||
| BOLT,SOCKET,8X35 | 92154C | 92154-2129 | 4 |
