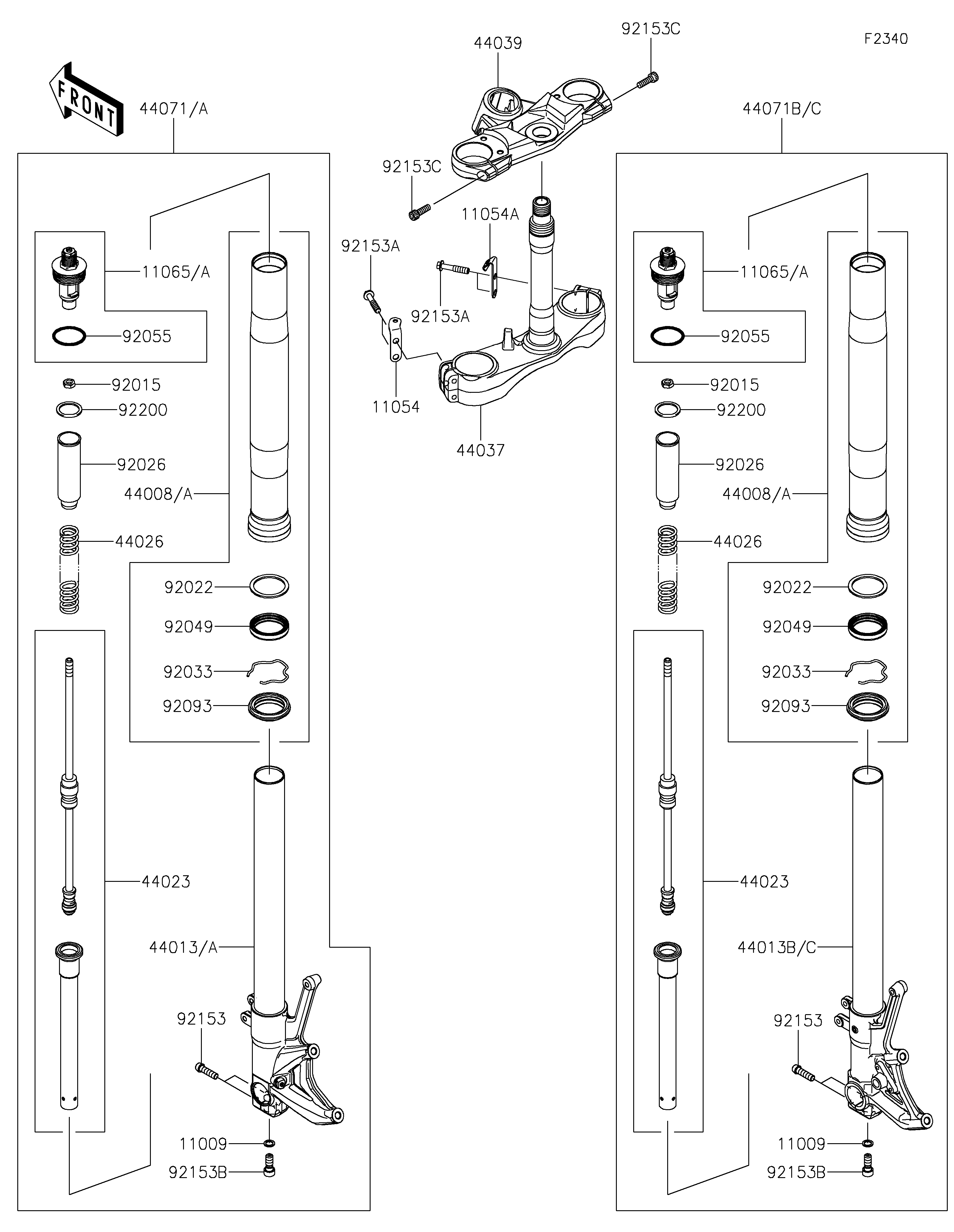

2019 NINJA® ZX™-14R ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11054
11054
11054A
11054A
11065A
11065A
11065A
11065A
44008A
44008A
44008A
44008A
44013
44013
44013B
44013B
44023
44023
44023
44023
44026
44026
44026
44026
44037
44037
44039
44039
44071A
44071A
44071C
44071C
92015
92015
92015
92015
92022
92022
92022
92022
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92093
92093
92093
92093
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X15X1.5 11009 11009-1325 2
BRACKET,HARNESS CLAMP,LH 11054 11054-0480 1
BRACKET,UNDER BRACKET,RH 11054A 11054-0481 1
CAP,GREEN 11065A 11065-0757-58R 2 _________________________________________CN
PIPE-FORK OUTER,A.BLACK 44008A 44008-0052-499 2 _________________________________________CN
PIPE-FORK INNER,LH,F.S.BLACK 44013 44013-0271-56J 1 _________________________________________CN
PIPE-FORK INNER,RH,F.S.BLACK 44013B 44013-0272-56J 1 _________________________________________CN
CYLINDER-SET-FORK 44023 44023-0096 2
SPRING-FRONT FORK 44026 44026-0160 2
HOLDER-FORK UNDER 44037 44037-0039 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0113-18R 1
DAMPER-ASSY,FORK,LH,BLACK 44071A 44071-1141-58Q 1 _________________________________________CN
DAMPER-ASSY,FORK,RH,BLACK 44071C 44071-1142-58Q 1 _________________________________________CN
NUT 92015 92015-1905 2
WASHER 92022 92022-1299 2
SPACER 92026 92026-0736 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1522 2
RING-O,FORK,AIR TUBE 92055 92055-1333 2
SEAL,FORK OUTER TUBE 92093 92093-1480 2
BOLT,SOCKET,8X40 92153 92153-0006 4
BOLT,FLANGED,8X40 92153A 92153-0484 4
BOLT,SOCKET,10X25 92153B 92153-0548 2
BOLT,SOCKET,8X25 92153C 92153-1625 2
WASHER 92200 92200-0085 2
