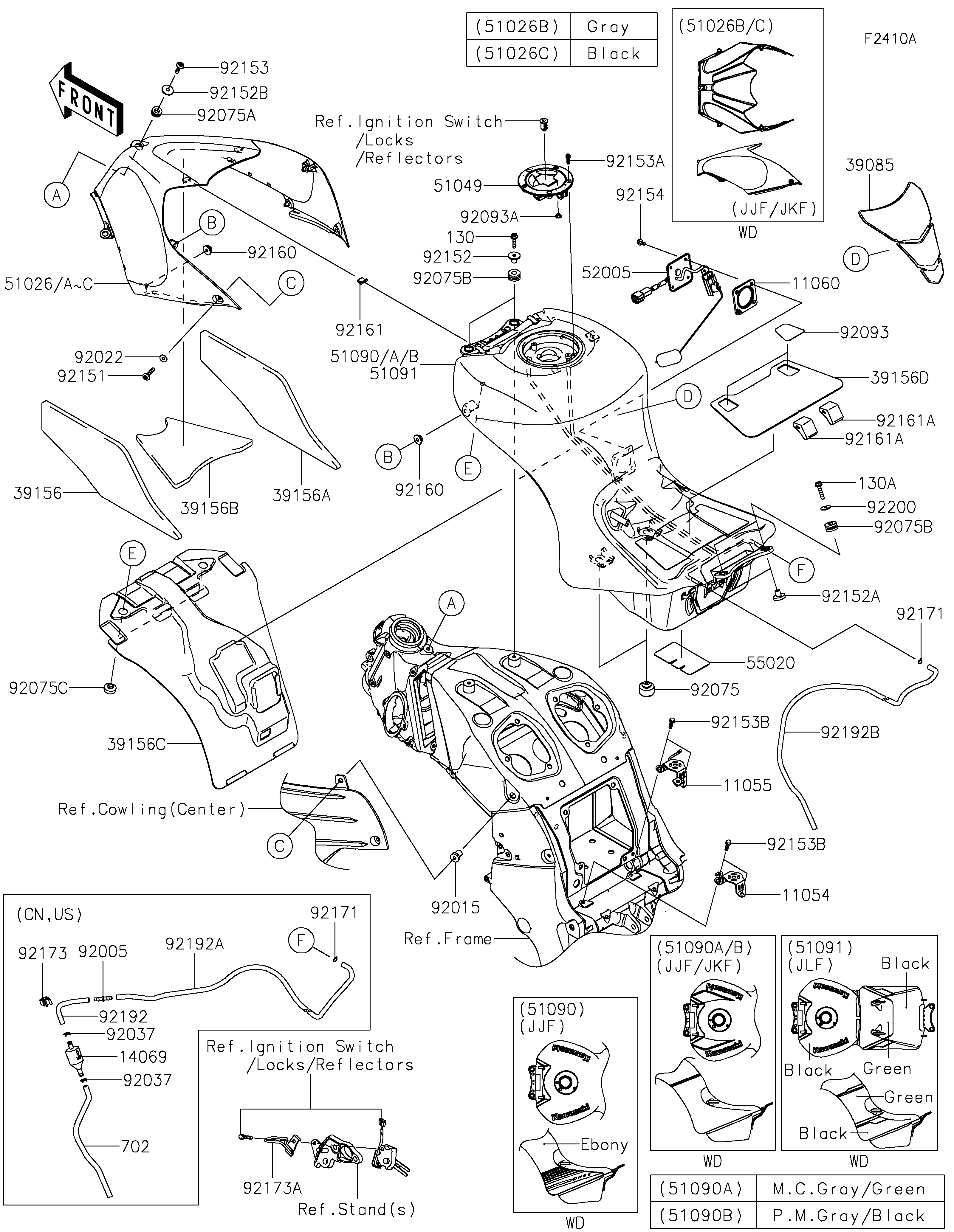

2019 NINJA® ZX™-14R ABS - Fuel Tank(JJF-JLF)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11055
11055
11060
11060
14069
14069
39085
39085
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
51026C
51026C
51049
51049
51090B
51090B
52005
52005
55020
55020
92005
92005
92015
92015
92022
92022
92037
92037
92037
92037
92075
92075
92075A
92075A
92075B
92075B
92075B
92075B
92075C
92075C
92093
92093
92093A
92093A
92151
92151
92152
92152
92152A
92152A
92152B
92152B
130
130
130A
130A
702
702
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92154
92154
92160
92160
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92171
92171
92171
92171
92173
92173
92173A
92173A
92192
92192
92192A
92192A
92192B
92192B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,CNT,LH 11054 11054-0681 1
BRACKET,FUEL TANK,CNT,RH 11055 11055-0063 1
GASKET,FUEL GAUGE 11060 11060-1952 1
BREATHER 14069 14069-0703 1 CN,US
PAD-TANK 39085 39085-0011 1
PAD,TANK COVER,LH 39156 39156-0780 1
PAD,TANK COVER,RH 39156A 39156-0781 1
PAD,TANK COVER,CNT 39156B 39156-0782 1
PAD 39156C 39156-0794 1
PAD,FUEL TANK 39156D 39156-0863 1
COVER TANK,FUEL,M.S.BLACK 51026C 51026-5115-660 1
CAP-TANK,FUEL 51049 51049-0715 1
TANK-COMP-FUEL,P.M.GRAY+BLK 51090B 51090-5391-27U 1
GAUGE,FUEL 52005 52005-0093 1
GUARD,FUEL TANK 55020 55020-0551 1
FITTING 92005 92005-0096 1 CN,US
NUT,RUBBER,6MM 92015 92015-1692 2
WASHER,6.5X16X1 92022 92022-1143 2
CLAMP,TUBE 92037 92037-147 2 CN,US
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-1634 1
DAMPER,10X24X12 92075B 92075-1690 4
DAMPER,9X24X14 92075C 92075-281 2
SEAL 92093 92093-0583 2
SEAL,FUEL TANK CAP 92093A 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR 92152 92152-0048 2
COLLAR 92152A 92152-0364 2
COLLAR 92152B 92152-0424 1
BOLT-FLANGED,6X25 130 130BA0625 2
BOLT-FLANGED,6X30 130A 130BA0630 2
TUBE-RUBBER,7X10X240 702 702A07240 1 CN,US
BOLT,SOCKET,6X23 92153 92153-1267 1
BOLT,SOCKET,5X16 92153A 92153-1616 3
BOLT,FLANGED,6X20 92153B 92153-1694 4
BOLT,FLANGED,5X12 92154 92154-1856 4
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0365 2
DAMPER 92161A 92161-1481 2
CLAMP 92171 92171-0573 1 CA
CLAMP 92171 92171-0573 2 CN,US
CLAMP,PIPE 92173 92173-0985 1 CN,US
CLAMP 92173A 92173-1029 1
TUBE,BREATHER,INNER 92192 92192-0615 1 CN,US
TUBE,BREATHER,UPP 92192A 92192-0648 1 CN,US
TUBE,DRAIN,6X9X895 92192B 92192-1675 1
WASHER,6.5X20X1.6 92200 92200-0283 2
