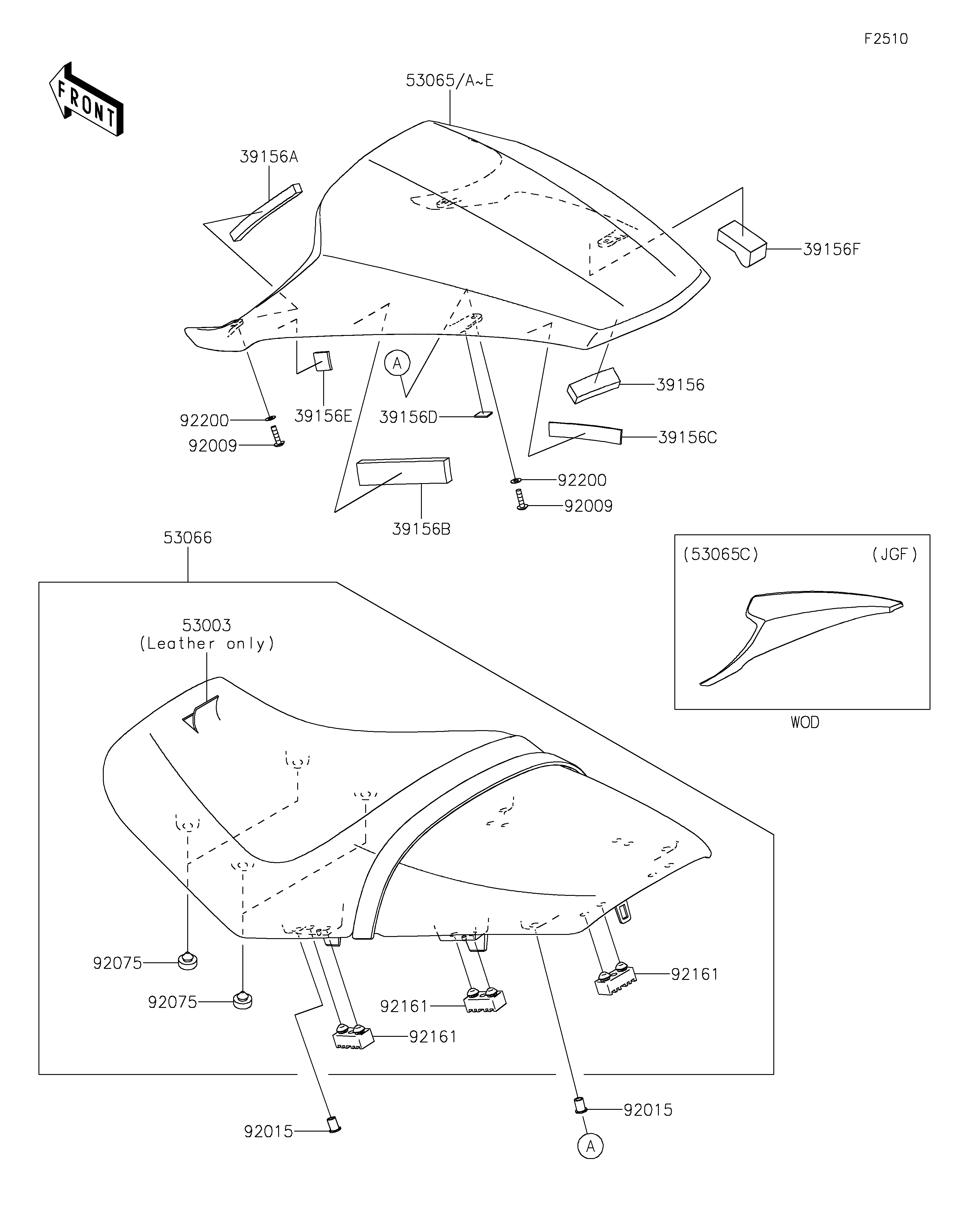

Parts Diagrams |
39156
39156A
39156B
39156C
39156D
39156E
39156F
53003
53065
53066
92009
92009
92015
92015
92075
92075
92161
92161
92161
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,20X50X11 | 39156 | 39156-0839 | 2 | ||
| PAD,10X130X10 | 39156A | 39156-0880 | 2 | ||
| PAD,25X120X10 | 39156B | 39156-0881 | 2 | ||
| PAD,15X90X2 | 39156C | 39156-0883 | 2 | ||
| PAD,12X16X1.5 | 39156D | 39156-0884 | 2 | ||
| PAD,20X20X3 | 39156E | 39156-0896 | 2 | ||
| PAD | 39156F | 39156-0919 | 1 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-0382-MA | 1 | ||
| COVER SEAT,P.M.GRAY | 53065 | 53065-0065-10H | 1 | ||
| SEAT-ASSY,DUAL,BLK+BAND BLK | 53066 | 53066-0433-12Y | 1 | ||
| SCREW,5X20 | 92009 | 92009-1934 | 4 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 4 | ||
| DAMPER,10X20X8 | 92075 | 92075-1927 | 4 | ||
| DAMPER,SEAT | 92161 | 92161-0050 | 6 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 4 |
