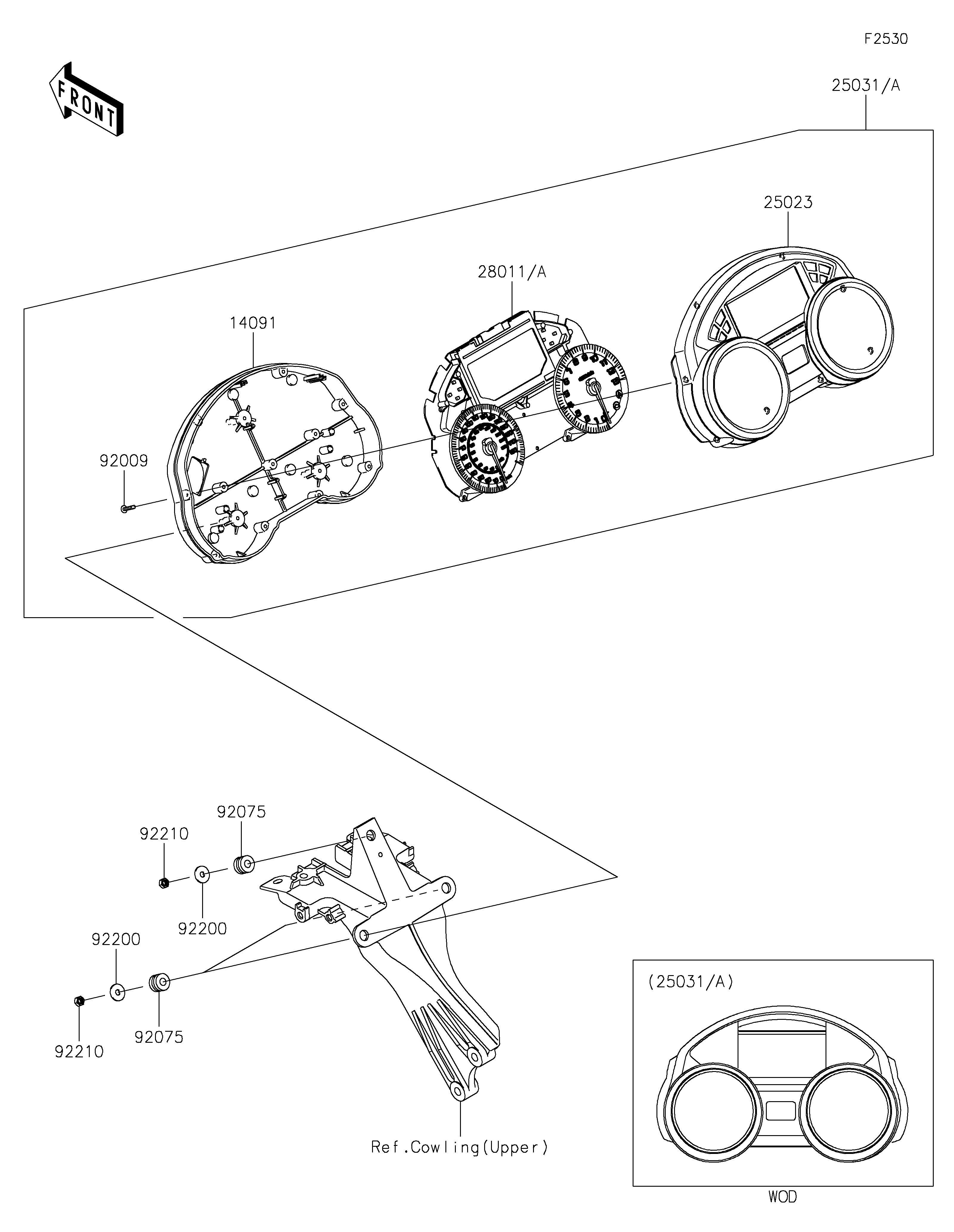

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

14091
25023
25031
25031A
28011
28011A
92009
92075
92075
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER,LWR 14091 14091-0546 1
COVER-METER CASE 25023 25023-0106 1
METER-ASSY,COMBINATION,ABS 25031 25031-0656 1 CA,US
METER-ASSY,COMBINATION,ABS 25031A 25031-0671 1 CN
METER,SP&TA&LCD 28011 28011-0640 1 CA,US
METER,SP&TA&LCD 28011A 28011-0644 1 CN
SCREW,TAPPING,3X16 92009 92009-1391 11
DAMPER 92075 92075-1435 3
WASHER 92200 92200-0288 3
NUT,5MM 92210 92210-0290 3
