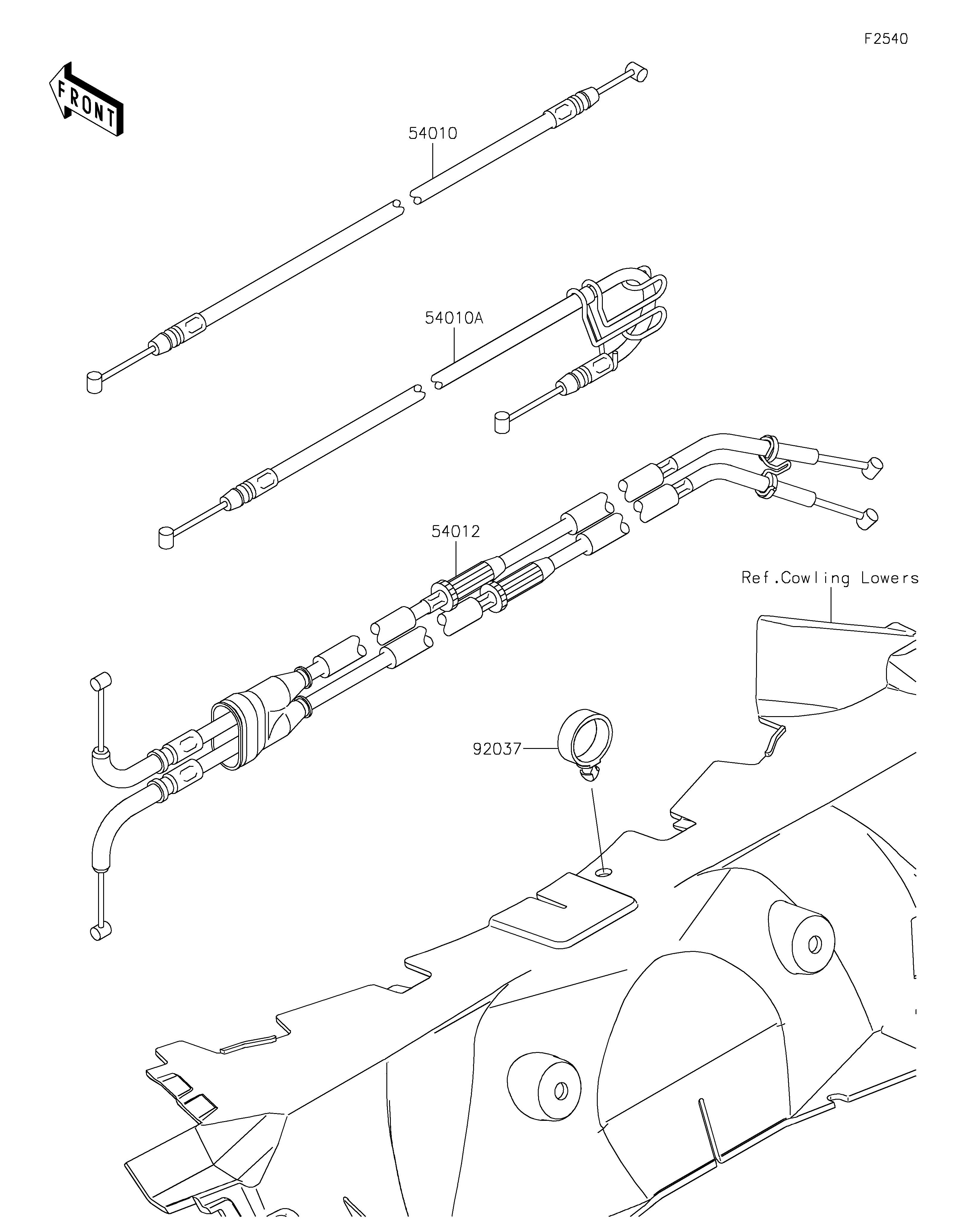

54010
54010A
54012
92037
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SEAT LOCK,RR 54010 54010-0585 1
CABLE,SEAT LOCK,FR 54010A 54010-0589 1
CABLE-THROTTLE 54012 54012-0638 1
CLAMP,HOSE 92037 92037-1827 1
