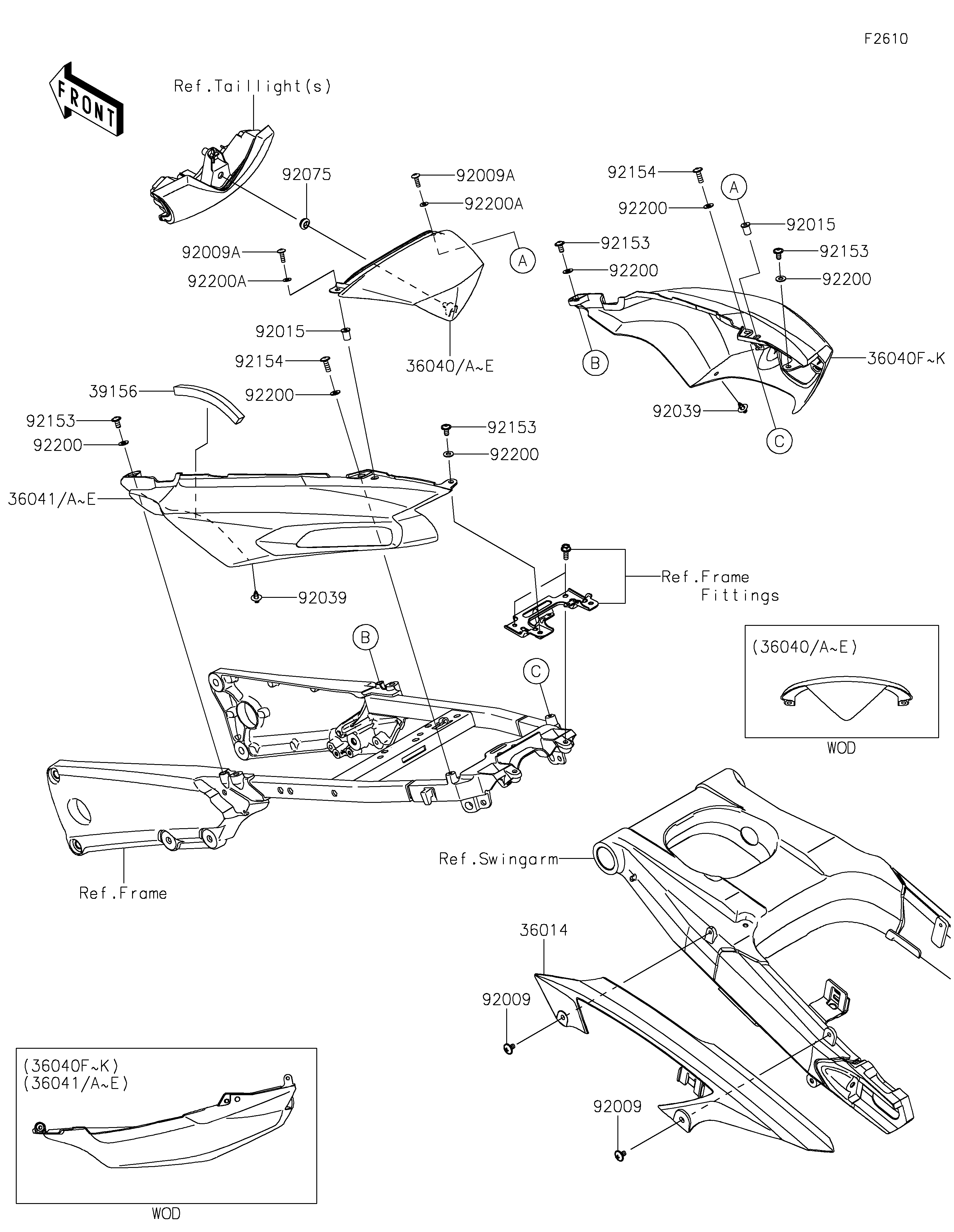

2019 NINJA® ZX™-14R ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36040E
36040K
36041E
39156
92009
92009
92009A
92009A
92015
92015
92039
92039
92075
92153
92153
92153
92153
92154
92154
92200
92200
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-0030 1
COVER-TAIL,CNT,M.S.BLACK 36040E 36040-0058-660 1 _________________________________________CN
COVER-TAIL,RH,M.S.BLACK 36040K 36040-0137-660 1 _________________________________________CN
COVER-TAIL,LH,M.S.BLACK 36041E 36041-0027-660 1 _________________________________________CN
PAD,12X124X12 39156 39156-1958 1
SCREW,6X10 92009 92009-1661 2
SCREW,5X16 92009A 92009-1909 2
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-1289 2
DAMPER,6X16X7 92075 92075-1011 1
BOLT,SOCKET,6X12 92153 92153-1617 4
BOLT,SOCKET,6X18 92154 92154-0139 2
WASHER,6.5X14X1 92200 92200-1388 6
WASHER,NYLON,5.3X11.5X0.5 92200A 92200-1480 2
