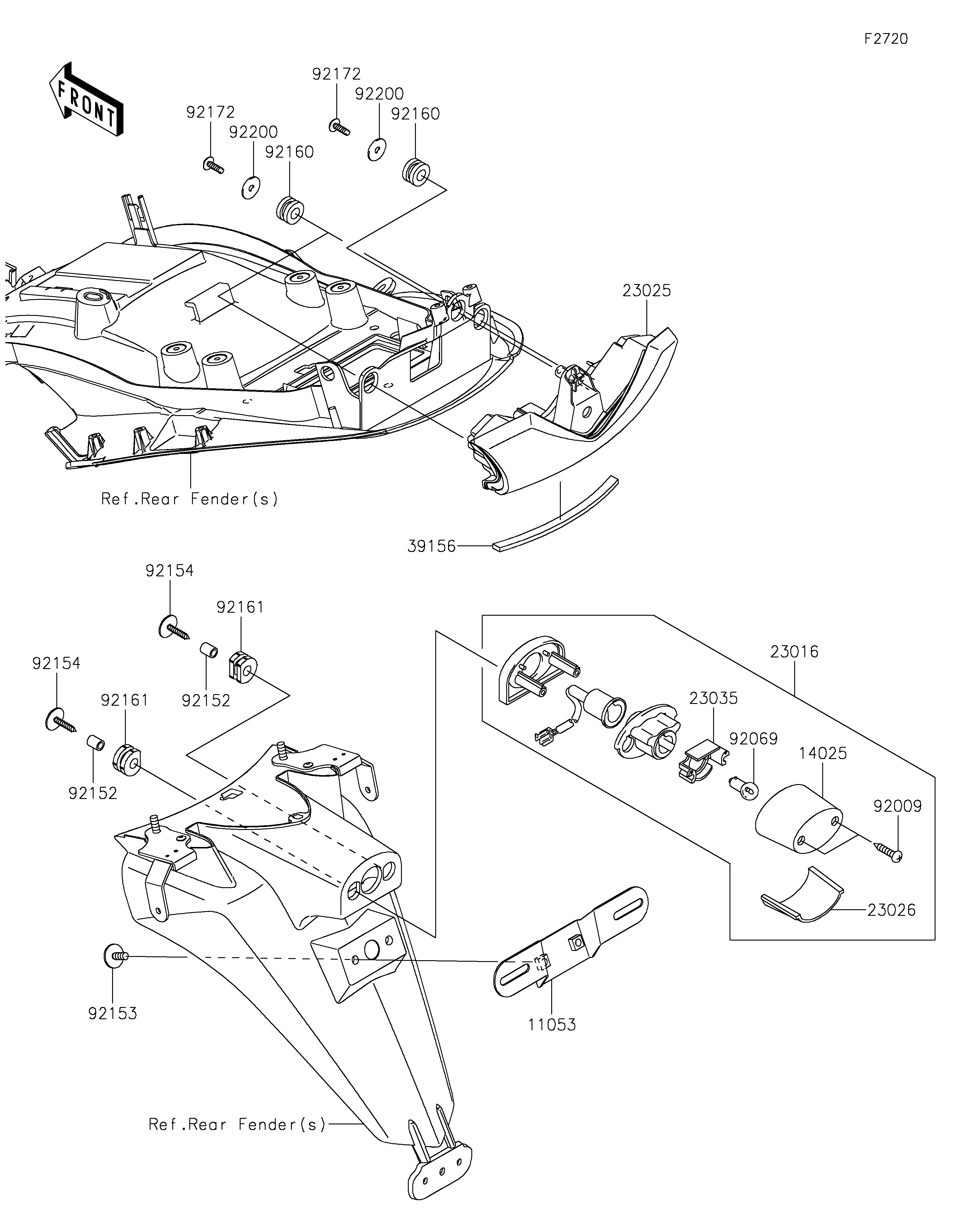

2019 NINJA® ZX™-14R ABS - Taillight(s)
11053
14025
23016
23025
23026
23035
39156
92009
92069
92152
92152
92153
92154
92154
92160
92160
92161
92161
92172
92172
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LICENSE | 11053 | 11053-0400 | 1 | ||
| COVER,LICENSE LAMP | 14025 | 14025-1725 | 1 | ||
| LAMP-ASSY,LICENSE | 23016 | 23016-0565 | 1 | ||
| LAMP-TAIL | 23025 | 23025-0359 | 1 | ||
| LENS,LICENSE LAMP | 23026 | 23026-0021 | 1 | ||
| REFLECTOR-LAMP,LICENSE | 23035 | 23035-1066 | 1 | ||
| PAD | 39156 | 39156-0869 | 1 | ||
| SCREW,TAPPING,4X20 | 92009 | 92009-1378 | 2 | ||
| BULB,12V 5W | 92069 | 92069-1055 | 1 | ||
| COLLAR,6X9X11.5 | 92152 | 92152-0372 | 2 | ||
| BOLT,6X16 | 92153 | 92153-1423 | 2 | ||
| BOLT,TAPPING,WASHER,5X25 | 92154 | 92154-0261 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 3 | ||
| DAMPER | 92161 | 92161-0776 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 3 | ||
| WASHER,5.5X20X1.2 | 92200 | 92200-0284 | 3 |
