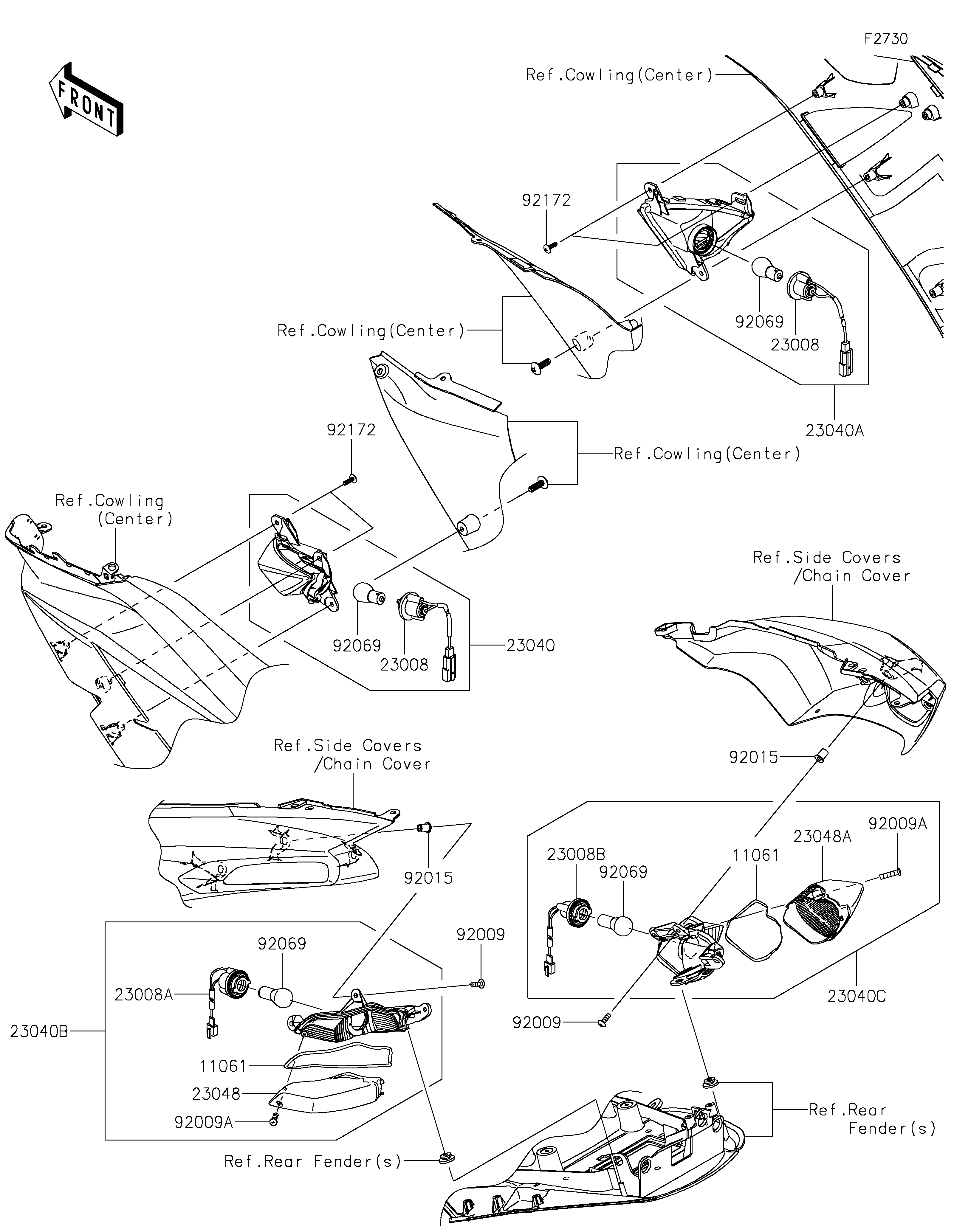

2019 NINJA® ZX™-14R ABS - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
23008
23008
23008A
23008B
23040
23040A
23040B
23040C
23048
23048A
92009
92009
92009A
92009A
92015
92015
92069
92069
92069
92069
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11061 11061-0217 2
SOCKET-ASSY,SIGNAL LAMP,FR 23008 23008-0044 2
SOCKET-ASSY,SIGNAL LAMP,RR,LH 23008A 23008-0048 1
SOCKET-ASSY,SIGNAL LAMP,RR,RH 23008B 23008-0049 1
LAMP-SIGNAL,FR,LH 23040 23040-0057 1
LAMP-SIGNAL,FR,RH 23040A 23040-0058 1
LAMP-SIGNAL,RR,LH 23040B 23040-0121 1
LAMP-SIGNAL,RR,RH 23040C 23040-0122 1
LENS-SIGNAL LAMP,RR,LH 23048 23048-0021 1
LENS-SIGNAL LAMP,RR,RH 23048A 23048-0022 1
SCREW,5X16,WHITE 92009 92009-1464 6
SCREW,TAPPING,4X16 92009A 92009-1912 2
NUT,WELL,5MM 92015 92015-1757 6
BULB,12V 21W 92069 92069-1125 4
SCREW,TAPPING,5X16 92172 92172-0238 4
