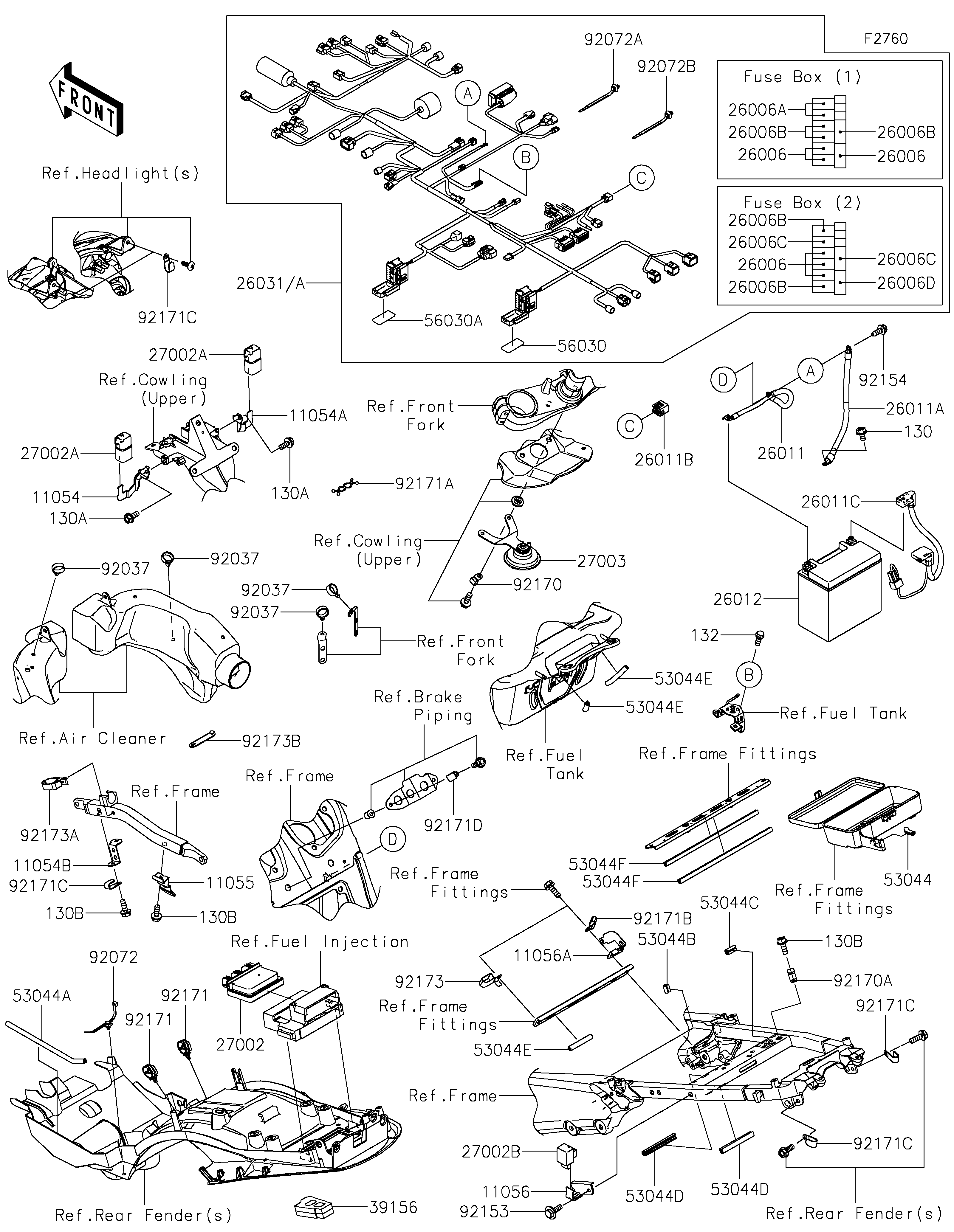

2019 NINJA® ZX™-14R ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11055
11055
11056
11056
11056A
11056A
26006
26006
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006D
26006D
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27002A
27002A
27002B
27002B
27003
27003
39156
39156
53044
53044
53044A
53044A
53044B
53044B
53044C
53044C
53044D
53044D
53044D
53044D
53044E
53044E
53044E
53044E
53044E
53044E
53044F
53044F
53044F
53044F
56030
56030
56030A
56030A
92037
92037
92037
92037
92037
92037
92037
92037
92072
92072
92072A
92072A
92072B
92072B
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
132
132
92153
92153
92154
92154
92170
92170
92170A
92170A
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171C
92171C
92171C
92171C
92171C
92171C
92171D
92171D
92173
92173
92173A
92173A
92173B
92173B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY,LH 11054 11054-0497 1
BRACKET,RELAY,RH 11054A 11054-0498 1
BRACKET,HARNESS 11054B 11054-0551 1
BRACKET,HARNESS 11055 11055-0411 1
BRACKET,SIGNAL LAMP RELAY 11056 11056-7989 1
BRACKET,HARNESS 11056A 11056-7991 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 6
FUSE,MINI BLADE,2A,GRAY 26006A 26006-0052 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 5
FUSE,MINI BLADE,20A,YELLOW 26006C 26006-1079 2
FUSE,MINI BLADE,30A,GREEN 26006D 26006-1080 1
WIRE-LEAD,BATTERY(-) 26011 26011-0087 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0255 1
WIRE-LEAD,CONNECTOR COVER 26011B 26011-0275 1
WIRE-LEAD,BATTERY(+)-STARTER 26011C 26011-0750 1
BATTERY,FTX14-BS,12V 12AH 26012 26012-0582 1
HARNESS,MAIN 26031 26031-1937 1 CN,US
HARNESS,MAIN 26031A 26031-1938 1 CA
RELAY-ASSY,BOX 27002 27002-0025 1
RELAY-ASSY 27002A 27002-1086 2
RELAY-ASSY,TURN SIGNAL 27002B 27002-1101 1
HORN 27003 27003-0069 1
PAD 39156 39156-0846 1
TRIM,L=30 53044 53044-0001 1
TRIM,L=220 53044A 53044-0022 1
TRIM,L=15 53044B 53044-0025 2
TRIM,L=22 53044C 53044-0031 1
TRIM,L=85 53044D 53044-0561 2
TRIM,L=60 53044E 53044-1249 3
TRIM,AIR DUCT COVER 53044F 53044-1265 2
LABEL,FUSE BOX2 56030 56030-0769 1
LABEL,FUSE BOX1 56030A 56030-0960 1
CLAMP,HOSE 92037 92037-1827 4
BAND 92072 92072-0066 1
BAND 92072A 92072-1392 7
BAND,OS170-FT7(BLACK) 92072B 92072-1414 2 CA
BAND,OS170-FT7(BLACK) 92072B 92072-1414 3 CN,US
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X14 130A 130BA0614 2
BOLT-FLANGED,6X16 130B 130BA0616 3
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
BOLT,6X20 92153 92153-0562 1
BOLT,FLANGED,6X16 92154 92154-0551 1
CLAMP 92170 92170-1577 1
CLAMP 92170A 92170-1925 1
CLAMP,CLIP,DIA=20 92171 92171-0068 2
CLAMP 92171A 92171-0476 1
CLAMP 92171B 92171-0689 1
CLAMP 92171C 92171-0739 5
CLAMP 92171D 92171-0813 1
CLAMP,84MM 92173 92173-1008 1
CLAMP,CABLE,28MM 92173A 92173-1062 1
CLAMP 92173B 92173-1526 1
