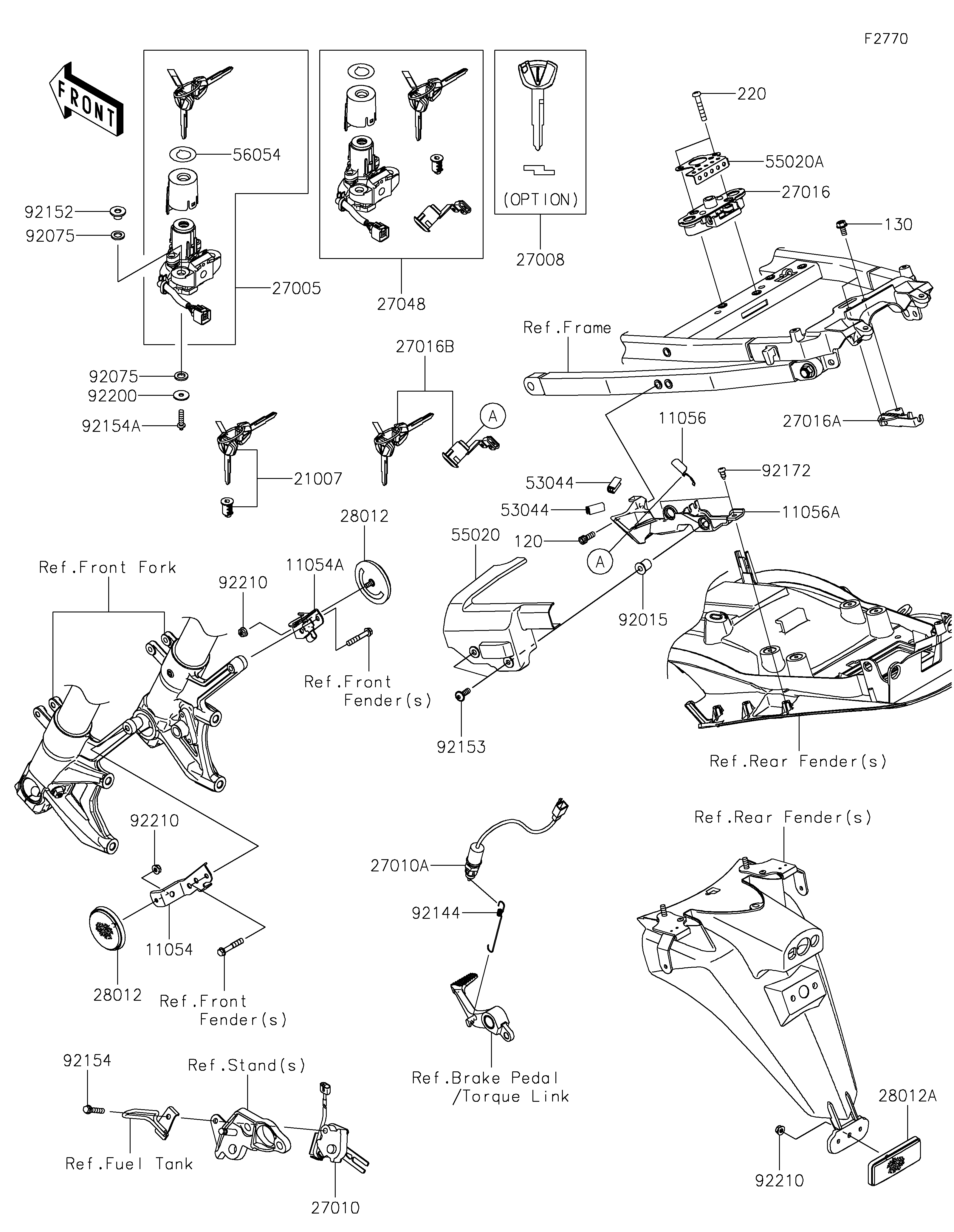

2019 NINJA® ZX™-14R ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11056
11056A
120
130
21007
220
27005
27008
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
53044
53044
55020
55020A
56054
92015
92075
92075
92144
92152
92153
92154
92154A
92172
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR,LH 11054 11054-0692 1
BRACKET,REFLECTOR,FR,RH 11054A 11054-1227 1
BRACKET,CLASP 11056 11056-0238 1
BRACKET 11056A 11056-1512 1
BOLT-SOCKET,6X16 120 120CA0616 1
BOLT-FLANGED,6X12 130 130BA0612 2
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SCREW-PAN-CROS,6X35 220 220AA0635 2
SWITCH-ASSY-IGNITION 27005 27005-0568 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0064 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0035 1
LOCK-ASSY,SEAT STRIKER 27016A 27016-1115 1
LOCK-ASSY,SEAT 27016B 27016-5374 1
SWITCH-ASSY 27048 27048-5013 1
REFLECTOR-REFLEX 28012 28012-0008 2
REFLECTOR-REFLEX 28012A 28012-1077 1
TRIM,L=22 53044 53044-0031 2
GUARD,CABLE 55020 55020-0816 1
GUARD,SEAT STRIKER 55020A 55020-0855 1
MARK,IGNITION SWITCH 56054 56054-0969 1
NUT 92015 92015-1700 2
DAMPER 92075 92075-1564 4
SPRING,REAR BRAKE SWITCH 92144 92144-1753 1
COLLAR,6.2X10.3X10 92152 92152-1611 2
BOLT,6X18 92153 92153-0478 2
BOLT,FLANGED,6X30 92154 92154-1857 1
BOLT,TORX,6X22 92154A 92154-1858 2
SCREW,TAPPING,5X12 92172 92172-0239 2
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 3
