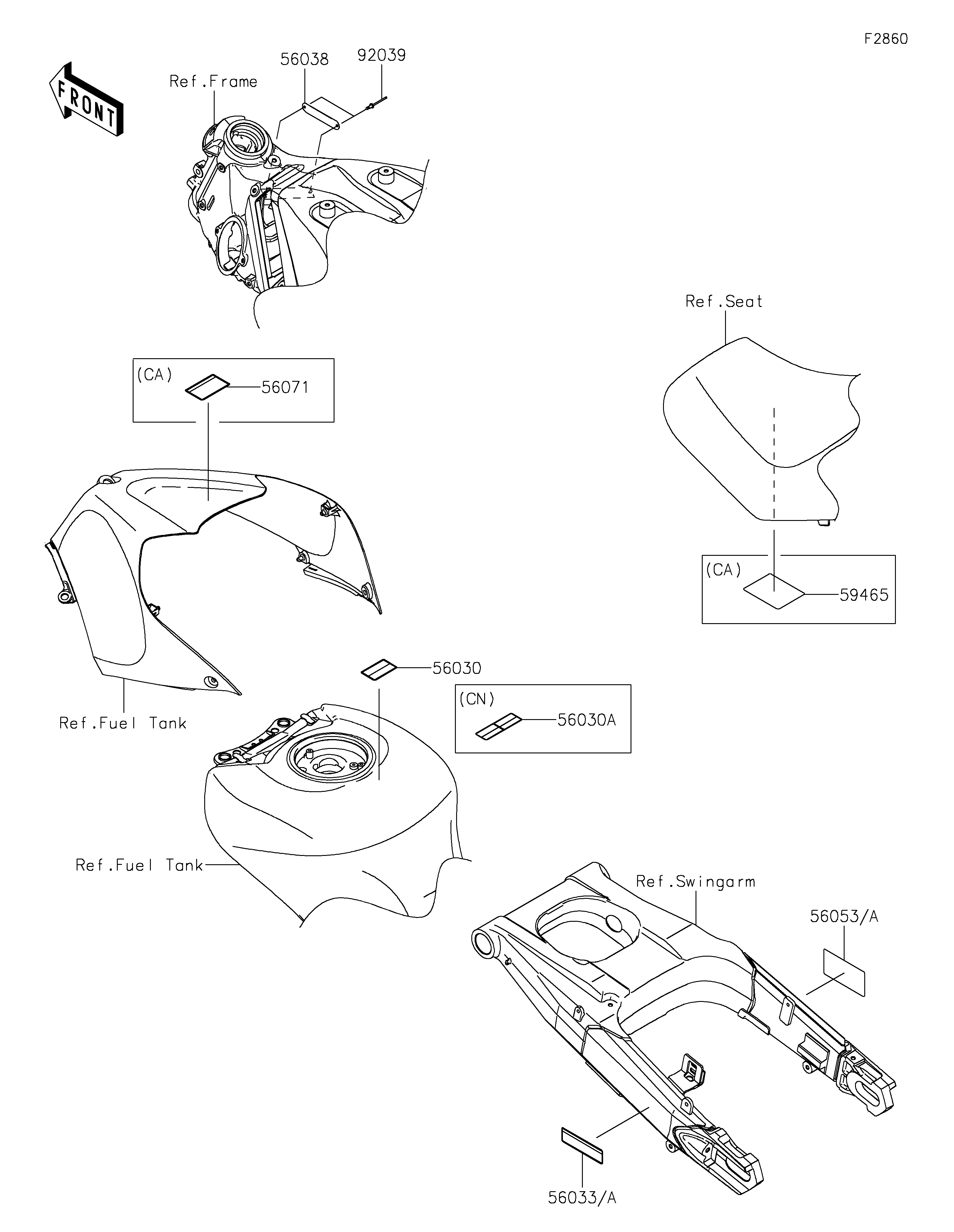

56030
56030A
56033
56033A
56038
56053
56053A
56071
59465
92039
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-0357 1 CA,US
LABEL,GASOLINE 56030A 56030-0358 1 CN
LABEL-MANUAL,CHAIN 56033 56033-0875 1
LABEL-MANUAL,CHAIN 56033A 56033-0877 1 CN
LABEL-BRAND,KAWASAKI 56038 56038-1054 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0957 1
LABEL-SPECIFICATION,TIRE&LOAD 56053A 56053-0959 1 CN
LABEL-WARNING,EVAPO 56071 56071-0158 1 CA
LABEL-CERTIFICATION,EVAPO 59465 59465-0855 1 CA
RIVET 92039 92039-1251 2
