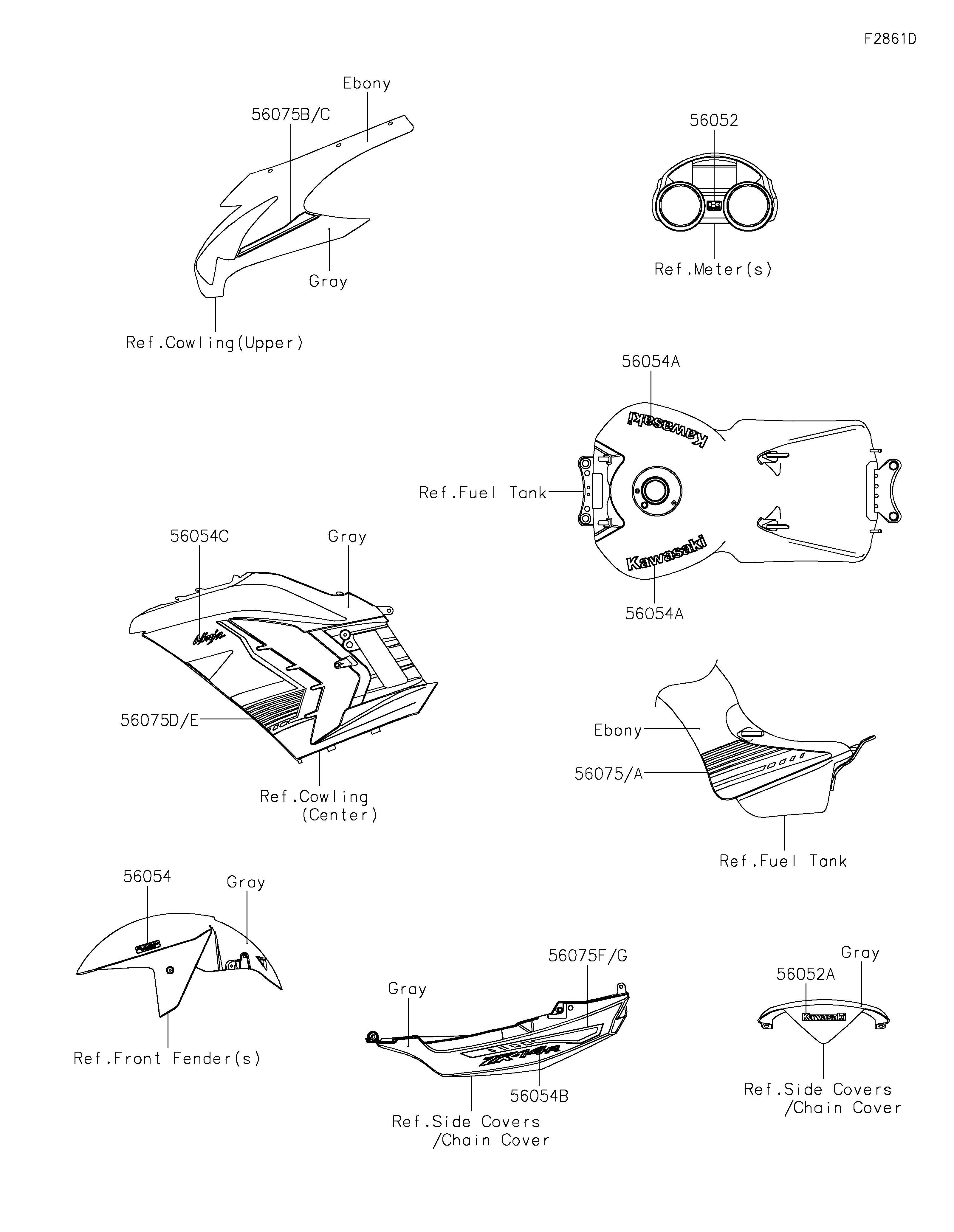

2018 NINJA® ZX™-14R ABS SE - Decals(Gray)(JJF)(CA,US)
56052
56052A
56054
56054A
56054A
56054B
56054C
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | CA,US | |
| MARK,TAIL COVER,KAWASAKI | 56052A | 56052-1606 | 1 | CA,US | |
| MARK,FR FENDER,KTRC ABS | 56054 | 56054-1115 | 2 | CA,US | |
| MARK,FUEL TANK,KAWASAKI | 56054A | 56054-1978 | 2 | CA,US | |
| MARK,TAIL COVER,ZX-14R | 56054B | 56054-1980 | 2 | CA,US | |
| MARK,SIDE COWL.,NINJA,3D | 56054C | 56054-2356 | 2 | CA,US | |
| PATTERN,FUEL TANK,LH | 56075 | 56075-3916 | 1 | CA,US | |
| PATTERN,FUEL TANK,RH | 56075A | 56075-3917 | 1 | CA,US | |
| PATTERN,UPP COWL.,LH | 56075B | 56075-3918 | 1 | CA,US | |
| PATTERN,UPP COWL.,RH | 56075C | 56075-3919 | 1 | CA,US | |
| PATTERN,SIDE COWL.,LH,CNT | 56075D | 56075-3920 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,CNT | 56075E | 56075-3921 | 1 | CA,US | |
| PATTERN,TAIL COVER,LH | 56075F | 56075-3922 | 1 | CA,US | |
| PATTERN,TAIL COVER,RH | 56075G | 56075-3923 | 1 | CA,US |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,TAIL COVER,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FR FENDER,KTRC ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,TAIL COVER,ZX-14R | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,SIDE COWL.,NINJA,3D | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
