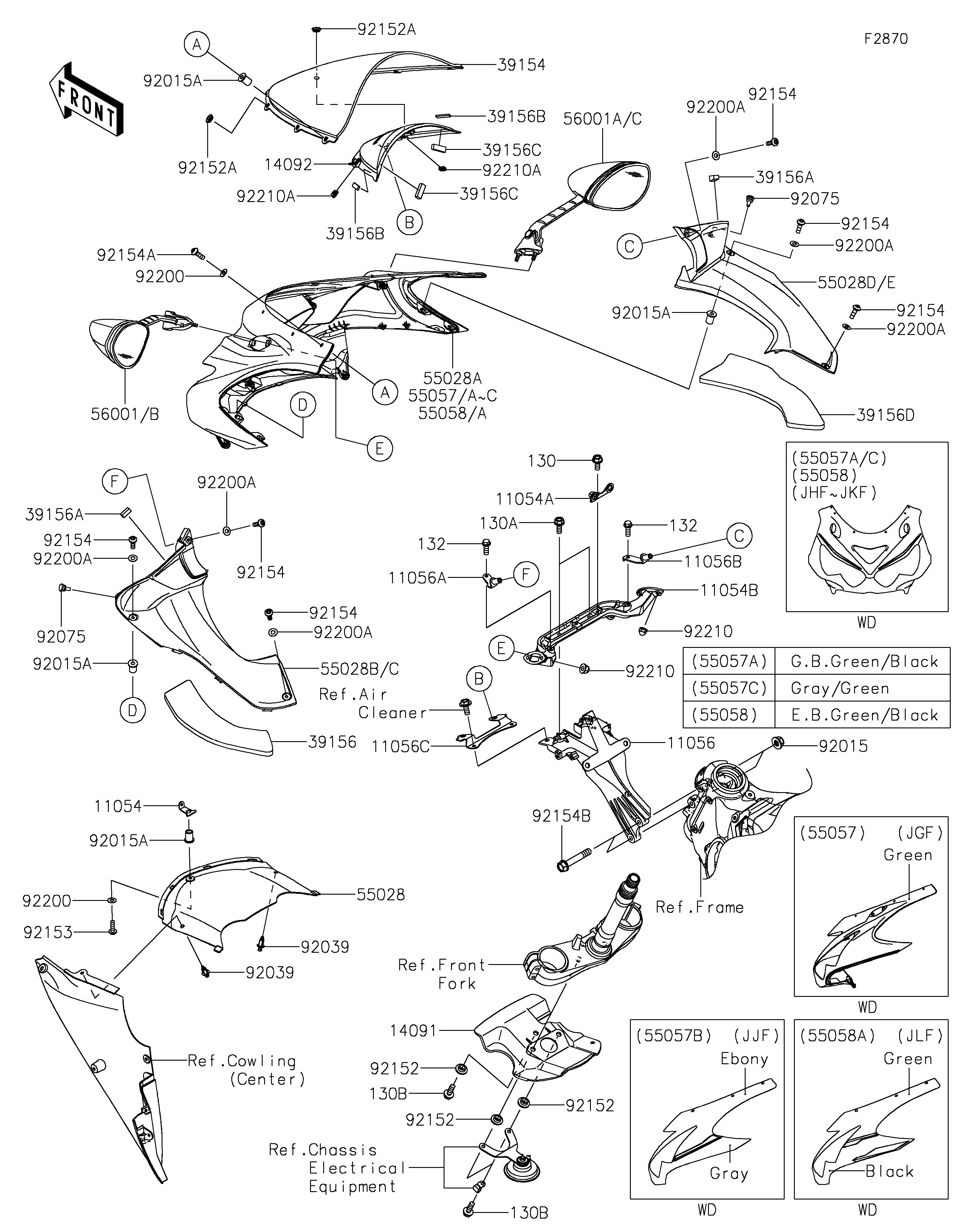

2019 NINJA® ZX™-14R ABS - Cowling(Upper)
11054
11054
11054A
11054A
11054B
11054B
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14091
14091
14092
14092
39154
39154
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
55028
55028
55028B
55028B
55028D
55028D
55058
55058
56001B
56001B
56001C
56001C
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92039
92039
92039
92039
92075
92075
92075
92075
92152
92152
92152
92152
92152
92152
130
130
130A
130A
130B
130B
130B
130B
132
132
132
132
92152A
92152A
92152A
92152A
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210A
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,UPP COWLING | 11054 | 11054-0180 | 1 | ||
| BRACKET,DOWN SENSOR | 11054A | 11054-0239 | 1 | ||
| BRACKET,MIRROR | 11054B | 11054-1307 | 1 | ||
| BRACKET,METER | 11056 | 11056-1544 | 1 | ||
| BRACKET,INNER COWLING,LH | 11056A | 11056-2211 | 1 | ||
| BRACKET,INNER COWLING,RH | 11056B | 11056-2212 | 1 | ||
| BRACKET | 11056C | 11056-2273 | 1 | ||
| COVER,RADIATOR | 14091 | 14091-0624 | 1 | ||
| COVER,METER,F.BLACK | 14092 | 14092-0985-6Z | 1 | ||
| WINDSHIELD | 39154 | 39154-0014 | 1 | ||
| PAD,INNER COWLING,LH | 39156 | 39156-0777 | 1 | ||
| PAD | 39156A | 39156-0876 | 2 | ||
| PAD,8X30X3 | 39156B | 39156-0930 | 2 | ||
| PAD,8X30X10 | 39156C | 39156-0931 | 2 | ||
| PAD,INNER COWLING,RH | 39156D | 39156-1998 | 1 | ||
| COWLING,FR,CNT | 55028 | 55028-0095 | 1 | ||
| COWLING,INNER,LH,CARBON | 55028B | 55028-0622-53S | 1 | ||
| COWLING,INNER,RH,CARBON | 55028D | 55028-0623-53S | 1 | ||
| COWLING,UPP,E.B.GREEN+BLK | 55058 | 55058-5211-62Q | 1 | ||
| MIRROR-ASSY,LH | 56001B | 56001-0397 | 1 | ||
| MIRROR-ASSY,RH | 56001C | 56001-0398 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 7 | ||
| RIVET | 92039 | 92039-0023 | 2 | ||
| DAMPER,6X10X15 | 92075 | 92075-1808 | 2 | ||
| COLLAR,6.5X10X5.6 | 92152 | 92152-0445 | 3 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 1 | ||
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 2 | ||
| BOLT-FLANGED,6X18 | 130B | 130BA0618 | 3 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 | ||
| COLLAR,5.2X9.9X3.7 | 92152A | 92152-1690 | 2 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 1 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0026 | 6 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-0209 | 6 | ||
| BOLT,FLANGED,8X48 | 92154B | 92154-1296 | 2 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 7 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200A | 92200-1480 | 6 | ||
| NUT,CAP,6MM | 92210 | 92210-0322 | 4 | ||
| NUT | 92210A | 92210-0571 | 2 |
