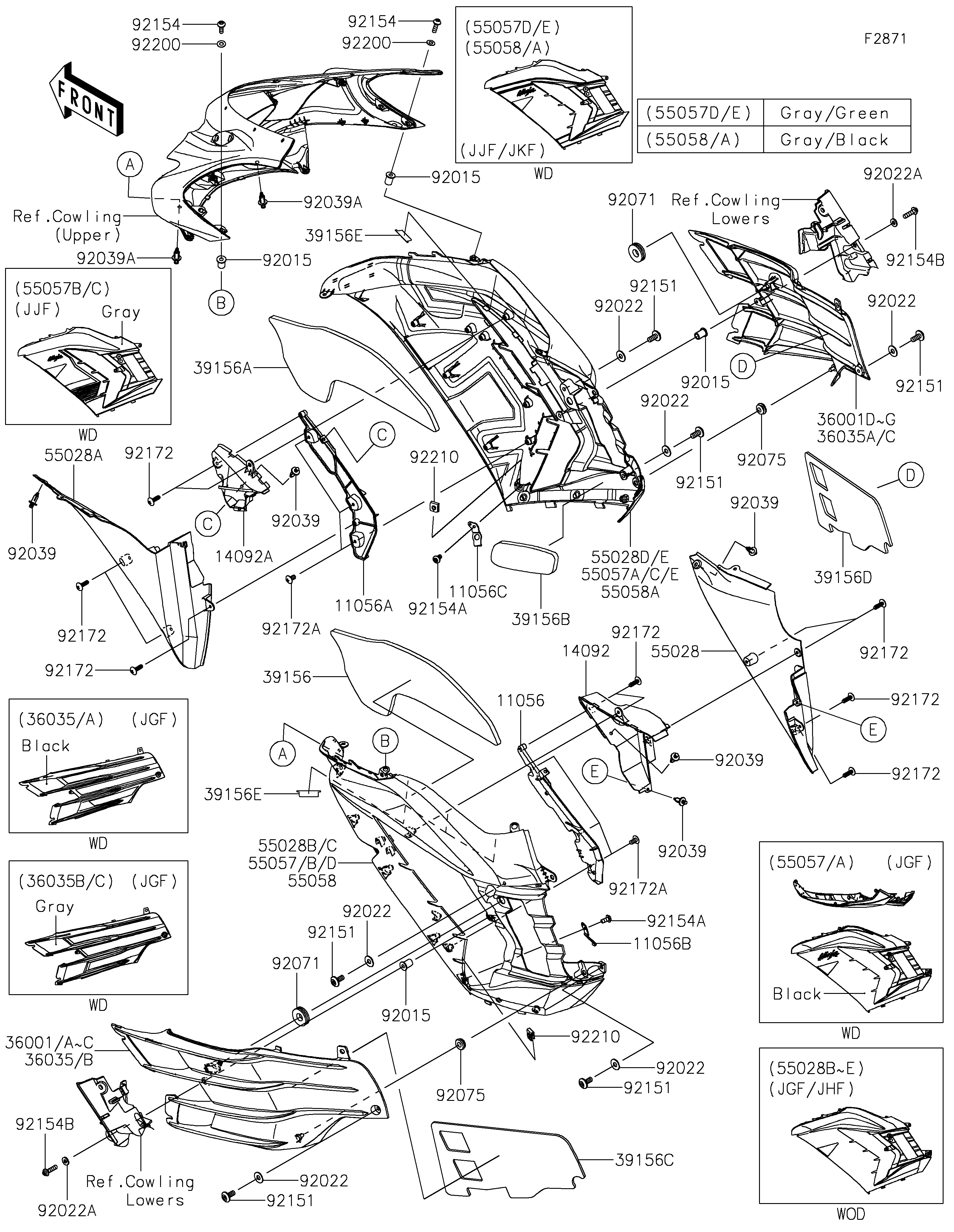

2019 NINJA® ZX™-14R ABS - Cowling(Center)(JGF-JKF)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14092
14092
14092A
14092A
36001
36001
36001D
36001D
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156E
39156E
55028
55028
55028A
55028A
55058
55058
55058A
55058A
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92075
92075
92075
92075
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COWLING,LH 11056 11056-1343 1
BRACKET,SIDE COWLING,RH 11056A 11056-1344 1
BRACKET,LWR COWLING,LH 11056B 11056-1366 1
BRACKET,LWR COWLING,RH 11056C 11056-1367 1
COVER,SIDE COWLING,LH 14092 14092-0861 1
COVER,SIDE COWLING,RH 14092A 14092-0986 1
COVER-SIDE,LH,P.M.GRAY 36001 36001-0568-10H 1
COVER-SIDE,RH,P.M.GRAY 36001D 36001-0569-10H 1
PAD,SIDE COWLING,LH 39156 39156-0783 1
PAD,SIDE COWLING,RH 39156A 39156-0784 1
PAD,SIDE COWLING,RH,LWR 39156B 39156-0785 1
PAD,SIDE COVER,LH 39156C 39156-0877 1
PAD,SIDE COVER,RH 39156D 39156-0878 1
PAD 39156E 39156-0911 6
COWLING,FR,LH 55028 55028-0383 1
COWLING,FR,RH 55028A 55028-0457 1
COWLING,SIDE,LH,P.M.GRAY+BLK 55058 55058-5306-27U 1
COWLING,SIDE,RH,P.M.GRAY+BLK 55058A 55058-5307-27U 1
NUT,WELL,5MM 92015 92015-1757 4
WASHER,6.5X16X1 92022 92022-1143 6
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 2
RIVET 92039 92039-0051 5
RIVET 92039A 92039-0060 2
GROMMET 92071 92071-056 2
DAMPER,6X16X7 92075 92075-1011 2
BOLT,SOCKET,6X14 92151 92151-1654 6
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,5X10 92154A 92154-0211 2
BOLT,SOCKET,5X20 92154B 92154-0829 2
SCREW,TAPPING,5X16 92172 92172-0238 11
SCREW,TAPPING,5X10 92172A 92172-0262 6
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
NUT 92210 92210-0571 2
