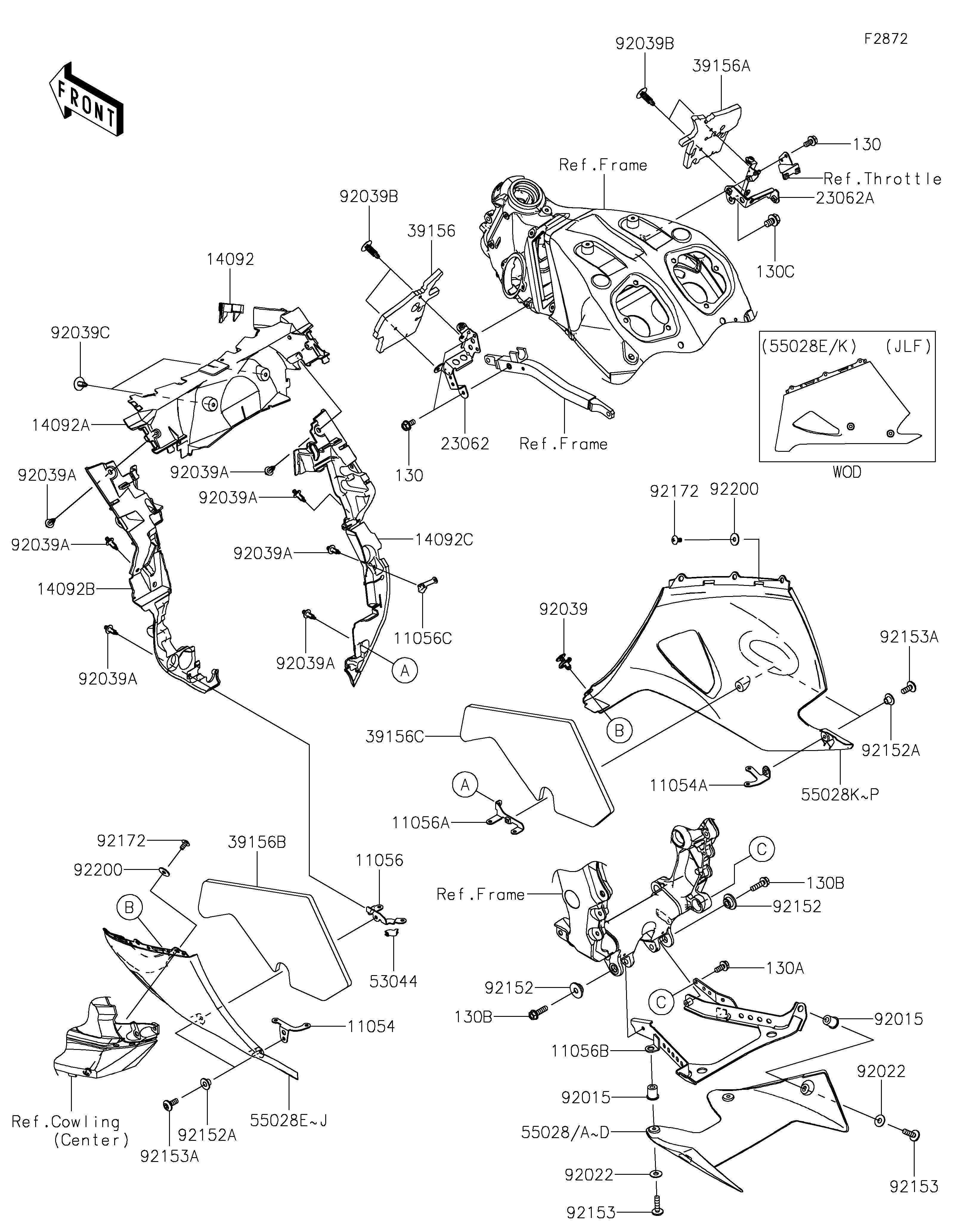

2019 NINJA® ZX™-14R ABS - Cowling Lowers
11054
11054
11054A
11054A
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
23062
23062
23062A
23062A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
53044
53044
55028D
55028D
55028J
55028J
55028P
55028P
130
130
130
130
130A
130A
130B
130B
130B
130B
130C
130C
92015
92015
92015
92015
92022
92022
92022
92022
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039C
92039C
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92172
92172
92172
92172
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING,RR,LH | 11054 | 11054-0562 | 1 | ||
| BRACKET,LWR COWLING,RR,RH | 11054A | 11054-0563 | 1 | ||
| BRACKET,LWR COWLING,FR,LH | 11056 | 11056-1097 | 1 | ||
| BRACKET,LWR COWLING,FR,RH | 11056A | 11056-1098 | 1 | ||
| BRACKET,LWR COWLING | 11056B | 11056-1336 | 1 | ||
| BRACKET,HEAT GUARD,RH | 11056C | 11056-1370 | 1 | ||
| COVER,RADIATOR CAP | 14092 | 14092-0136 | 1 | ||
| COVER,HEAT GUARD,FR | 14092A | 14092-0830 | 1 | ||
| COVER,HEAT GUARD,LH | 14092B | 14092-0994 | 1 | ||
| COVER,HEAT GUARD,RH | 14092C | 14092-0995 | 1 | ||
| BRACKET-COMP,LH | 23062 | 23062-0716 | 1 | ||
| BRACKET-COMP,RH | 23062A | 23062-0717 | 1 | ||
| PAD,TANK SIDE,LH | 39156 | 39156-0739 | 1 | ||
| PAD,TANK SIDE,RH | 39156A | 39156-0779 | 1 | ||
| PAD,LWR COWLING,LH | 39156B | 39156-0788 | 1 | ||
| PAD,LWR COWLING,RH | 39156C | 39156-0789 | 1 | ||
| TRIM,L=22 | 53044 | 53044-0031 | 1 | ||
| COWLING,LWR,RR,M.S.BLACK | 55028D | 55028-0063-660 | 1 | _________________________________________CN | |
| COWLING,LWR,LH,M.S.BLACK | 55028J | 55028-0473-660 | 1 | ||
| COWLING,LWR,RH,M.S.BLACK | 55028P | 55028-0474-660 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 3 | ||
| BOLT-FLANGED,6X14 | 130A | 130BA0614 | 1 | ||
| BOLT-FLANGED,6X22 | 130B | 130BA0622 | 2 | ||
| BOLT-FLANGED,8X12 | 130C | 130BA0812 | 1 | ||
| NUT | 92015 | 92015-1700 | 4 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 4 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0051 | 7 | ||
| RIVET | 92039B | 92039-0090 | 4 | ||
| RIVET | 92039C | 92039-1289 | 2 | ||
| COLLAR | 92152 | 92152-0378 | 2 | ||
| COLLAR,6.3X8.3X7.6 | 92152A | 92152-2133 | 4 | ||
| BOLT,SOCKET,6X23 | 92153 | 92153-1267 | 4 | ||
| BOLT,SOCKET,6X16 | 92153A | 92153-1526 | 4 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 2 | ||
| WASHER | 92200 | 92200-0288 | 2 |
