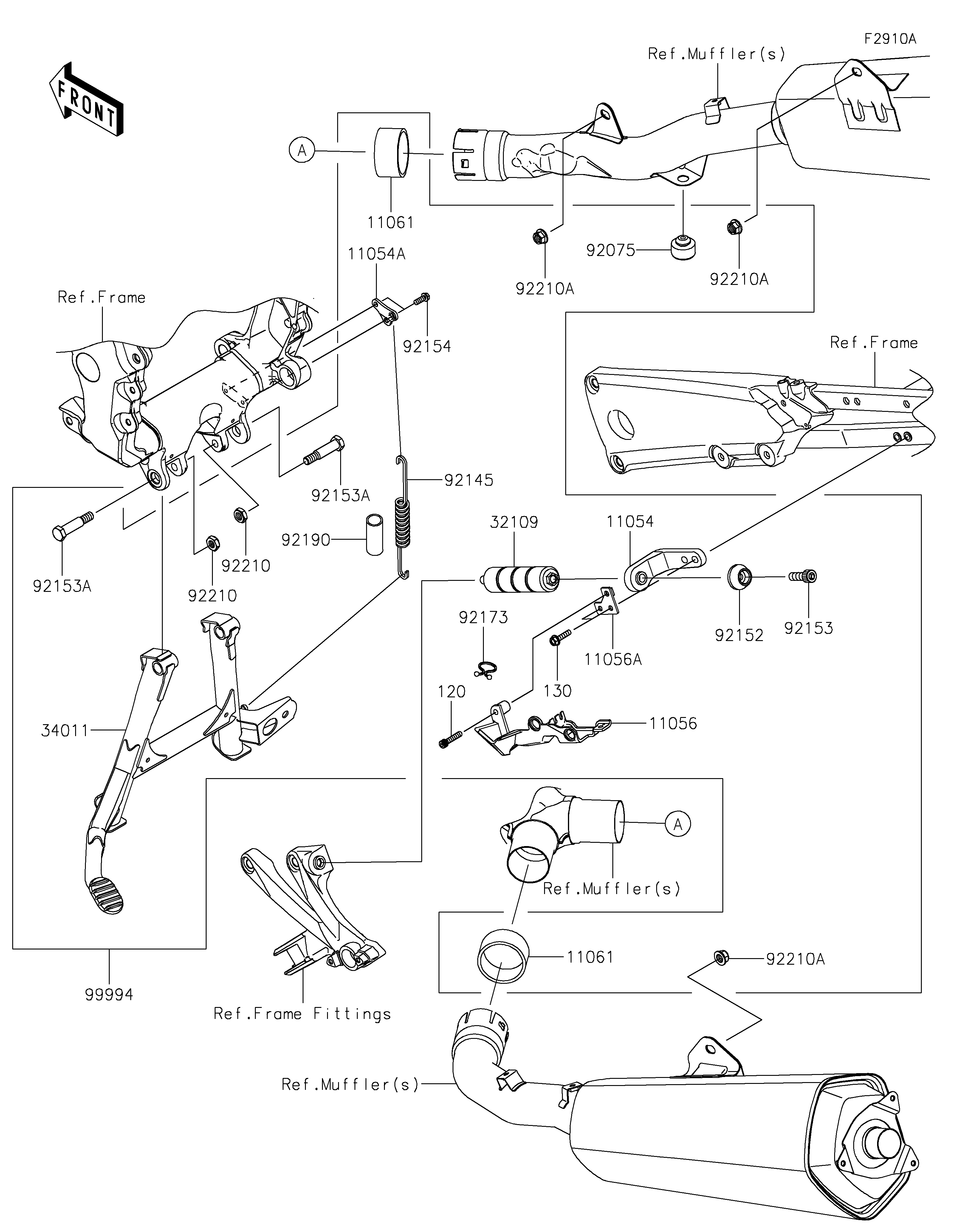

2019 NINJA® ZX™-14R ABS - Accessory(Center Stand)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11056
11056A
11061
11061
120
130
32109
34011
92075
92145
92152
92153
92153A
92153A
92154
92173
92190
92210
92210
92210A
92210A
92210A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CENTER STAND GRIP 11054 11054-0452 1
BRACKET,CENTER STAND SPRING 11054A 11054-0744 1
BRACKET 11056 11056-1819 1
BRACKET 11056A 11056-1820 1
GASKET,54X62X30 11061 11061-0448 2
BOLT-SOCKET,6X30 120 120CA0630 1
BOLT-FLANGED,6X25 130 130BA0625 2
GRIP-FRAME,CENTER STAND 32109 32109-0021 1
STAND-CENTER 34011 34011-0061 1
DAMPER 92075 92075-015 1
SPRING,CENTER STAND 92145 92145-0362 1
COLLAR 92152 92152-0668 1
BOLT,SOCKET,10X30 92153 92153-1524 1
BOLT,CENTER STAND,10MM 92153A 92153-1593 2
BOLT,FLANGED,6X14 92154 92154-1867 2
CLAMP 92173 92173-0848 1
TUBE,16.5X20.5X55 92190 92190-1462 1
NUT,LOCK,10MM 92210 92210-0278 2
NUT,10X1.25 92210A 92210-0316 3
KIT-ACCESSORY,MAIN STAND 99994 99994-0751 1
