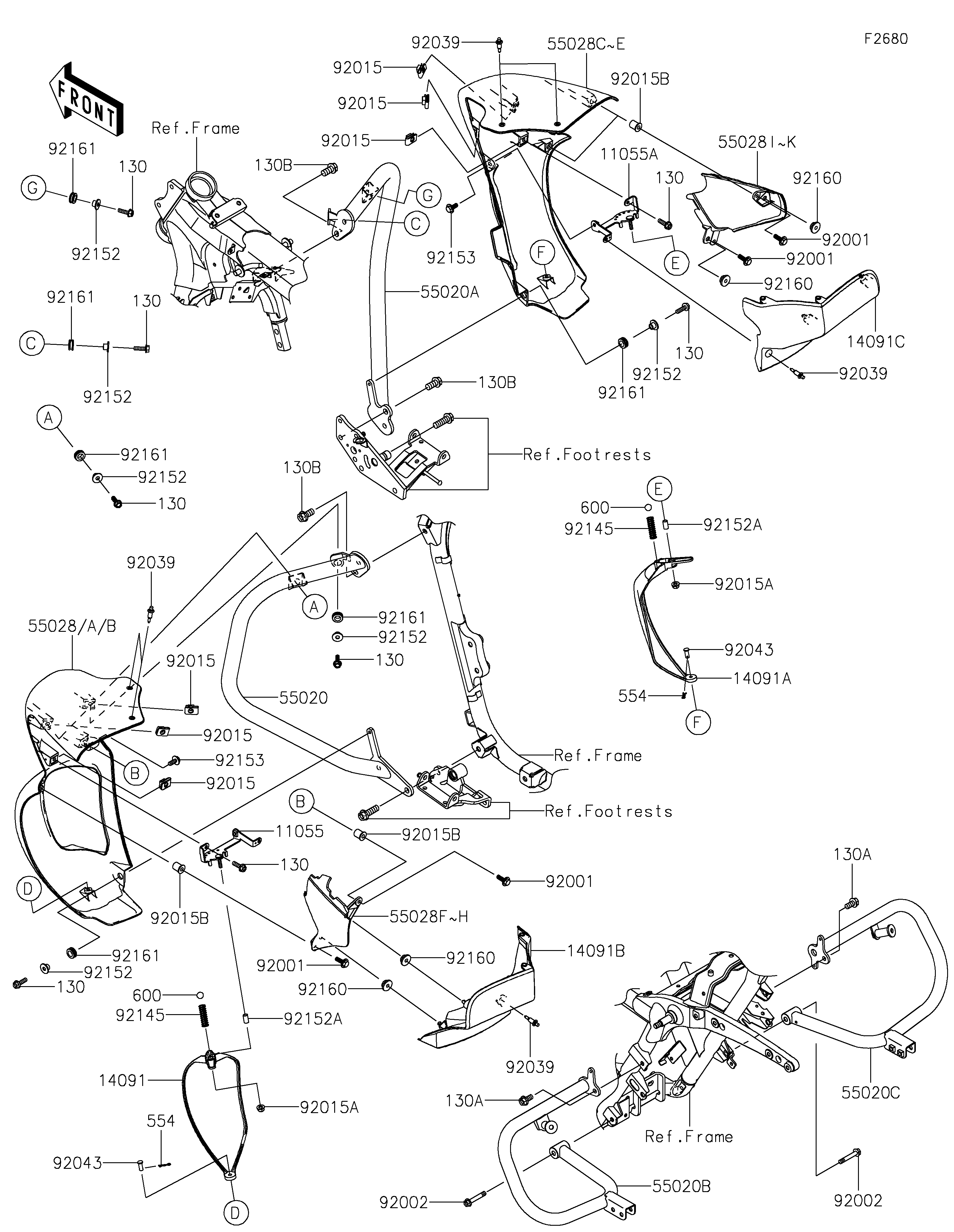

2019 VULCAN® 1700 VOYAGER® ABS - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
130
130
130
130
130
130
130
130
130A
130A
130B
130B
130B
14091
14091A
14091B
14091C
55020
55020A
55020B
55020C
55028
55028C
55028F
55028I
554
554
600
600
92001
92001
92001
92001
92002
92002
92015
92015
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015B
92039
92039
92039
92039
92043
92043
92145
92145
92152
92152
92152
92152
92152
92152
92152A
92152A
92153
92153
92160
92160
92160
92160
92161
92161
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VENTILATION,LH,UPP 11055 11055-0687 1
BRACKET,VENTILATION,RH,UPP 11055A 11055-0688 1
BOLT-FLANGED,6X20 130 130BA0620 8
BOLT-FLANGED,8X16 130A 130BA0816 2
BOLT-FLANGED,10X20 130B 130BC1020 3
COVER,VENTILATION,LH,F.BLACK 14091 14091-1618-6Z 1
COVER,VENTILATION,RH,F.BLACK 14091A 14091-1619-6Z 1
COVER,LH 14091B 14091-1787 1
COVER,RH 14091C 14091-1788 1
GUARD,FR,LH 55020 55020-0512 1
GUARD,FR,RH 55020A 55020-0513 1
GUARD,RR,LH 55020B 55020-0535 1
GUARD,RR,RH 55020C 55020-0536 1
COWLING,LEG SHIELD,OUT,LH,BLUE 55028 55028-0220-25U 1
COWLING,LEG SHIELD,OUT,RH,BLUE 55028C 55028-0221-25U 1
COWLING,LEG SHIELD,IN,LH,GRAY 55028F 55028-0222-45W 1
COWLING,LEG SHIELD,IN,RH,GRAY 55028I 55028-0223-45W 1
PIN-SNAP,1.2X21.2 554 554DA0600 2
BALL-STEEL,1/4 600 600A0800 2
BOLT,WP,6X20 92001 92001-1460 4
BOLT,FLANGED,8X47 92002 92002-1850 2
NUT,6MM 92015 92015-1602 6
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 2
NUT 92015B 92015-1700 4
RIVET 92039 92039-1283 6
PIN,6X11 92043 92043-092 2
SPRING 92145 92145-1319 2
COLLAR 92152 92152-0295 6
COLLAR,6.2X7.8X14 92152A 92152-0771 2
BOLT,6X16 92153 92153-1215 2
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0266 6
