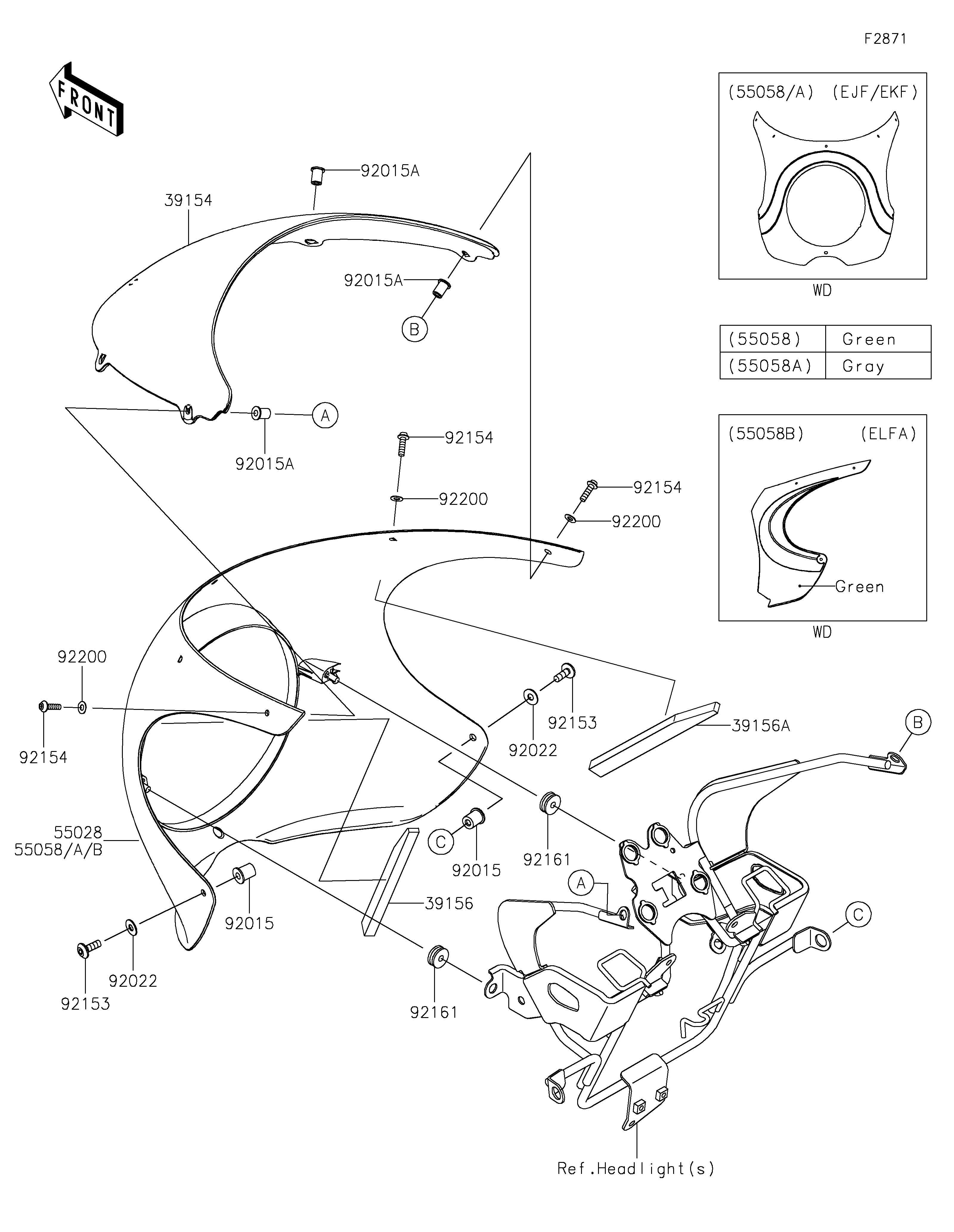

Parts Diagrams |
39154
39156
39156A
55028
55058A
92015
92015
92015A
92015A
92015A
92022
92022
92153
92153
92154
92154
92154
92161
92161
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WINDSHIELD | 39154 | 39154-0374 | 1 | ||
| PAD,15X180X10,LH | 39156 | 39156-2406 | 1 | ||
| PAD,15X180X10,RH | 39156A | 39156-2407 | 1 | ||
| COWLING,UPP,S.C.BLUE | 55028 | 55028-0658-62K | 1 | CN | |
| COWLING,UPP,M.G.GRAY | 55058A | 55058-5444-45W | 1 | ||
| NUT | 92015 | 92015-1700 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 5 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0816 | 2 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-1945 | 5 | ||
| DAMPER,6X20X7.5 | 92161 | 92161-1991 | 2 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 5 |
