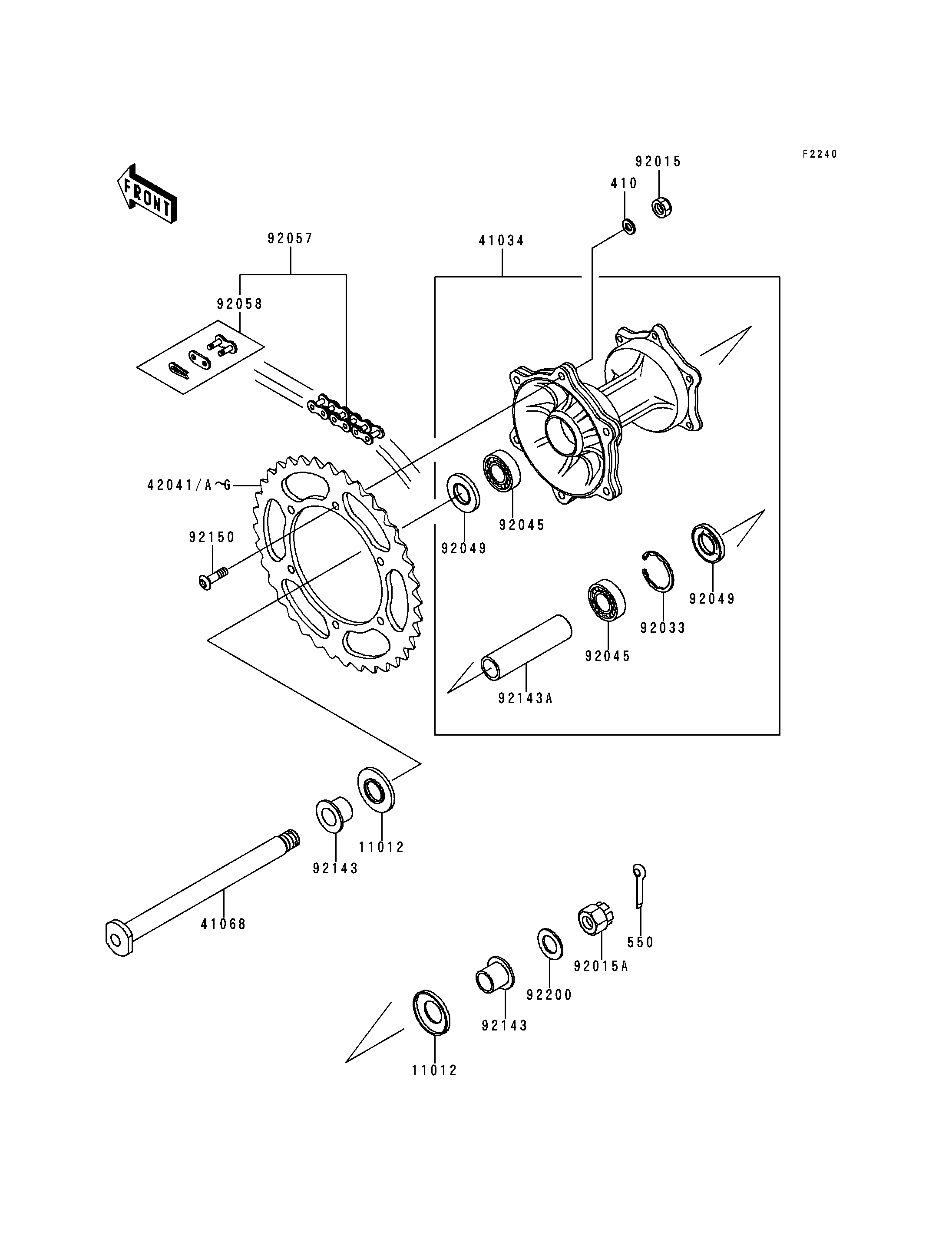

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 6 | ||
| PIN-COTTER,3.0X25 | 550 | 550D3025 | 1 | ||
| CAP,AXLE | 11012 | 11012-1581 | 2 | ||
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1205 | 1 | ||
| AXLE,RR | 41068 | 41068-1343 | 1 | ||
| SPROCKET-HUB,51T,AL | 42041 | 42041-1104 | 1 | (OPTION) | |
| SPROCKET-HUB,50T,AL | 42041A | 42041-1255 | 1 | (OPTION) | |
| SPROCKET-HUB,49T,AL | 42041B | 42041-1256 | 1 | ||
| SPROCKET-HUB,48T,AL | 42041C | 42041-1257 | 1 | (OPTION) | |
| SPROCKET-HUB,47T,AL | 42041D | 42041-1258 | 1 | (OPTION) | |
| SPROCKET-HUB,48T | 42041E | 42041-1383 | 1 | (OPTION) | |
| SPROCKET-HUB,49T | 42041F | 42041-1384 | 1 | (OPTION) | |
| SPROCKET-HUB,50T | 42041G | 42041-1408 | 1 | (OPTION) | |
| NUT,8MM | 92015 | 92015-1432 | 6 | ||
| NUT,CASTLE,18MM | 92015A | 92015-1885 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| BEARING-BALL,6004X8JRLLX2/3A | 92045 | 92045-1239 | 2 | ||
| SEAL-OIL,BJNC2 25425 | 92049 | 92049-1203 | 2 | ||
| CHAIN,DRIVE,DID520DSX112L | 92057 | 92057-1073 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-1068 | 1 | ||
| COLLAR,RR AXLE,L=20 | 92143 | 92143-1356 | 2 | ||
| COLLAR,RR BRAKE DRUM,L=105 | 92143A | 92143-1402 | 1 | ||
| BOLT,SOCKET,8X28 | 92150 | 92150-1196 | 6 | ||
| WASHER,18.5X32X2.3 | 92200 | 92200-1149 | 1 |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,3.0X25 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AXLE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,REAR BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,51T,AL | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,50T,AL | |
| REF # | 42041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,49T,AL | |
| REF # | 42041B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,48T,AL | |
| REF # | 42041C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,47T,AL | |
| REF # | 42041D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,48T | |
| REF # | 42041E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,49T | |
| REF # | 42041F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,50T | |
| REF # | 42041G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,18MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6004X8JRLLX2/3A | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJNC2 25425 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,DID520DSX112L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN,DRIVE | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,L=20 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR BRAKE DRUM,L=105 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X28 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.5X32X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
