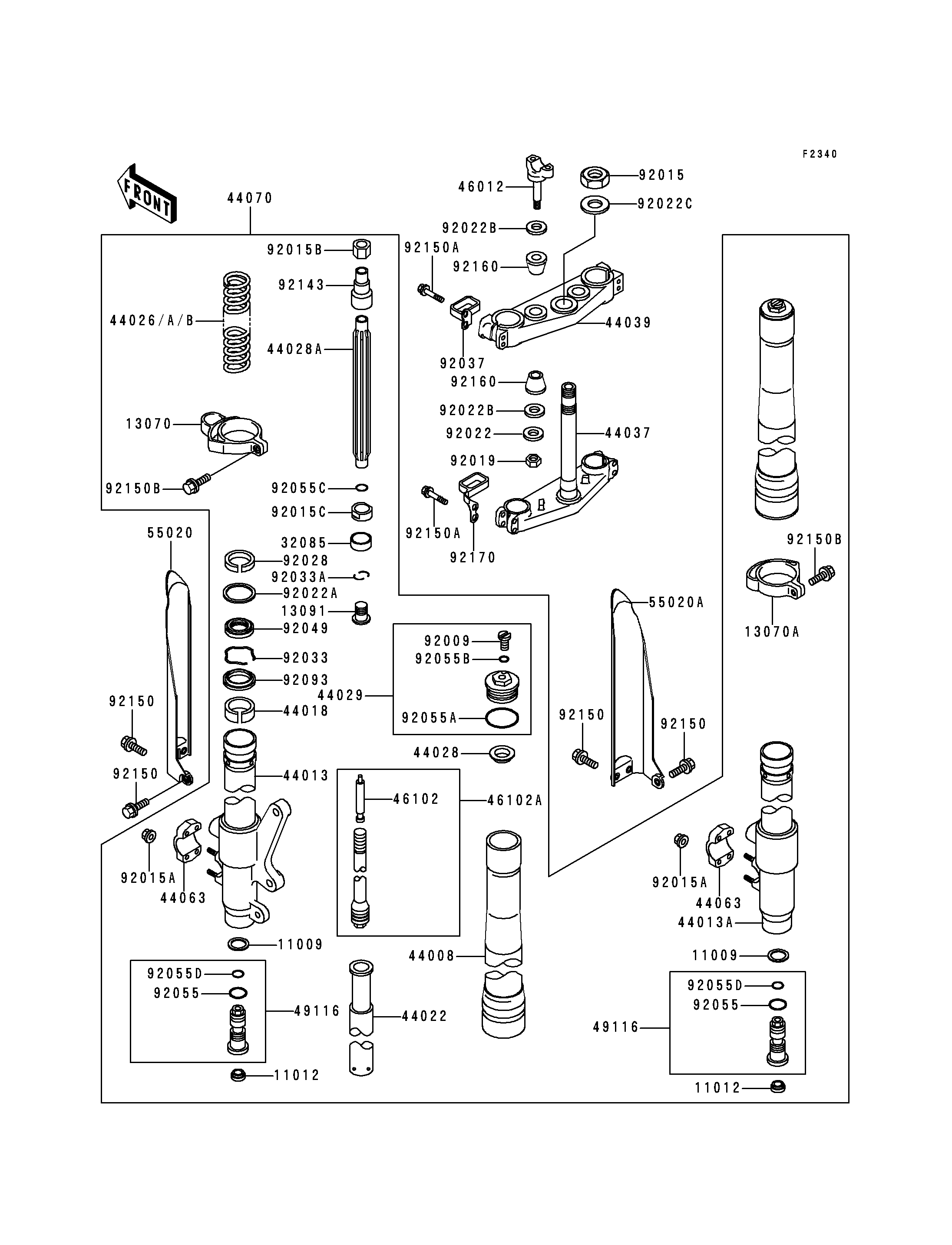

1995 KX250 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1791 2
CAP 11012 11012-1692 2
GUIDE,PROTECTOR,LH 13070 13070-1277 1
GUIDE,PROTECTOR,RH 13070A 13070-1278 1
HOLDER 13091 13091-1651 2
STOPPER 32085 32085-1323 2
PIPE-FORK OUTER,GOLD 44008 44008-1033-14 2
PIPE-FORK INNER,LH 44013 44013-1401 1
PIPE-FORK INNER,RH 44013A 44013-1402 1
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-FORK 44022 44022-1304 2
SPRING-FRONT FORK,K=0.39 44026 44026-1529 2
SPRING-FRONT FORK,K=0.38 44026A 44026-1532 2 (OPTION)
SPRING-FRONT FORK,K=0.40 44026B 44026-1534 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1081 2
GUIDE-FORK SPRING 44028A 44028-1094 2
SEAT-FORK SPRING 44029 44029-1156 2
HOLDER-FORK UNDER 44037 44037-1329 1
HOLDER-FORK UPPER 44039 44039-1225 1
HOLDER-FRONT AXLE 44063 44063-1060 2
DAMPER-ASSY,FORK,GOLD 44070 44070-1375-14 1
HOLDER-HANDLE,LWR 46012 46012-1242 2
ROD,FORK,INNER 46102 46102-1340 2
ROD,FORK,ASSY 46102A 46102-1380 2
VALVE-ASSY,FORK 49116 49116-1133 2
GUARD,FORK,LH,WHITE 55020 55020-1492-RZ 1
GUARD,FORK,RH,WHITE 55020A 55020-1493-RZ 1
SCREW 92009 92009-1568 2
NUT,24MM 92015 92015-1057 1
NUT,FLANGED,6MM 92015A 92015-1078 8
NUT 92015B 92015-1905 2
NUT 92015C 92015-1945 2
NUT,LOCK,10MM 92019 92019-021 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1299 2
WASHER 92022B 92022-1737 4
WASHER,25X36X2.3 92022C 92022-250 1
BUSHING 92028 92028-1670 2
RING-SNAP 92033 92033-1077 2
RING-SNAP 92033A 92033-1271 4
CLAMP 92037 92037-1627 1
SEAL-OIL 92049 92049-1373 2
RING-O,FORK 92055 92055-1062 2
RING-O,FORK,AIR TUBE 92055A 92055-1333 2
RING-O 92055B 92055-1441 2
RING-O 92055C 92055-1442 2
RING-O,FORK VALVE 92055D 92055-1513 2
SEAL,FORK OUTER TUBE 92093 92093-1342 2
COLLAR,FORK 92143 92143-1690 2
BOLT,6X12 92150 92150-1435 6
BOLT,FLANGED,8X40 92150A 92150-1516 8
BOLT,5X16 92150B 92150-1802 2
DAMPER,HANDLE HOLDER 92160 92160-1544 4
CLAMP 92170 92170-1088 1
