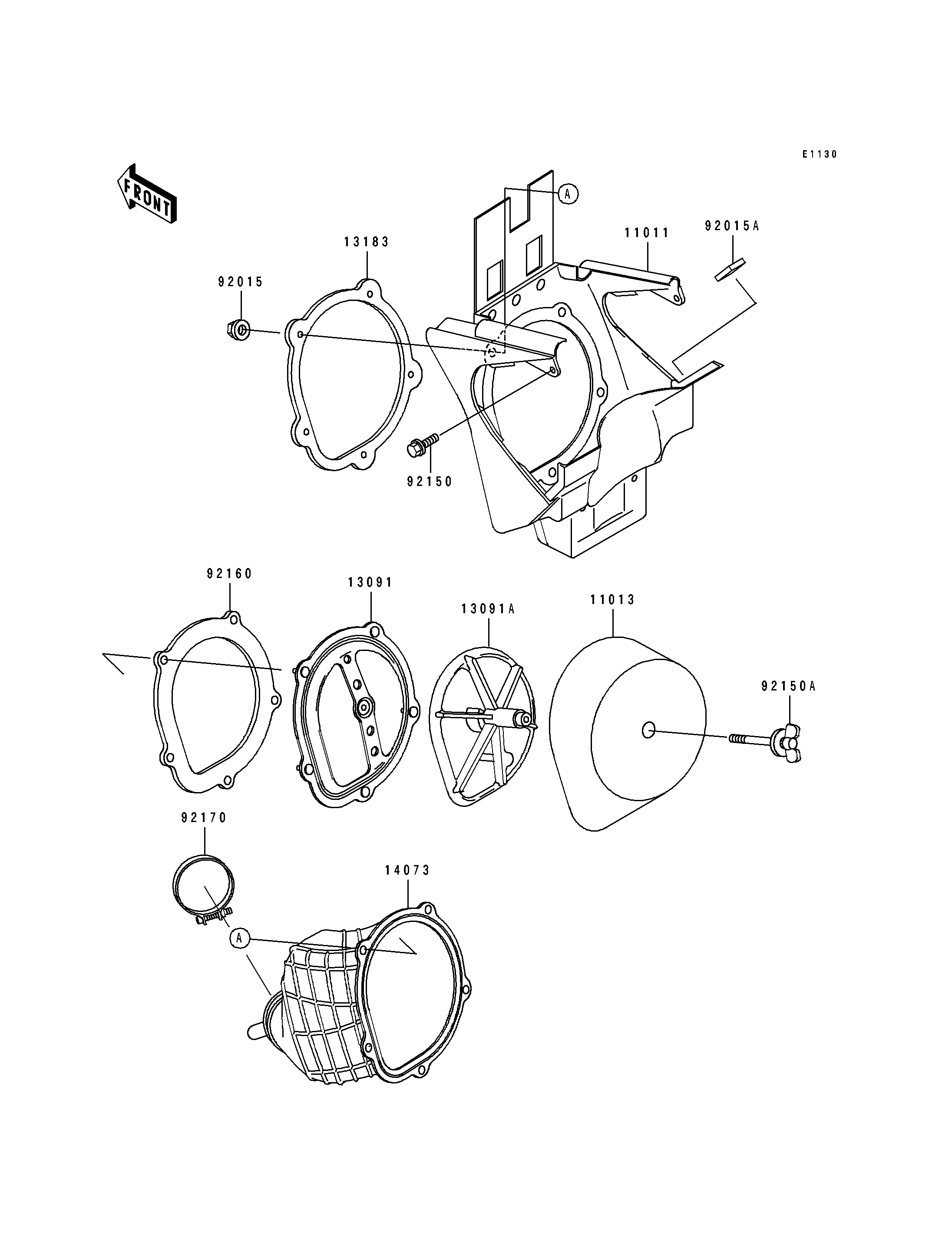

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,S.GRAY 11011 11011-1472-RG 1
ELEMENT-AIR FILTER 11013 11013-1264 1
HOLDER 13091 13091-1664 1
HOLDER,ELEMENT 13091A 13091-1708 1
PLATE,DUCT FITTING 13183 13183-1530 1
DUCT 14073 14073-1649 1
NUT,FLANGED,5MM 92015 92015-1259 5
NUT 92015A 92015-1918 2
BOLT,FLANGED,6X16 92150 92150-1506 2
BOLT,WING 92150A 92150-1565 1
DAMPER,DUCT SEAL 92160 92160-1196 1
CLAMP,AIR FILTER 92170 92170-1464 1
