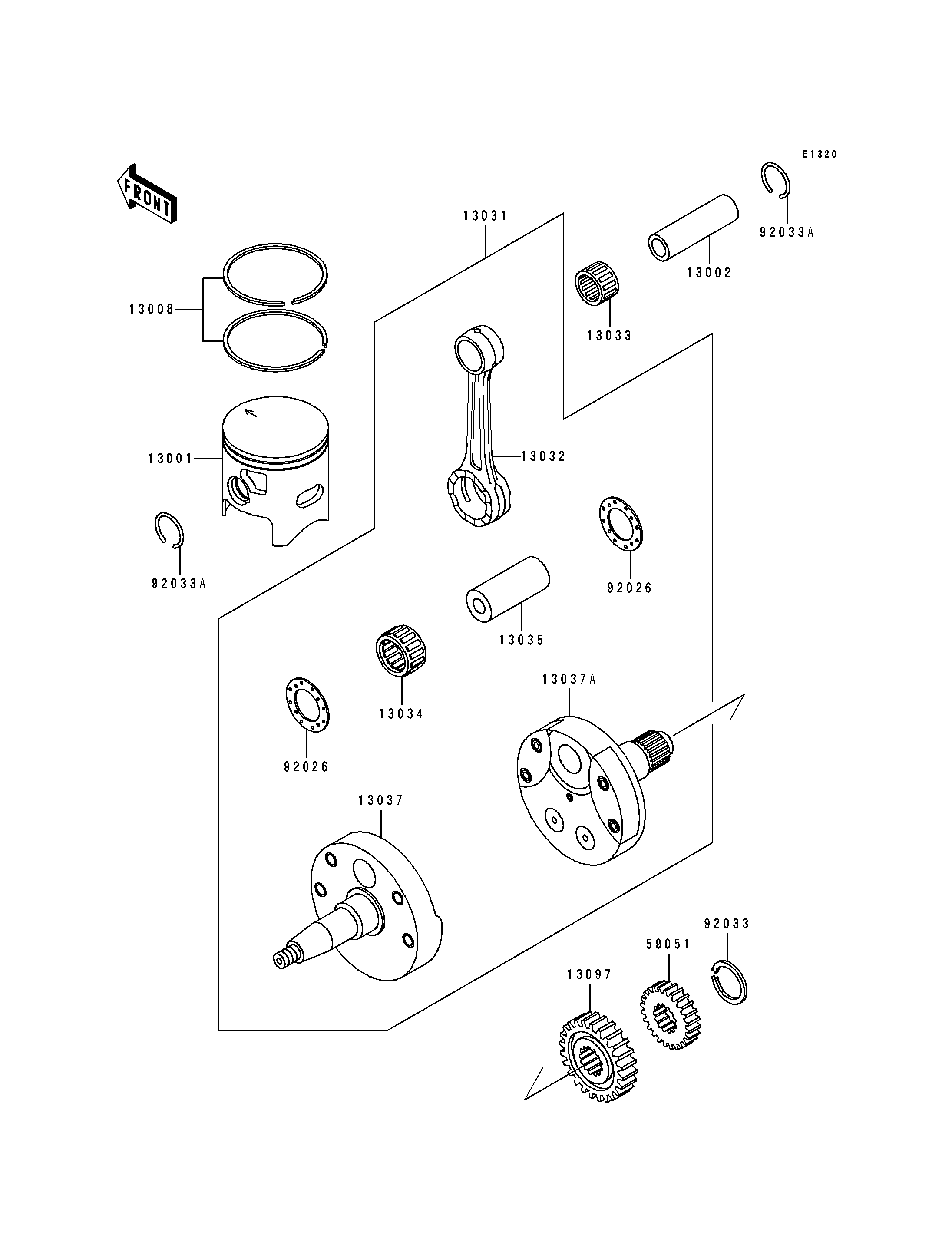

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-1470 1
PIN-PISTON 13002 13002-1098 1
RING-SET-PISTON 13008 13008-1173 1
CRANKSHAFT-COMP 13031 13031-1415 1
ROD-CONNECTING 13032 13032-1224 1
BEARING-NEEDLE,KBK18X22X23.8X 13033 13033-1010 1
BEARING-BIG END,B4 13034 13034-1094 1
PIN-CRANK 13035 13035-034 1
CRANKSHAFT,LH 13037 13037-1541 1
CRANKSHAFT,RH 13037A 13037-1543 1
GEAR-PRIMARY SPUR,20T 13097 13097-1308 1
GEAR-SPUR,27T 59051 59051-1248 1
SPACER,24X42X1.6 92026 92026-1241 2
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,PISTON PIN 92033A 92033-1267 2
