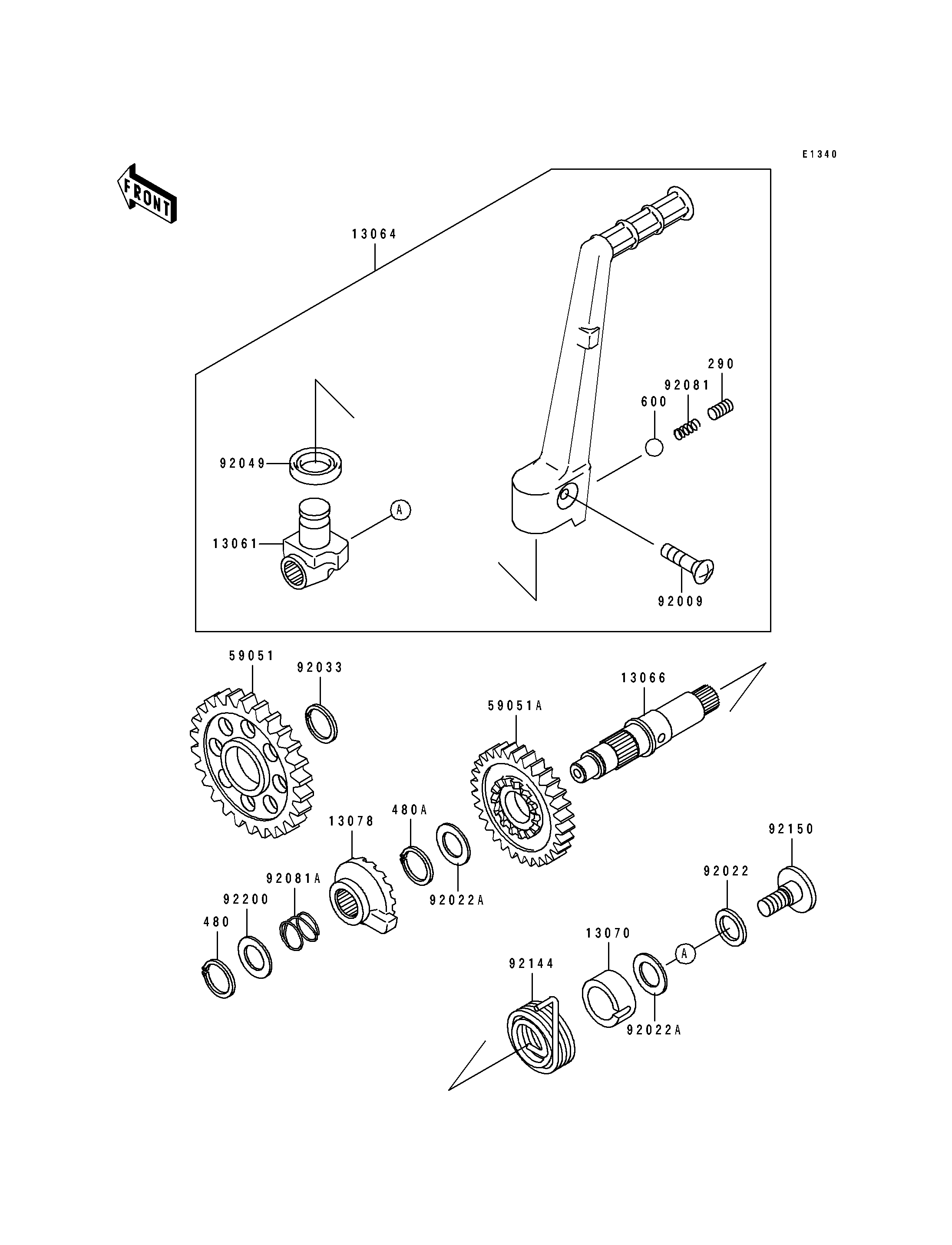

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-SET-SOCKET | 290 | 290P0812 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 1 | ||
| CIRCLIP-TYPE-C,18MM | 480A | 480J1800 | 1 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
| BOSS,KICK PEDAL | 13061 | 13061-1491 | 1 | ||
| LEVER-ASSY-KICK,KICK PEDAL | 13064 | 13064-1178 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1091 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-1063 | 1 | ||
| RATCHET | 13078 | 13078-1063 | 1 | ||
| GEAR,KICKSTARTER IDLE,26T | 59051 | 59051-1271 | 1 | ||
| GEAR-SPUR,KICK STARTER | 59051A | 59051-1310 | 1 | ||
| SCREW,6X30 | 92009 | 92009-1590 | 1 | ||
| WASHER | 92022 | 92022-1944 | 1 | ||
| WASHER,18.3X22X0.5 | 92022A | 92022-271 | 2 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
| SEAL-OIL,KICK PEDAL | 92049 | 92049-1387 | 1 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92144 | 92144-1076 | 1 | ||
| BOLT,KICK PEDAL | 92150 | 92150-1800 | 1 | ||
| WASHER,KICKSHAFT | 92200 | 92200-1209 | 1 |
