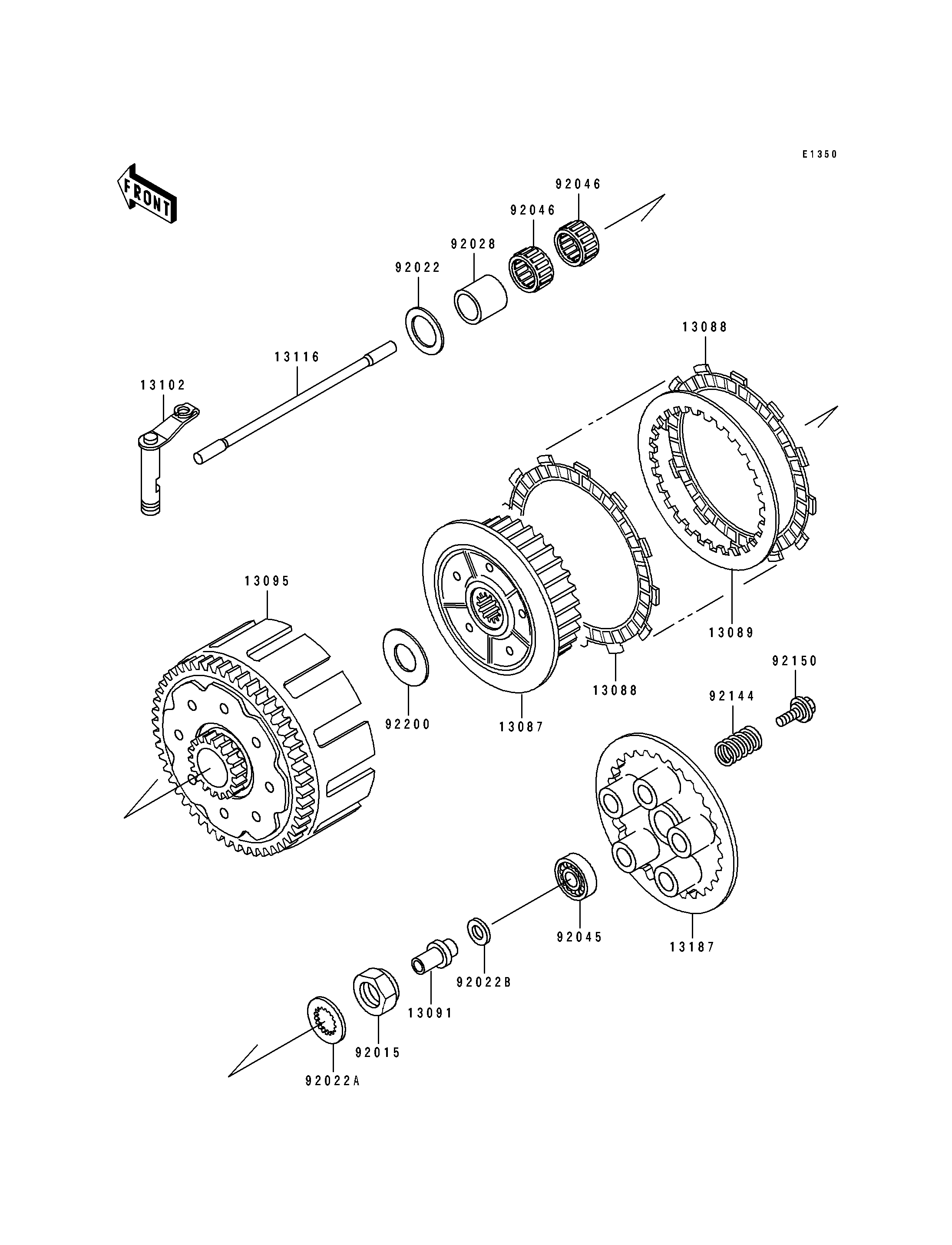

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1168 1
PLATE-FRICTION 13088 13088-1105 8
PLATE-CLUTCH 13089 13089-1066 7
HOLDER 13091 13091-1762 1
HOUSING-COMP-CLUTCH 13095 13095-1343 1
RELEASE-COMP-CLUTCH 13102 13102-1137 1
ROD-PUSH 13116 13116-1156 1
PLATE-CLUTCH OPERATING 13187 13187-1012 1
NUT,20MM 92015 92015-1725 1
WASHER,25.5X38X2 92022 92022-1075 1
WASHER 92022A 92022-1942 1
WASHER,12.3X20X0.5 92022B 92022-269 1
BUSHING 92028 92028-1702 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,K30X34X13.8 92046 92046-1222 2
SPRING,CLUTCH 92144 92144-1351 5
BOLT,6X22 92150 92150-1489 5
WASHER,22.5X47X2 92200 92200-1143 1
