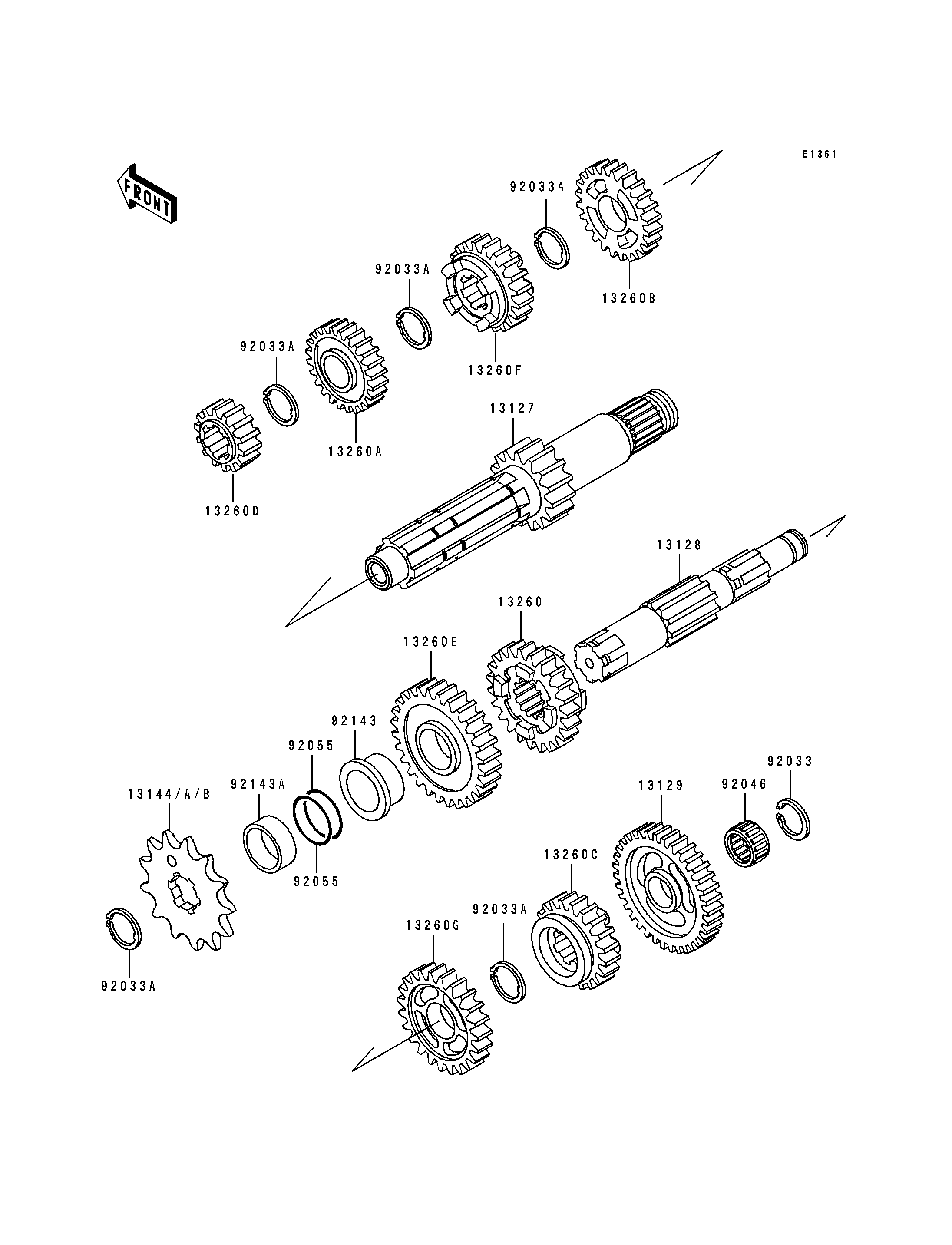

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-1227 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1215 | 1 | ||
| GEAR,OUTPUT LOW,32T | 13129 | 13129-1160 | 1 | ||
| SPROCKET-OUTPUT,15T | 13144 | 13144-069 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,14T | 13144A | 13144-1005 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,13T | 13144B | 13144-1027 | 1 | ||
| GEAR,OUTPUT 4TH,25T | 13260 | 13260-1109 | 1 | ||
| GEAR,INPUT 4TH,22T | 13260A | 13260-1367 | 1 | ||
| GEAR,INPUT TOP,24T | 13260B | 13260-1368 | 1 | ||
| GEAR,OUTPUT TOP,24T | 13260C | 13260-1607 | 1 | ||
| GEAR,INPUT 2ND,16T | 13260D | 13260-1628 | 1 | ||
| GEAR,OUTPUT 2ND,26T | 13260E | 13260-1629 | 1 | ||
| GEAR,INPUT 3RD,18T | 13260F | 13260-1630 | 1 | ||
| GEAR,OUTPUT 3RD,24T | 13260G | 13260-1631 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
| RING-SNAP,25MM | 92033A | 92033-1089 | 5 | ||
| BEARING-NEEDLE,KT202614 | 92046 | 92046-1170 | 1 | ||
| RING-O | 92055 | 92055-035 | 2 | ||
| COLLAR | 92143 | 92143-1361 | 1 | ||
| COLLAR,SPROCKET | 92143A | 92143-1441 | 1 |
