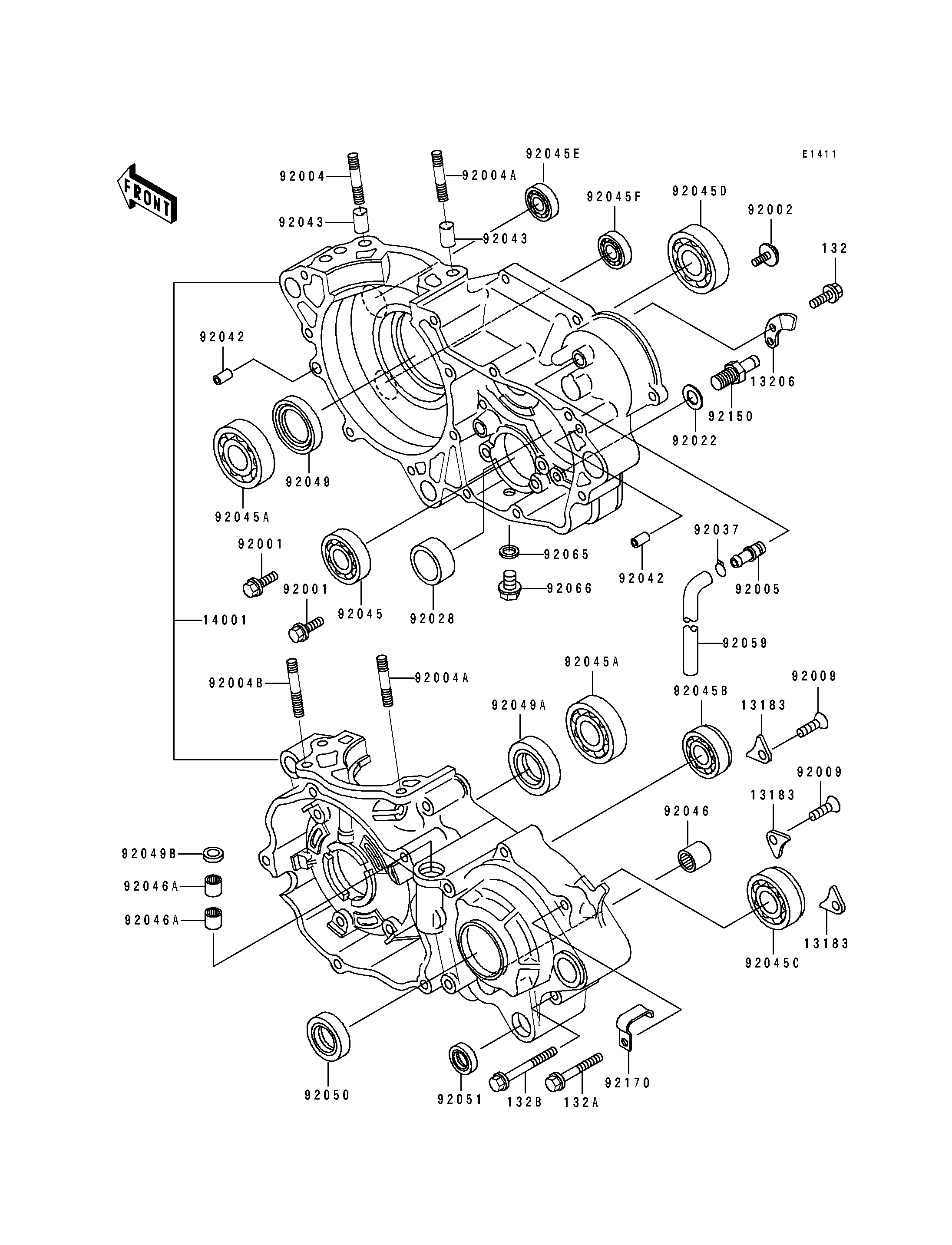

1997 KX250 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 11
BOLT-FLANGED-SMALL 132B 132G0675 1
PLATE 13183 13183-1182 3
GUIDE-KICK 13206 13206-1062 1
SET-CRANKCASE 14001 14001-1219 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
BOLT,6X16 92002 92002-1659 2
STUD,10X53 92004 92004-1165 1
STUD,10X66 92004A 92004-1203 2
STUD,10X47 92004B 92004-1223 1
FITTING,BREATHER 92005 92005-1210 1
SCREW,6X10 92009 92009-1563 3
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
BUSHING,26X35X14 92028 92028-131 1
CLAMP 92037 92037-1610 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,11X14X12.3 92043 92043-1266 2
BEARING-BALL,6905Z 92045 92045-1058 1
BEARING-BALL,TMB3/28JR2C3 92045A 92045-1183 2
BEARING-BALL 92045B 92045-1233 1
BEARING-BALL 92045C 92045-1240 1
BEARING-BALL,63/22/25X7 92045D 92045-1300 1
BEARING-BALL,608MC3 92045E 92045-1305 1
BEARING-BALL 92045F 92045-1345 1
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
BEARING-NEEDLE,HK1210 92046A 92046-1010 2
SEAL-OIL,TCJ25457 92049 92049-1051 1
SEAL-OIL,TCJ20407 92049A 92049-1052 1
SEAL-OIL 92049B 92049-1262 1
SEAL-OIL,TB3040 92050 92050-033 1
SEAL-OIL,TB13225.5 92051 92051-005 1
TUBE,6X9X360 92059 92059-103 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
BOLT,RETURN SPRING 92150 92150-1803 1
CLAMP 92170 92170-1555 1
