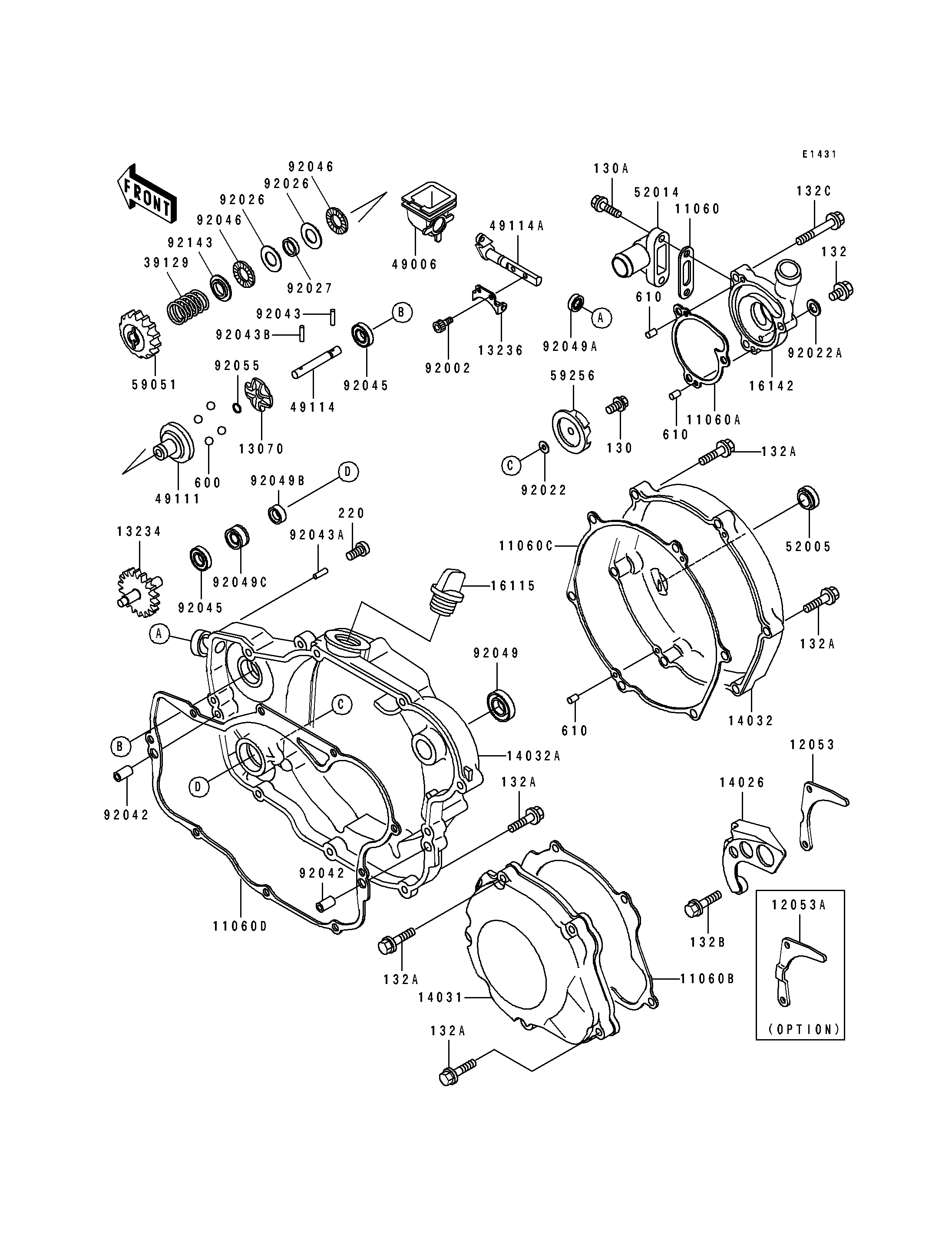

1997 KX250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11060 11060-1183 1
GASKET,PUMP COVER 11060A 11060-1184 1
GASKET,GENERATOR COVER 11060B 11060-1352 1
GASKET,CLUTCH COVER,OUT 11060C 11060-1494 1
GASKET,CLUTCH COVER,IN 11060D 11060-1749 1
GUIDE-CHAIN 12053 12053-1382 1
GUIDE-CHAIN 12053A 12053-1387 1 (OPTION)
GUIDE 13070 13070-1206 1
SHAFT-COMP 13234 13234-1096 1
LEVER-COMP,GOVERNOR 13236 13236-1266 1
COVER-CHAIN 14026 14026-1174 1
COVER-GENERATOR 14031 14031-1283 1
COVER-CLUTCH,OUT 14032 14032-1391 1
COVER-CLUTCH 14032A 14032-1443 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP 16142 16142-1117 1
SPRING-GOVERNOR 39129 39129-1018 1
BOOT 49006 49006-1277 1
HOLDER-GOVERNOR WEIGHT 49111 49111-1056 1
SHAFT-GOVERNOR 49114 49114-1074 1
SHAFT-GOVERNOR 49114A 49114-1089 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-1082 1
GEAR-SPUR 59051 59051-1277 1
IMPELLER 59256 59256-1065 1
BOLT,SOCKET,4X8 92002 92002-1403 2
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,6.2X11X1 92022A 92022-304 1
SPACER,15X28X1 92026 92026-1238 2
COLLAR,15.2X17X4 92027 92027-1839 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,3X12.8 92043 92043-1256 1
PIN,2X9.8 92043A 92043-1293 1
PIN,3X19.8 92043B 92043-1319 1
BEARING-BALL,608MC3 92045 92045-1305 2
BEARING-NEEDLE 92046 92046-1252 2
SEAL-OIL,SB18307 92049 92049-013 1
SEAL-OIL,SDO8144 92049A 92049-1207 1
SEAL-OIL,MH8X18X3.5-A 92049B 92049-1359 1
BOLT-FLANGED 130 130P0514 1
BOLT-FLANGED 130A 130P0520 2
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 21
BOLT-FLANGED-SMALL 132B 132G0630 2
BOLT-FLANGED-SMALL 132C 132G0665 1
SCREW-PAN-CROS 220 220B0306 1
BALL-STEEL,3/8" 600 600A1200 4
ROLLER,4X8 610 610A0408 4
SEAL-OIL,MHSD8X18X10J-1 92049C 92049-1366 1
RING-O,5.5X1.5 92055 92055-1343 1
COLLAR 92143 92143-1593 1
