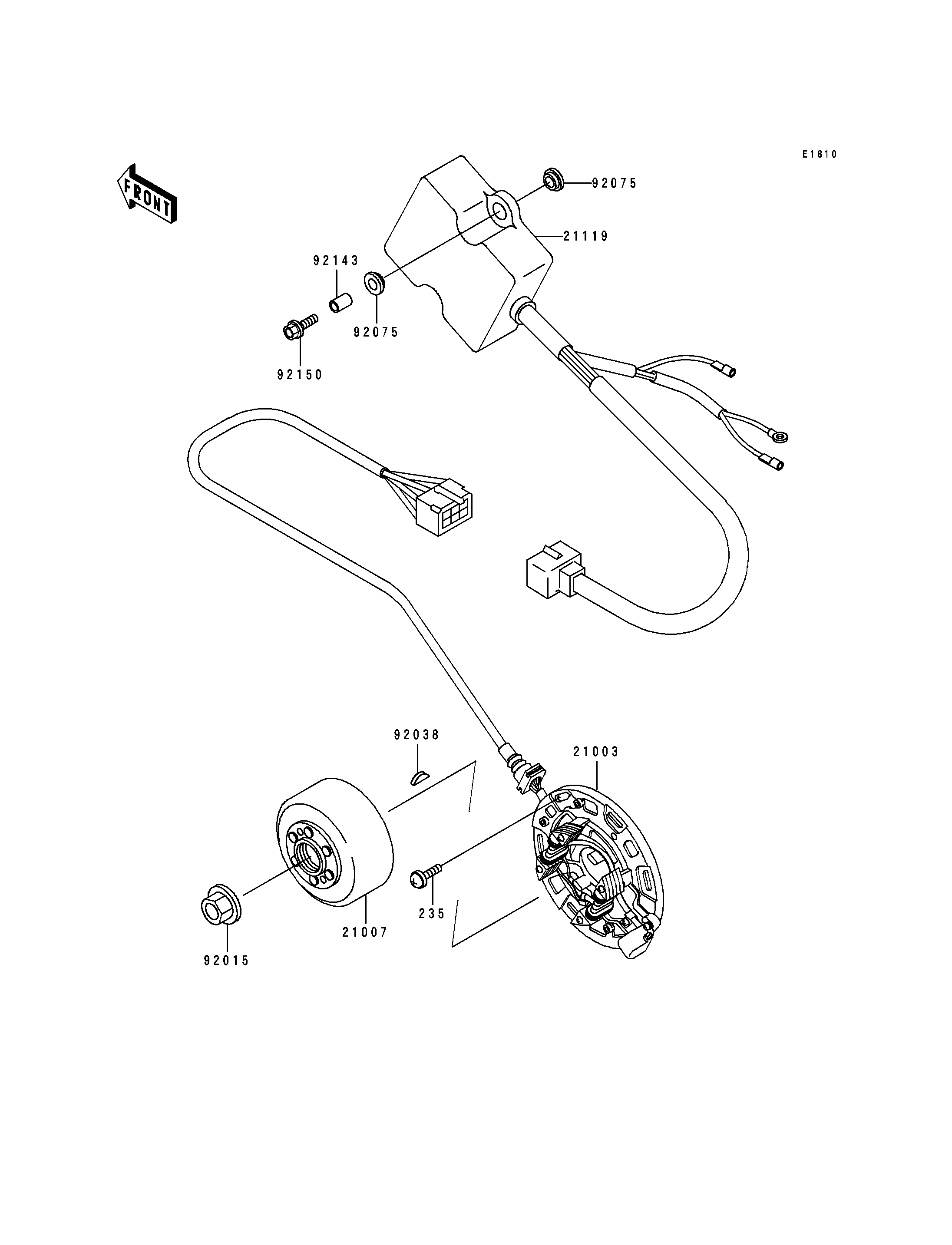

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS 235 235B0616 3
STATOR 21003 21003-1293 1
ROTOR,MAGNETO 21007 21007-1234 1
IGNITER 21119 21119-1492 1
NUT,FLANGED,12MM 92015 92015-1156 1
KEY,WOODRUFF 92038 92038-001 1
DAMPER,8MM 92075 92075-1138 4
COLLAR,6X8.5X13 92143 92143-3715 2
BOLT,FLANGED,6X25 92150 92150-1507 2
