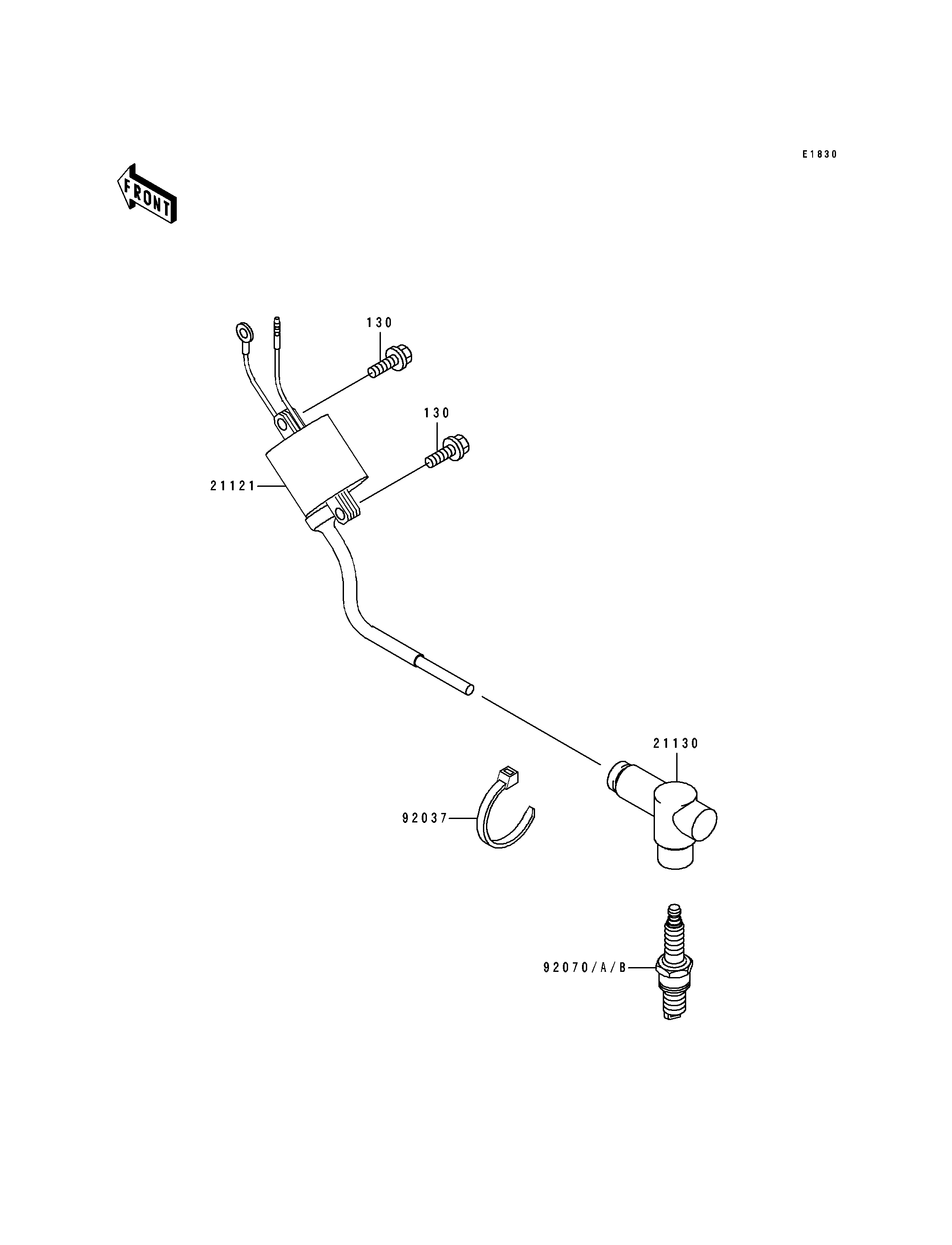

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0520 2
COIL-IGNITION 21121 21121-1248 1
CAP-SPARK PLUG 21130 21130-1073 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,R6252E-9(NGK) 92070 92070-1238 1 (OPTION)
PLUG-SPARK,R6252E-8(NGK) 92070A 92070-1243 1 (OPTION)
PLUG-SPARK,BR7EVX(NGK) 92070B 92070-1249 1 (OPTION)
